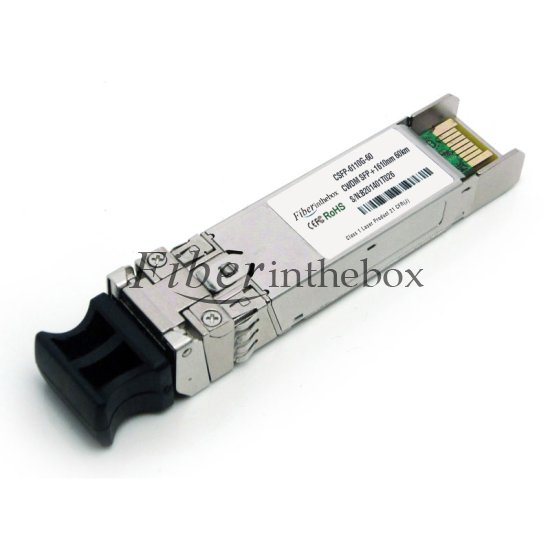

CSFP-10GXX-60-xx
The CSFP-10GXX-60-xx 1470-1610nm series optical transceiver is designed for fiber communications application such as 10G Ethernet (10GBASE-ZR/ZW), which fully compliant with the specification of SFP+ MSA SFF-8431.This module is designed for single mode fiber and operates at a nominal wavelength of CWDM wavelength. There are ten center wavelengths available from 1470nm to 1610nm, with each step 20nm.The module is with the SFP+ connector to allow hot plug capability. Single 3.3V power supply is needed. The optical output can be disabled by LVTTL logic high-level input of TX_DIS. Loss of signal (RX_LOS) output is provided to indicate the loss of an input optical signal of receiver.This module provides digital diagnostic functions via a 2-wire serial interface as defined by the SFF-8472.
Key Features
Suppo s 9.95Gb/s to 11.1Gb/s bit rates Hot-Pluggable SFP+ footprint8-Wavelength CWDM DFB Transmitter from 1470nm to 1610nm, with step 20nmDuplex LC connector Power Dissipation < 2.5WCompliant with SFP+ MSA Specification SFF-8431Build-in digital diagnostic functionsCompliant with SFF-8472 MSACase operation temperature range 0? to 70?
Applications
10G EthernetOther Optical Link
Ordering Information
| Pa No. | Data Rate (Gbps) | Wavelength (nm) | TX Power (dBm) | Re Sens. (dBm) | Transmission Distance | Fiber Type | Connector Type | Temp. Range | Digital Diagnostics |
| CSFP-10GXX-10-xx | 9.95~11.1G | 1270 ~1330 | -5~0 | ?-15 | 10km | SMF | LC | 0~70? | Yes |
| CSFP-10GXX-10-xx | 9.95~11.1G | 1350 ~1610 | -5~0 | ?-15 | 10km | SMF | LC | 0~70? | Yes |
| CSFP-10GXX-20-xx | 9.95~11.1G | 1270 ~1330 | -5~0 | ?-15 | 20km | SMF | LC | 0~70? | Yes |
| CSFP-10GXX-20-xx | 9.95~11.1G | 1350 ~1450 | -5~0 | ?-15 | 20km | SMF | LC | 0~70? | Yes |
| CSFP-10GXX-40-xx | 9.95~11.1G | 1270 ~1450 | -2~3 | ?-16 | 40km | SMF | LC | 0~70? | Yes |
| CSFP-10GXX-40-xx | 9.95~11.1G | 1470 ~1610 | -1~4 | ?-15.8 | 40km | SMF | LC | 0~70? | Yes |
| CSFP-10GXX-60-xx | 9.95~11.1G | 1270 ~1450 | - | - | 60km | SMF | LC | 0~70? | Yes |
| CSFP-10GXX-60-xx | 9.95~11.1G | 1470 ~1610 | - | - | 60km | SMF | LC | 0~70? | Yes |
| CSFP-10GXX-80-xx | 9.95~11.1G | 1470 ~1610 | 0~4 | ?-23 | 80km | SMF | LC | 0~70? | Yes |
Notes XX means CWDM wavelength (27 = 1270nm, 29 =1290nm, 31 = 1310nm, 61 = 1610nm, etc., with step 20nm) xx means compatible brand. (For example: CO= Cisco, JU=Juniper, FD=Foundry, EX=Extreme, NE=Netgear,etc. The two characters are sho for compatible brand.)
Packaging
Antistatic bag Packed on pallets in a box(Default Customer Options) Specific Labels as Request Seperate white Box for each transceiver
OEM and ODM
Combining our extensive design and engineering capability in optical transceiver industry, with our competitive advantages from integrated manufacturing capability, internal supply chain, and cost competitive and scalable operation infrastructure, Fiberinthebox provides OEM, ODM, and contract manufacturing service to world leading customers with our manufacturing facilities in China.We are also mainly engaged in providing complete sets of optoelectronic device solutions to gain more brand extensions and influence for Fiberinthebox in the world. OEM/ODM order is availableWe can supply CSFP-10GXX-60-xx according to your requirements, and design CSFP-10GXX-60-xx label and packaging for your company.We welcome any inquiry for customized CWDM SFP+ optical transceiver.
Order Procedure
Please contact us with any special requirements you may have, we can help you create a custom solution to meet almost any application. Our engineer will review the project and provide a quotation within 1-2 business days.
a. Email ( sales@fiberinthebox.com ) a rough sketch to a detailed drawing.
b. Our engineer will review the project and provide a quotation within 24 hours.
c. We can arrange production as low as 1 piece and as high as 1,000 pieces in 1~4 business days once an order is placed.
a. Email ( sales@fiberinthebox.com ) a rough sketch to a detailed drawing.
b. Our engineer will review the project and provide a quotation within 24 hours.
c. We can arrange production as low as 1 piece and as high as 1,000 pieces in 1~4 business days once an order is placed.
Our Factory
-
Production Environment -
Production Environment -
Device Assembly -
Device Assembly -
Standardized Production Line -
Standardized Production Line -
Environment Testing -
Environment Testing -
End Product Testing -
Optic Module Transmission Distance Testing -
Compatible Test -
Brand Compatibility Testing
Shipment
International Express: Fedex, DHL, UPS, TNT and EMS.If you have another preferred carrier, please notify us in advance.
FedEx Overnight: It will take 1-3 business days (weekends and holidays excepted) for delivery.
DHL: It will take 2-4 business days (weekends and holidays excepted) for delivery. For Spain, Italy, Brazil and some other countries, items will take longer time to arrive due to customs clearance period.
FedEx Overnight: It will take 1-3 business days (weekends and holidays excepted) for delivery.
DHL: It will take 2-4 business days (weekends and holidays excepted) for delivery. For Spain, Italy, Brazil and some other countries, items will take longer time to arrive due to customs clearance period.
Save Cost By Buying 10G CWDM SFP+ From Original Manufacturer Fiberinthebox Directly.
Fiberinthebox is an professional manufacturer & supplier of 10G CWDM SFP+ transceivers. All of our 10G CWDM SFP+ transceivers are tested in-house prior to shipping to guarantee that they will arrive in perfect physical and working condition. We guarantee 10G CWDM SFP+ transceivers to work in your system and all of our 10G CWDM SFP+ transceivers come with a lifetime advance replacement warranty. If you have questions about 10G CWDM SFP+ optics, please feel free to contact us at sales@fiberinthebox.com .
