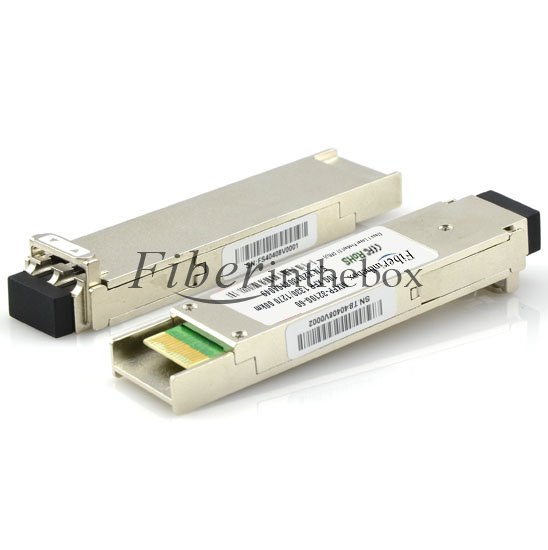

10GBASE 100GHz Tunable DWDM XFP CH17~CH61(1563.86nm~1528.77nm) 80km Single-Mode Optical Transceiver

TDXFP-10GXX-80-xx

Fiberinthebox TDXFP-10GXX-80-xx series optical transceiver is a high performance and cost effective XFP transceiver modules designed for 10G SDH/SONET, 10G Ethe et DWDM fiber optic transmission applications, designed to suppo the full range of C-band ITU-T wavelengths data rates from 9.95Gbps to 11.3Gbs and distances up to 80km. This transceiver contains both transmit and receive sections. An MZM, (C-band tunable laser with a wavelength locker) a laser driver and the suppo ing circuits constitute the transmit path while an APD ROSA, a post amplifier and the suppo ing circuits form the receive section. A microcontroller handles the communications between the module and the host board as well as the control and monitoring functions for both transmit and receive sections. A Clock and Data Recovery circuit (CDR) functions for both transmit and receive.The transceiver module is fully compliant with the XFP MSA standard and can be hot-plugged into the 30-pin XFP connector on the host board.By limiting inrush currents, the device will not disturb the operations of the host board. The high-speed electrical interface is fully compliant with the XFI standard, providing transmission paths for the 10G signals.The series optical transceiver contains a duplex LC connector for the optical interface and a 30-pin connector for the electrical interface.

Key Features

Suppo s 9.95Gb/s to 11.3Gb/s transmissionClient side and Line side loopback functions XFP MSA compliant form factor connectorXFI electrical interface compliant Hot-pluggable XFP footprint80km MZM Tunable TOSASuppo s 100GHz ITU-based channel spacing (C-Band) ,cover 80 ITU-based channelWith wavelength locker function,wavelength precision about 0.02nm-300 to +1600 ps/nm Dispersion ToleranceI2C interface for diagnostic monitoringPower Dissipation < 3.5WRoHS 6 CompliantAverage Output Power:0~4dBmReceiver Sensitivity:-24dBmOperating Case Temperature:Standard: 0°C to 70°C

Applications

DWDM 10Gb/s SONET/SDHDWDM 10Gb/s SONET/SDH with FECDWDM 10Gb/s Ethe et & 10G Fiber ChannelDWDM 10Gb/s Ethe et & 10Gb/sFiber  Channel with FEC

Packaging

Antistatic bag Packed on pallets in a box(Default Customer Options) Specific Labels as Request Seperate white Box for each transceiver

OEM and ODM

Combining our extensive design and engineering capability in optical transceiver industry, with our competitive advantages from integrated manufacturing capability, inte al supply chain, and cost competitive and scalable operation infrastructure, Fiberinthebox provides OEM, ODM, and contract manufacturing service to world leading customers with our manufacturing facilities in China.We are also mainly engaged in providing complete sets of optoelectronic device solutions to gain more brand extensions and influence for Fiberinthebox in the world. OEM/ODM order is available We can supply TDXFP-10GXX-80-xx according to your requirements, and design TDXFP-10GXX-80-xx label and packaging for your company. We welcome any inquiry for customized 10G DWDM XFP optical transceiver.

Order Procedure

Please contact us with any special requirements you may have, we can help you create a custom solution to meet almost any application. Our engineer will review the project and provide a quotation within 1-2 business days.
a. Email ( sales@fiberinthebox.com ) us a rough sketch to a detailed drawing.
b. Our engineer will review the project and provide a quotation within 24 hours.
c. We can arrange production as low as 1 piece and as high as 1,000 pieces in 1~4 business days once an order is placed.



Shipment

Inte ational Express: Fedex, DHL, UPS, TNT and EMS.If you have another preferred carrier, please notify us in advance.
FedEx Ove ight: It will take 1-3 business days (weekends and holidays excepted) for delivery.
DHL: It will take 2-4 business days (weekends and holidays excepted) for delivery. For Spain, Italy, Brazil and some other countries, items will take longer time to arrive due to customs clearance period.

Save Cost By Buying 10G Tunable DWDM XFP From Original Manufacturer Fiberinthebox Directly.

Fiberinthebox is an professional manufacturer & supplier of Tunable DWDM XFP transceivers. All of our Tunable DWDM XFP transceivers are tested in-house prior to shipping to guarantee that they will arrive in perfect physical and working condition. We guarantee Tunable DWDM XFP transceivers to work in your system and all of our Tunable DWDM XFP transceivers come with a lifetime advance replacement warranty. If you have questions about Tunable DWDM XFP optics, please feel free to contact us at sales@fiberinthebox.com .
