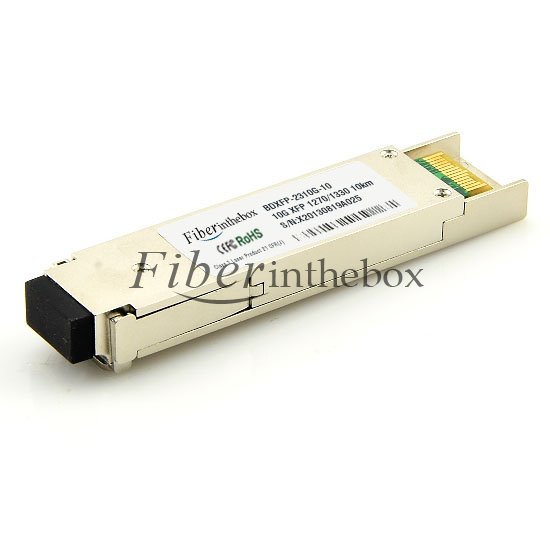

BLXFP-10G23-10-xx
10km BIDI XFP transceivers are designed for bi-directional 10G serial optical data communications such as IEEE 802.3ae 10GBASE-BX by using 1330(1270nm) transmitter and 1270(1330) nm receiver. The transceiver consists of two sections: The transmitter section uses a multiple quantum well 1330(1270) nm DFB laser and is a class 1 laser compliant according to International Safety Standard IEC 60825. The receiver section uses an integrated 1270(1330) nm detector preamplifier (IDP) mounted in an optical header and a limiting post-amplifier IC.Digital diagnostics functions are available via a 2-wire serial interface, as specified in the XFP MSA.
Key Features
Supports 9.95Gb/s to 10.5Gb/s data rates Power budget 9dB at least 1270nm DFB Transmitter/ 1330nm ReceiverAverage Output Power:-5~0dBm Receiver Sensitivity:-14dBm Simplex LC Connector +3.3V power supply only Power dissipation <2W Built-in digital diagnostic functions Case temperature range:Standard: 0~+70? Complaint with XFP MSA Complaint with IEEE 802.3ae 10GBASE-LR/LW Complaint with 10GFC 1200-SM-LL-L
Applications
10GBASE-LR 10G Ethernet at 10.3125Gbps10GBASE-LW 10G Ethernet at 9.953Gbps1200-SM-LL-L 10G Fiber Channel at 10.51875Gbps
Ordering Information
| Part No. | Data Rate (Gbps) | Wavelength (nm) | TX Power (dBm) | Re Sens. (dBm) | Transmission Distance | Fiber Type | Connector Type | Temp. Range | Digital Diagnostics |
| BLXFP-10G23-10-xx | ≤ 10 | 1270/1330 | -5 ? 0 | ? -14 | 10km | SMF | LC | 0~70 ? | Yes |
| BLXFP-10G32-10-xx | ≤ 10 | 1330/1270 | -5 ? 0 | ? -14 | 10km | SMF | LC | 0~70 ? | Yes |
| BLXFP-10G23-20-xx | ≤ 10 | 1270/1330 | -2~3 | ? -14 | 20km | SMF | LC | 0~70 ? | Yes |
| BLXFP-10G32-20-xx | ≤ 10 | 1330/1270 | 1~5 | ? -15 | 20km | SMF | LC | 0~70 ? | Yes |
| BLXFP-10G23-40-xx | ≤ 10 | 1270/1330 | 1~5 | ? -15 | 40km | SMF | LC | 0~70 ? | Yes |
| BLXFP-10G32-40-xx | ≤ 10 | 1330/1270 | 1~5 | ? -15 | 40km | SMF | LC | 0~70 ? | Yes |
| BLXFP-10G23-60-xx | ≤ 10 | 1270/1330 | 1~5 | ? -20 | 60km | SMF | LC | 0~70 ? | Yes |
| BLXFP-10G32-60-xx | ≤ 10 | 1330/1270 | 1~5 | ? -20 | 60km | SMF | LC | 0~70 ? | Yes |
| BLXFP-10G23-80-xx | ≤ 10 | 1270/1330 | 80km | SMF | LC | 0~70 ? | Yes | ||
| BLXFP-10G32-80-xx | ≤ 10 | 1330/1270 | 80km | SMF | LC | 0~70 ? | Yes |
Notesxx means compatible brand. (For example: CO= Cisco, JU=Juniper, FD=Foundry, EX=Extreme, NE=Netgear,etc. The two characters are short for compatible brand.)
Packaging
Antistatic bag Packed on pallets in a box(Default Customer Options) Specific Labels as Request Seperate white Box for each transceiver
OEM and ODM
Combining our extensive design and engineering capability in optical transceiver industry, with our competitive advantages from integrated manufacturing capability, internal supply chain, and cost competitive and scalable operation infrastructure, Fiberinthebox provides OEM, ODM, and contract manufacturing service to world leading customers with our manufacturing facilities in China.We are also mainly engaged in providing complete sets of optoelectronic device solutions to gain more brand extensions and influence for Fiberinthebox in the world. OEM/ODM order is available We can supply BLXFP-10G23-10-xx according to your requirements, and design BLXFP-10G23-10-xx label and packaging for your company. We welcome any inquiry for customized BIDI XFP optical transceiver.
Order Procedure
Please contact us with any special requirements you may have, we can help you create a custom solution to meet almost any application. Our engineer will review the project and provide a quotation within 1-2 business days.
a. Email ( sales@fiberinthebox.com ) us a rough sketch to a detailed drawing.
b. Our engineer will review the project and provide a quotation within 24 hours.
c. We can arrange production as low as 1 piece and as high as 1,000 pieces in 1~4 business days once an order is placed.
a. Email ( sales@fiberinthebox.com ) us a rough sketch to a detailed drawing.
b. Our engineer will review the project and provide a quotation within 24 hours.
c. We can arrange production as low as 1 piece and as high as 1,000 pieces in 1~4 business days once an order is placed.
Details
Shipment
International Express: Fedex, DHL, UPS, TNT and EMS.If you have another preferred carrier, please notify us in advance.
FedEx Overnight: It will take 1-3 business days (weekends and holidays excepted) for delivery.
DHL: It will take 2-4 business days (weekends and holidays excepted) for delivery. For Spain, Italy, Brazil and some other countries, items will take longer time to arrive due to customs clearance period.
FedEx Overnight: It will take 1-3 business days (weekends and holidays excepted) for delivery.
DHL: It will take 2-4 business days (weekends and holidays excepted) for delivery. For Spain, Italy, Brazil and some other countries, items will take longer time to arrive due to customs clearance period.
Save Cost By Buying BIDI XFP From Original Manufacturer Fiberinthebox Directly.
Fiberinthebox is an professional manufacturer & supplier of BIDI XFP transceivers. All of our BIDI XFP transceivers are tested in-house prior to shipping to guarantee that they will arrive in perfect physical and working condition. We guarantee BIDI XFP transceivers to work in your system and all of our BIDI XFP transceivers come with a lifetime advance replacement warranty. If you have questions about BIDI XFP optics, please feel free to contact us at sales@fiberinthebox.com .
