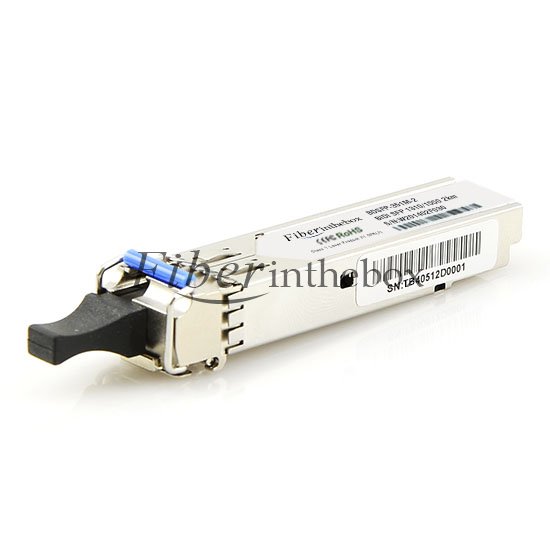

100/155Mbps 1310nmTX/1550nmRX BIDI SFP 80km Single-Mode Optical Transceiver

BXSFP-1M35-80-xx

The SFP BIDI transceivers are small form factor pluggable module for IEEE 802.3ah 100BASE-BX and OC-3/STM-1 SONET/SDH single fiber applications by using 1310nm/1550nm transmitter and 1550 nm/1310nm receiver. It is with the SFP 20-pin connector to allow hot plug capability. The transmitter section uses a multiple quantum well A type/B type laser and is a class 1 laser compliant according to International Safety Standard IEC 60825. The receiver section uses an integrated B type/ A type detector preamplifier (IDP) mounted in an optical header and a limiting post-amplifier IC. The SFP BIDI transceivers are designed to be compliant with SFF-8472 Multi-source Agreement (MSA).

Key Features

Suppo 155Mbps Data Links1310nm DFB Tx/1550nmRx80km with 9/125 µm SMFSingle 3.3V Power Supply and TTL Logic InterfaceHot-Pluggable SFP Footprint SC/LC Connector InterfaceClass 1 FDA and IEC60825-1 Laser Safety CompliantCompliant with SFP MSA SpecificationAverage Output Power:0~+5dBmReceiver Sensitivity:-34dBm

Applications

SONET OC-3 / SDH STM-1WDM Fast Ethernet Links

Ordering Information

Pa No.	Data Rate (Mbps)	Wavelength (nm)	TX Power (dBm)	Re Sens. (dBm)	Transmission Distance	Fiber Type	Connector Type	Temp. Range	Digital Diagnostics
BXSFP-1M35-2-xx	155	1310/1550	-20~-15	?-30	2km	MMF	LC/SC	Com./Ex./Ind.	Yes/NO
BXSFP-1M53-2-xx	155	1550/1310	-20~-15	?-30	2km	MMF	LC/SC	Com./Ex./Ind.	Yes/NO
BXSFP-1M35-10-xx	155	1310/1550			10km	SMF	LC/SC	Com./Ex./Ind.	Yes/NO
BXSFP-1M53-10-xx	155	1550/1310			10km	SMF	LC/SC	Com./Ex./Ind.	Yes/NO
BXSFP-1M35-15-xx	155	1310/1550	-15~-8	?-28	15km	SMF	LC/SC	Com./Ex./Ind.	Yes/NO
BXSFP-1M53-15-xx	155	1550/1310	-15~-8	?-28	15km	SMF	LC/SC	Com./Ex./Ind.	Yes/NO
BXSFP-1M34-20-xx	155	1310/1490			20km	SMF	LC/SC	Com./Ex./Ind.	Yes/NO
BXSFP-1M43-20-xx	155	1490/1310			20km	SMF	LC/SC	Com./Ex./Ind.	Yes/NO
BXSFP-1M35-20-xx	155	1310/1550			20km	SMF	LC/SC	Com./Ex./Ind.	Yes/NO
BXSFP-1M53-20-xx	155	1550/1310			20km	SMF	LC/SC	Com./Ex./Ind.	Yes/NO
BXSFP-1M34-40-xx	155	1310/1490			40km	SMF	LC/SC	Com./Ex./Ind.	Yes/NO
BXSFP-1M43-40-xx	155	1490/1310			40km	SMF	LC/SC	Com./Ex./Ind.	Yes/NO
BXSFP-1M35-40-xx	155	1310/1550	-5~0	?-33	40km	SMF	LC/SC	Com./Ex./Ind.	Yes/NO
BXSFP-1M53-40-xx	155	1550/1310	-8~-3	?-33	40km	SMF	LC/SC	Com./Ex./Ind.	Yes/NO
BXSFP-1M45-60-xx	155	1490/1550			60km	SMF	LC/SC	Com./Ex./Ind.	Yes/NO
BXSFP-1M54-60-xx	155	1550/1490			60km	SMF	LC/SC	Com./Ex./Ind.	Yes/NO
BXSFP-1M45-80-xx	155	1490/1550			80km	SMF	LC/SC	Com./Ex./Ind.	Yes/NO
BXSFP-1M54-80-xx	155	1550/1490			80km	SMF	LC/SC	Com./Ex./Ind.	Yes/NO
BXSFP-1M35-80-xx	155	1310/1550	0~+5	?-34	80km	SMF	LC/SC	Com./Ex./Ind.	Yes/NO
BXSFP-1M53-80-xx	155	1550/1310	0~+5	?-34	80km	SMF	LC/SC	Com./Ex./Ind.	Yes/NO
BXSFP-1M45-120-xx	155	1490/1550			120km	SMF	LC/SC	Com./Ex./Ind.	Yes/NO
BXSFP-1M54-120-xx	155	1550/1490			120km	SMF	LC/SC	Com./Ex./Ind.	Yes/NO

Packaging

Antistatic bag Packed on pallets in a box(Default Customer Options) Specific Labels as Request Seperate white Box for each transceiver

OEM and ODM

Combining our extensive design and engineering capability in optical transceiver industry, with our competitive advantages from integrated manufacturing capability, internal supply chain, and cost competitive and scalable operation infrastructure, Fiberinthebox provides OEM, ODM, and contract manufacturing service to world leading customers with our manufacturing facilities in China.We are also mainly engaged in providing complete sets of optoelectronic device solutions to gain more brand extensions and influence for Fiberinthebox in the world. OEM/ODM order is available We can supply BXSFP-1M35-80-xx according to your requirements, and design BXSFP-1M35-80-xx label and packaging for your company. We welcome any inquiry for customized BIDI SFP optical transceiver.


Shipment

International Express: Fedex, DHL, UPS, TNT and EMS.If you have another preferred carrier, please notify us in advance.
FedEx Overnight: It will take 1-3 business days (weekends and holidays excepted) for delivery.
DHL: It will take 2-4 business days (weekends and holidays excepted) for delivery. For Spain, Italy, Brazil and some other countries, items will take longer time to arrive due to customs clearance period.

Save Cost By Buying BIDI SFP From Original Manufacturer Fiberinthebox Directly.

Fiberinthebox is an professional manufacturer & supplier of BIDI SFP transceivers. All of our BIDI SFP transceivers are tested in-house prior to shipping to guarantee that they will arrive in perfect physical and working condition. We guarantee BIDI SFP transceivers to work in your system and all of our BIDI SFP transceivers come with a lifetime advance replacement warranty. If you have questions about BIDI SFP optics, please feel free to contact us at sales@fiberinthebox.com . If you have questions about BIDI SFP optics, please feel free to contact us at sales@fiberinthebox.com .
