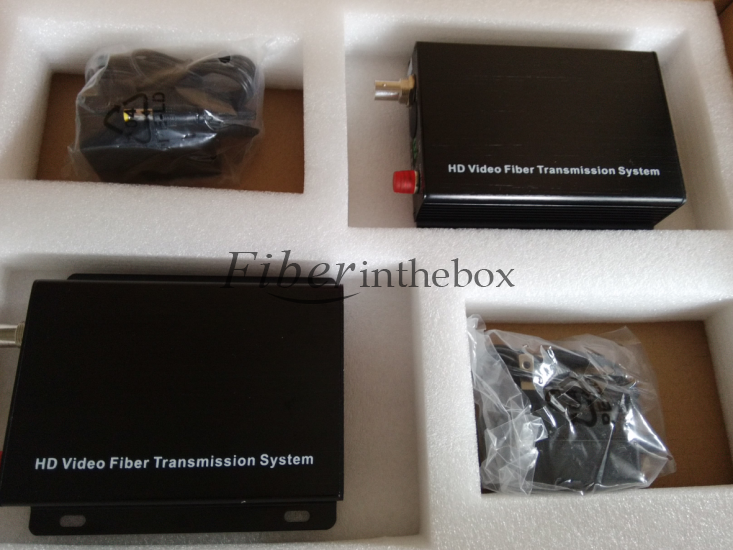

Mini 1 Channel HD-SDI over SM Unidirectional optical fiber transmitter and receiver set FC connector 20km
HD SDI video signal can be transmitted through one single fiber with non-disto ion, high-quality, long-distance transmission.
This series of video to fiber conve er is with Stable performance, clear picture quality,and high Stability for LED Status Indication on the body of device.
The working status of devices can be visually observed.
At the same time,the switch value,voltage,working status and other reverse useful signal information can be controlled by data RS485.This makes our devices more flexible when different customers’ request comes.

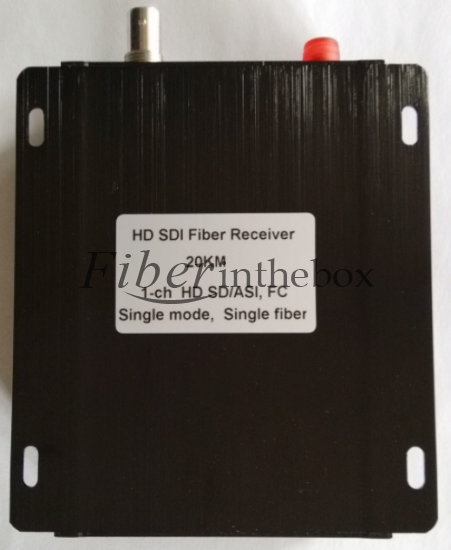

The FS3010M is a mini type HD-SDI Optical Fiber Transmitter and Receiver Set . It could transmit HD/SD-SDI as per SMPTE 424M-2006, 292 and 259, with or without embedded data, as well as DVB-ASI over one single mode or multimode fiber. Signals are equalized and re-clocked prior to fiber optic transmission. The transmitter features a re-clocked and equalized SDI looping out; the receiver features two re-clocked and equalized SDI outputs.
And HD-SDI Unidirectional Fiber Optic Transmitter should be worked with HD-SDI Unidirectional Fiber Optic Receiver.The price on the website is for Pair.
This series of video to fiber conve er is with Stable performance, clear picture quality,and high Stability for LED Status Indication on the body of device.
The working status of devices can be visually observed.
At the same time,the switch value,voltage,working status and other reverse useful signal information can be controlled by data RS485.This makes our devices more flexible when different customers’ request comes.
The FS3010M is a mini type HD-SDI Optical Fiber Transmitter and Receiver Set . It could transmit HD/SD-SDI as per SMPTE 424M-2006, 292 and 259, with or without embedded data, as well as DVB-ASI over one single mode or multimode fiber. Signals are equalized and re-clocked prior to fiber optic transmission. The transmitter features a re-clocked and equalized SDI looping out; the receiver features two re-clocked and equalized SDI outputs.
And HD-SDI Unidirectional Fiber Optic Transmitter should be worked with HD-SDI Unidirectional Fiber Optic Receiver.The price on the website is for Pair.
Features
CRAFT: uncompressed technology VIDEO SPEC: 1080P 30 Hz Transmisson Distance:20km Fiber Type: Single-mode Simplex
1-channel unidirectional HD-SDI and 1-ch reversed RS485/RS232/RS422 data and 1-ch analog audio over one fiber Range from 19.4Mb/s to 1.485Gb/s SMPTE 292M (1.485Gb/s) clock recovery Suppo all SMPTE 295M standard, 143Mb/s - 360Mb/s Suppo SMPTE 305M (SDTi), SMPTE 310M (19.4Mb/s), SMPTE 344M (540Mb/s),M2S and DVB-ASI (270Mb/s) standard Output wavelength 1310nm,1550nm and 16 types of CWDM (ITU-T G.694.2 compliant) 150m automatic cable equalization, all the 1.485 Gb / s rate below(Belden 1694A)LED Status Indication to monitor the working conditions and critical parameters Optional network management system
1-channel unidirectional HD-SDI and 1-ch reversed RS485/RS232/RS422 data and 1-ch analog audio over one fiber Range from 19.4Mb/s to 1.485Gb/s SMPTE 292M (1.485Gb/s) clock recovery Suppo all SMPTE 295M standard, 143Mb/s - 360Mb/s Suppo SMPTE 305M (SDTi), SMPTE 310M (19.4Mb/s), SMPTE 344M (540Mb/s),M2S and DVB-ASI (270Mb/s) standard Output wavelength 1310nm,1550nm and 16 types of CWDM (ITU-T G.694.2 compliant) 150m automatic cable equalization, all the 1.485 Gb / s rate below(Belden 1694A)LED Status Indication to monitor the working conditions and critical parameters Optional network management system
Applications
Remote OB Van/Truck Video Feeds Broadcast Studio Camera Feeds Long-haul Signal Transpo TV station/video conference Lecture Hall Projector Connectivity Medical/Surgical Room Broadcast Building to ing video conference callingSmall corporate campus video links
Product connection diagram
1. Video Interface: High-Definition SDI Video Input (input for signal to be transferred)
2. Fiber-optic video transceiver mark:
2. Fiber-optic video transceiver mark:
T: fiber-optic transmitter
R: fiber-optic receiver
Power Indicator (ON for power-on; OFF for power-off)
TX: rns on upon receiving optical signal; turns off when no optical signal is received
485/232: Turns on when there is reverse data signal output, or turns off when there is not.
4. Data Interface: Reverse Data Output (for transmission of data sent to optical received)
Left: Positive Terminal of Data Output
Middle: Negative Terminal of Data Output
Right: Ea h Terminal (unnecessary for RS485/232 double wires)
Dimension
Make to Order (Extend information)
| Video Interface | Fiber Type | Fiber Po | Data Po | Power Supply | Package |
| 1 CH HD-SDI | Single-mode Simplex |
FC ST SC LC |
1-4 channel reverse RS485/RS232/RS422 | AC110~260V |
stand-alone 1U rack mount |
Note:
1.Date po : For Stand-alone equipment,it could be up to 4 channel,for 1 U Rack Mount packaging ,it available for 8 channel or more. Please contact us by email to sales@fiberinthebox.com if you have any requirement for it.
2.Fiber Po : FC and ST is available,and for SC/LC connector,Fiberinthebox will provide you a corresponding patch cable for connector conversion for free.
1.Date po : For Stand-alone equipment,it could be up to 4 channel,for 1 U Rack Mount packaging ,it available for 8 channel or more. Please contact us by email to sales@fiberinthebox.com if you have any requirement for it.
2.Fiber Po : FC and ST is available,and for SC/LC connector,Fiberinthebox will provide you a corresponding patch cable for connector conversion for free.
Specifications
| Serial TV, BNC Input | Signal standard: SMPTE 292M, 259M, 297M, 305M, 310M, M2S, DVB-ASI, DVB-SSI and Telecom/Datacom |
| rate(19.4Mb/s - 1.485Gb/s) | |
| Input channel: 1 | |
| Reflection loss: >15DB | |
| Equilibrium: 0-150m @1.485Gb/s | |
| Connector: 75Ω BNC | |
| Optics | Channel: 1 |
| Type: single-mode (multimode optional) | |
| Wavelength: 1310nm /1550nm(depends on SFP transceiver) | |
| Trasmission distance (550m-120Km( depend on SFP transceiver)) | |
| Reflection loss: > 15dB | |
| Dithering: < 0.2UI | |
| Connector:LC/ FC/PC (SC/PC optional) | |
| Serial TV, BNC output (EO/OE) | Channel: 1?2 channel optional? |
| Signal level: 800mV nominal | |
| Rise/fall time: 200ps indication | |
| Overshoot: < 10% amplitude | |
| Reflection loss: >15dB | |
| Dithering: < 0.2UI | |
| Connector: 75Ω BNC | |
| Data | Channel: 1 |
| Data format: RS-485/422/RS232 (full/half duplex) and support NRZ, RZI and Manchester | |
| Data rate: DC to 300 Kb/s | |
| Mode: Full/half duplex | |
| Connector: wire connecting terminal | |
| Power and environmental indication | Operating temperature: -40°C~+50°C |
| Pressure: 1A@12VDC | |
| Power: 12 W | |
| EMI/RFI: meet FCC Part 15 Class A, EU EMC standard | |
| Average time trouble-free: >100000 hours | |
