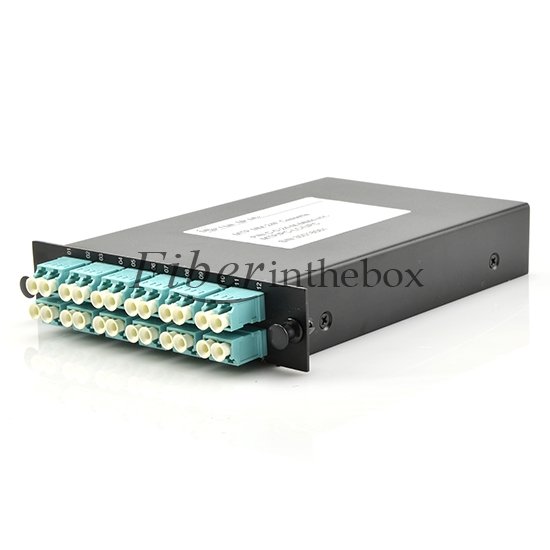

24 Fibers, MPO to LC, 50/125 Mulitmode OM2 Fiber, 24 Standard, LGX - MPO Cassette Panel
Fiberinthebox’s MPO Cassette Modules provide secure transition between MPO and LC,SC,ST or FC discrete connectors with two types.
The MPO modules are fitted with 12 or 24 fibers and have LC, SC adapters on the front side and MPO at the rear.
 |
 |
| Type A: Standard | Type B: Irregular shape |
Features
High performance zirconia sleeve adapters. Rapid deployment Factory terminated modular system saves installation and reconfiguration time during moves, adds and changes. MPO interface MPO components feature superior optical and mechanical prope ies. Optimized performance Low loss MPO Elite, discrete Premium connectors and OM4 fiber assures low inse ion losses and power penalties in tight power budget, high-speed network environments. High density 12 or 24 fiber cassettes can be mounted in 1U scaling up to 72 or in 4U scaling up to 288 discrete connectors. Reliability 100% tested - combination of high quality components and manufacturing quality control guarantees product to the highest standards.
Application
Data centers LAN, WAN and SAN Interoffice cross-connects Campus environments
Mechanical Drawing:
 |
 |
| 1U slide and tilt panel - holds up to 3 cassettes (72 fibers) | MPO Cassette housing in 4U Rack mount |
MPO Cassette Structure
 |
 |
| MPO cable connect with MPO Cassette | MPO Harness cable housing in MPO Cassette |
Specifications
| Connector requirements | |||
| Multimode | Single mode | ||
| IL | MPO |
Single max:0.35dB(L) Single max:0.60dB(G) |
Single max:0.35dB(L) Single max:0.75dB(G) |
| LC |
max:0.10dB(L) max:0.15dB(G) |
MAX:0.3dB | |
| RL | MPO | >20dB | >60dB(8°Angle Polish) |
| LC | >30dB |
>50dB(UPC) >60dB(APC) |
|
| Mechanical | MPO | <0.2dB,200times insertion | |
| LC | <0.2dB,200times insertion | ||
| Environmental | Working Temp. | -20~ +60? | |
| Storage Temp. | -40~ +70? | ||
| Install Temp | -5~ +50? | ||
Order Information
| Order Information | Packaging | ||||
| Mode Type | Fiber Standard | Fiber Connector | Fiber counts | Polish Type |
1. MPO-FC/SC/ST/LC Fiber Optic Cable ( The type of fiber mode according to your choice MTP/MPO Cassettes ) 2. FC/SC/LC/ST Fiber Adapter 3. MPO/MTP Fiber Adapter 4. LGX box |
| OM4 |
12 Fiber Standard 24 Fiber Standard |
MPO-FC ( 12 fiber available ) MPO-SC (12 fiber available ) MPO-LC (12&24fiber available ) MPO-ST (12 fiber available ) |
12 Fibers 24 Fibers |
UPC APC | |
| OM3 | |||||
| OS1/2 | |||||
| OM2 | |||||
| OM1 | |||||
