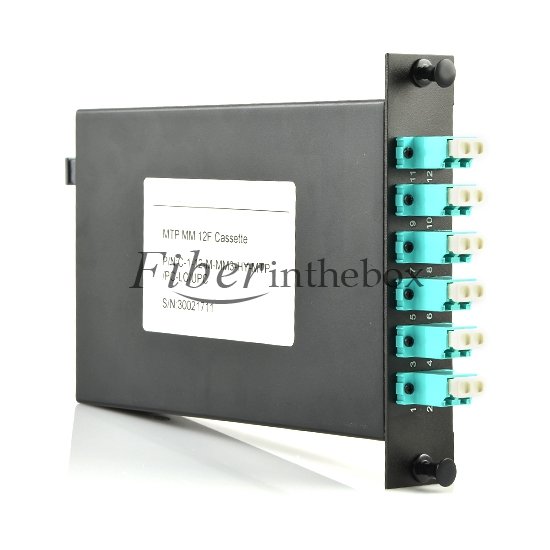

24 Fibers, MTP to LC, 50/125 10G OM4 Fiber, 12 Standard, LGX - MTP Cassette Panel
Fiberinthebox’s MTP Cassette Modules provide secure transition between MTP and LC,SC,ST or FC discrete connectors with two types.
The MTP modules are fitted with 12 or 24 fibers and have LC, SC adapters on the front side and MTP at the rear.
 |
 |
| Type A: Standard | Type B: Irregular shape |
Features
High performance zirconia sleeve adapters. Rapid deployment Factory terminated modular system saves installation and reconfiguration time during moves, adds and changes. MTP interface MTP components feature superior optical and mechanical prope ies. Optimized performance Low loss MTP Elite, discrete Premium connectors and OM4 fiber assures low inse ion losses and power penalties in tight power budget, high-speed network environments. High density 12 or 24 fiber cassettes can be mounted in 1U scaling up to 72 or in 4U scaling up to 288 discrete connectors. Reliability 100% tested - combination of high quality components and manufacturing quality control guarantees product to the highest standards.
Application
Data centers LAN, WAN and SAN Interoffice cross-connects Campus environments
Mechanical Drawing:
 |
 |
| 1U slide and tilt panel - holds up to 3 cassettes (72 fibers) | MTP Cassette housing in 4U Rack mount |
MTP Cassette Structure
 |
 |
| MTP cable connect with MTP Cassette | MTP Harness cable housing in MTP Cassette |
