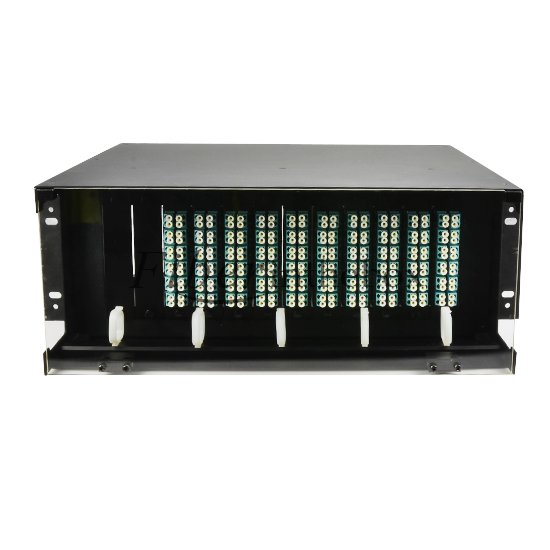

19inch, MTP/MPO Panel, 4U Rack Chassis, LGX - MTP Cassette Holder
MTP/MPO 4U 19”Rack Mount is an integrated unit for fiber management a protection function, to hold 12 pieces of Fiberinthebox’s MTP/MPO LGX cassettes.
Notes: The type of MTP which have became the tendency in Europe&American fiber communications areas at present.
Mechanical Drawing
a. Sandblasting surface treatment, and black anodized.
b. Remove all burrs and oil pollution.
c. All the pa s must be fastened together.
d. Using the 1.2mm iron material of patch panel.
b. Remove all burrs and oil pollution.
c. All the pa s must be fastened together.
d. Using the 1.2mm iron material of patch panel.
The Assembly Diagram of MTP/MPO LGX Cassette and Rack Mount
1The Anti-Dust Panel is used to protect chassis, prevent di to enter.
212 fibers LC MTP/MPO LGX Cassette can be replaced with 24 fibers LC MTP/MPO LGX Cassette, or 12 fibers SC/ST/FC MTP/MPO LGX Cassette.
Fiberinthebox provides the custom MTP/MPO Rack Mount, for example: 1 U Rack Mount to hold 3 pieces of MTP/MPO LGX Cassette. 4U Rack Mount to hold 12 pieces of MTP/MPO LGX Cassette. Other size requirements, please kindly contact us at sales@fiberinthebox.com . Notes: ( 1 LGX Cassette=156x102x29mm)
