19 inch, MTP/MPO Panel, 1U Rack Chassis, LGX - MTP/MPO Cassette Holder

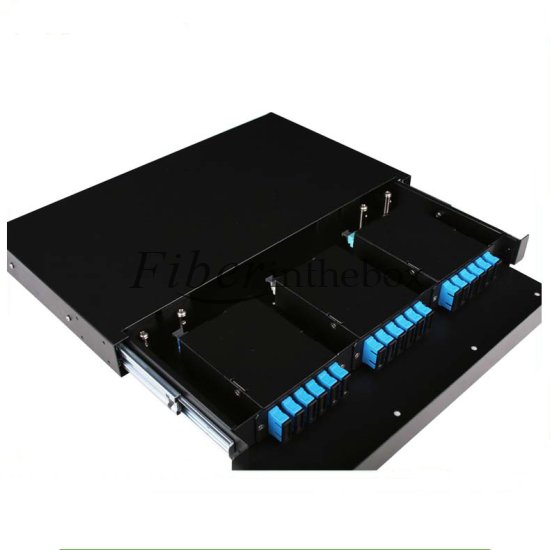

MTP/MPO 1U 19”Rack Mount is an integrated unit for fiber management a protection function, to hold 3 pieces of Fiberinthebox’s MTP/MPO LGX cassettes.
Notes: The type of MTP which have became the tendency in Europe&American fiber communications areas at present.
Mechanical Drawing
Fiberinthebox’s MTP/MPO Rack Mount with high technology requirements as follows:
a. Sandblasting surface treatment, and black anodized.
b. Remove all burrs and oil pollution.
c. All sharp edge chamfer (C 0.5)
d. The surface must be not scratch, grooves, and loss color, the hole is also not deformation, gaps and sawtooth.
e. Once complete installation, there is no buckling and deformation phenomenon.
a. Sandblasting surface treatment, and black anodized.
b. Remove all burrs and oil pollution.
c. All sharp edge chamfer (C 0.5)
d. The surface must be not scratch, grooves, and loss color, the hole is also not deformation, gaps and sawtooth.
e. Once complete installation, there is no buckling and deformation phenomenon.
The Assembly Diagram of MTP/MPO LGX Cassette and Rack Mount
In the picture, 12 fibers LC MTP/MPO LGX Cassette can be replaced with 24 fibers LC MTP/MPO LGX Cassette, or 12 fibers SC/ST/FC MTP/MPO LGX Cassette.
Fiberinthebox provides the custom MTP/MPO Rack Mount, for example: 1 U Rack Mount to hold 3 pieces of MTP/MPO LGX Cassette. 4U Rack Mount to hold 12 pieces of MTP/MPO LGX Cassette. Other size requirements, please kindly contact us at sales@fiberinthebox.com . Notes: ( 1 LGX Cassette=156x102x29mm)
