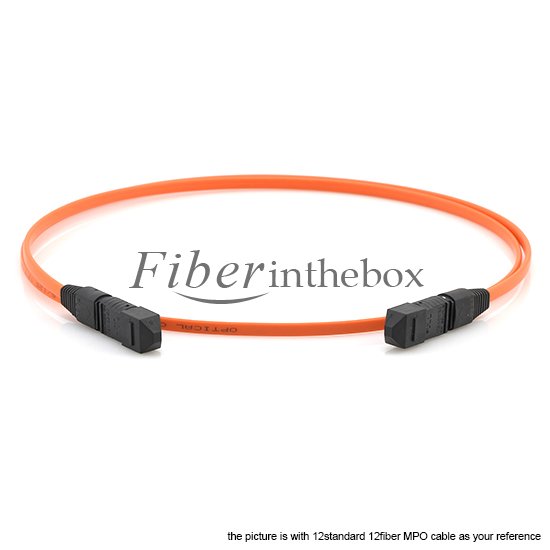

72 Fibers, MPO to MPO, 50/125 Multimode OM2 Fiber, 24 standard - MPO Backbone Trunk Cable
MPO is the high dense degree of optical fiber pre-connect system,which is generally use in three areas:
The data centra application with high dense degree environment; The optical fiber to the building; The the internal connector application in fiber equipment such as Splitter, 40G / 100G SFP and SFP+.
Fiberinthebox’s MPO fiber patch cables measure up IEC-61754-7 and TIA-604-5(FOCIS-5) standard
MPO Connector Types
 |
 |
| MPO Male with Pins | MPO Female without Pins |
| Two other clearly visible features are the noses and guide grooves (keys) on the top side.?Note:The Female and Male need to be used together.) | |
Pre-terminated MPO Technology-Polarity
The three polarity methods Type A, Type B and Type C are used to guarantee the right bi-directional allocation.
 |
Type A Straight-Through MPO Trunk Cable:
MPO Female to MPO Female 24 fiber backbone cable. The optical fiber cores so ing is the Straight-Through type, the so from 1 to 1, 2 to 2, 3 to 3... The end of A and B will connect to 24 fiber MPO Male Cassette.
|
 |
Type B Cross MPO Trunk Cable:
MPO Female to MPO Female 24 fiber backbone cable. The optical fiber cores so ing is complete crossover type. The so from 1 to 24, 2 to 23, 3 to 22... The end of A and B will connect to 24 fiber MPO Male Cassette.
|
 |
Type C Cross Pair MPO Trunk Cable:
MPO Female to MPO Female 24 fiber backbone cable. The optical fiber cores so ing is Cross Pair type. The so from 1 to 13, 2 to 14, 3 to 15... The end of A and B will connect to 24 fiber MPO Male Cassette.
|
|
Notes: Your equipment mode and QSFP type has impact of the polarity of the MPO/MTP Trunk Cable. The default color of the Multimode OM2 MPO connector is black. |
|
Assembly Structure Illustration
MPO Trunk Fiber Patch Cables are terminated with MPO connector on both end.
1.The default diameter of the MPO cable is 3.0mm.
2.The diameter of branch cable could be choose as 0.9mm,2.0mm,please kindly contact us at sales@fiberinthebox.com for other diameter standard.
3.Due to Inventory was Changed frequently,72 fiber cable will be instead of by 3x24 Fiber cable when the total order volume is less than 1000m.
1.The default diameter of the MPO cable is 3.0mm.
2.The diameter of branch cable could be choose as 0.9mm,2.0mm,please kindly contact us at sales@fiberinthebox.com for other diameter standard.
3.Due to Inventory was Changed frequently,72 fiber cable will be instead of by 3x24 Fiber cable when the total order volume is less than 1000m.
