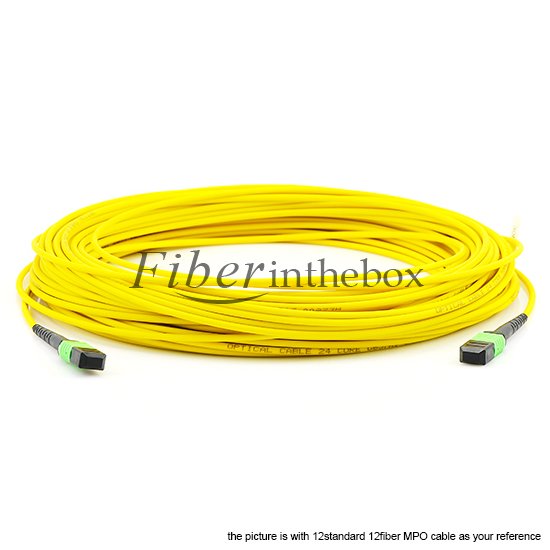

36 Fibers, MPO to MPO, 9/125 Single Mode Fiber, 12 Standard - MPO Backbone Trunk Cable
MPO is the high dense degree of optical fiber pre-connect system,which is generally use in three areas.
The data centra application with high dense degree environment The optical fiber to the building The the internal connector application in fiber equipment such as Splitter, 40G / 100G SFP and SFP+.
Fiberinthebox’s MPO fiber patch cables measure up IEC-61754-7 and TIA-604-5(FOCIS-5) standard
MPO Connector Types
 |
 |
| MPO Male with Pins | MPO Female without Pins |
| Two other clearly visible features are the noses and guide grooves (keys) on the top side.?Note:The Female and Male need to be used together.) | |
Pre-terminated MPO Technology-Polarity
The three polarity methods Type A, Type B and Type C are used to guarantee the right bi-directional allocation.
 |
A Straight-Through MPO Trunk Cable: Key-Up to Key-Down Adapters, 1 x A to B Duplex Patch Cable and 1 x .A to A Duplex Patch Cable. |
|
B Cross MPO Trunk Cable: Key-Up to Key-Up Adapters and 2 x .A to A Duplex Patch Cable. |
|
|
C Cross Pair MPO Trunk Cable: Key-Up to Key-Down Adapters and 2 x .A to A Duplex Patch Cable. |
|
|
Notes: Your equipment mode and QSFP type has impact of the polarity of the MPO/MTP Trunk Cable. The default color of the Single-mode MPO connector is green. |
|
Assembly Structure Illustration
MPO Trunk Fiber Patch Cables are terminated with MPO connector on both end.
1.The default diameter of the MPO cable is 3.0mm.
2.The diameter of branch cable could be choose as 0.9mm,2.0mm,please kindly contact us at sales@fiberinthebox.com for other diameter standard.
3.Due to Inventory was Changed frequently,36 fiber cable will be instead of by 3x12Fiber cable when the total order volume is less than 1000m.
1.The default diameter of the MPO cable is 3.0mm.
2.The diameter of branch cable could be choose as 0.9mm,2.0mm,please kindly contact us at sales@fiberinthebox.com for other diameter standard.
3.Due to Inventory was Changed frequently,36 fiber cable will be instead of by 3x12Fiber cable when the total order volume is less than 1000m.
MTP/MPO Machinery & Testing Equipment
MTP/MPO Polishing Machine
MTP/MPO 3D Interferometer Machine
3D Interference Tested and Paper
Specifications
Parameter Reference
| Type | Single mode | Single mode | Multi mode | |||
| (APC polish) | (PC polish) | (PC polish) | ||||
| Fiber count | 8, 12, 24 etc. | 8, 12, 24 etc. | 8, 12, 24 etc. | |||
| Fiber type | G652D, G657A1 etc. | G652D, G657A1 etc. | OM1, OM2, OM3 etc. | |||
| Maximum Insertion Loss | Elite | Standard | Elite | Standard | Elite | Standard |
| Low Loss | Low Loss | Low Loss | ||||
| ?0.35 dB | ?0.70 dB | ?0.35 dB | ?0.70 dB | ?0.35dB | ?0.60dB | |
| Return Loss | ?55 dB | ?45 dB | ?20 dB | |||
| Durability | ?200 times | ?200 times | ?200 times | |||
| Operating Temperature | -10? ~ +70? | -10? ~ +70? | -10? ~ +70? | |||
| Test Wavelength | 1310nm | 1310nm | 850nm | |||
OM1 – 62.5 um Core – 10GBit up to 33 meters, gigabit up to 300m
OM2 – 50 um Core – 10GBit up to 82 meters,gigabit up to 500m
OM3 – 50 um Core, Laser Optimized – 10GBit up to 300 meters,gigabit up to 1000m
OM4 – 50 um Core, Laser Optimized – 10GBit up to 550 meters,gigabit up to 1000m
Make To Order
| Fiber Type | Cable Type | Fiber Count | Termination | Cable Length | Breakout Length (Inches) | Breakout Termination | Polarity | Lableing | |
|
OM4 OM3 OS1/2 OM2 OM1 |
LSZH Bunch Riser Bunch LSZH Ribbon Riser Ribbon |
12 24 36 48 72 96 144 |
First Connector MPO Female MPO Male APC MPO Female APC MPO Male |
1~999 |
12~99 (36" is typical) |
0.9mm (standard) 2.0mm 3.0mm |
Style A Style B Style C |
Standard Custom | |
|
Second Connector MPO Female MPO Male APC MPO Female APC MPO Male |
|||||||||
