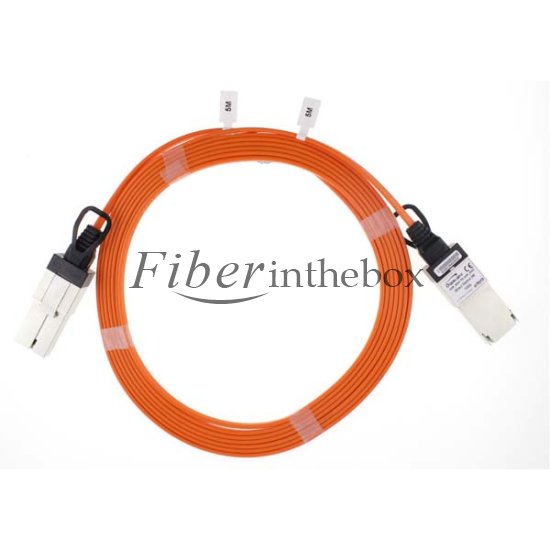

120GCXP-AOC-10-xx
120G CXP Active Optical Cable integrates the design of 12-Channel VCSEL Array and PIN Array, providing 12 parallel data channels. Each channel suppo s up to 10.5Gb/s transmission data rate, total 126Gb/s bandwidth. Due to the 120Gb / s CXP AOC active optical cables’ no exposed optical interface, no optical interfaces clean or contamination problems, which makes it can be flexibly arranged extensively with the cloud data center computer room. When we use this 120G CXP AOC over OM3 optical cables, the transmission distance can reach 300 meters. This product is suitable for 12X QDR InfiniBand Interconnection, meeting with IEEE802.3ba standard.
All our 120G CXP AOC are 100% compatible with major brands like Cisco, HP, Juniper, Enterasys, Extreme, H3C and so on. If you would like to order high quality compatible 120G CXP AOC and get worldwide delivery, we believe Fiberinthebox is your best choice.
All our 120G CXP AOC are 100% compatible with major brands like Cisco, HP, Juniper, Enterasys, Extreme, H3C and so on. If you would like to order high quality compatible 120G CXP AOC and get worldwide delivery, we believe Fiberinthebox is your best choice.
Specifications
Full Duplex 12 Channel 850nm Parallel Active Optical CableLength: 10 meterSuppo s transmission rates up to 10.3Gbit/s per channelCXP-based Small Form-factor hot pluggable interfaceSuppo s Rx Pre-EmphasisEEPROM-based Serial-ID, accessible through two-wire Serial Interface 12ch 850nm VCSEL array12ch PIN-detector array Helix type 24-fiber Multi-Mode Optical cable of up to 50m to allow bending in any direction Fire-resistant OFNP (Optical Fiber Non-Conductive Plenum) rated cable Low power consumption: 2.5W (max)Laser Class 1 IEC/CDRH productRoHS 6/6 compliantWide operating temperature range: 0-70℃
Application
Ordering Information
| Pa No. | Data Rate | Length | AWG | Cable Type | Temp. Range |
| 120GCXP-AOC-1-xx | Up to 120G | 1m | Fiber | AOC | 0-70℃ |
| 120GCXP-AOC-2-xx | Up to 10.5G | 2m | Fiber | AOC | 0-70℃ |
| 120GCXP-AOC-3-xx | Up to 10.5G | 3m | Fiber | AOC | 0-70℃ |
| 120GCXP-AOC-4-xx | Up to 10.5G | 4m | Fiber | AOC | 0-70℃ |
| 120GCXP-AOC-5-xx | Up to 10.5G | 5m | Fiber | AOC | 0-70℃ |
| 120GCXP-AOC-6-xx | Up to 10.5G | 6m | Fiber | AOC | 0-70℃ |
| 120GCXP-AOC-7-xx | Up to 10.5G | 7m | Fiber | AOC | 0-70℃ |
| 120GCXP-AOC-8-xx | Up to 10.5G | 8m | Fiber | AOC | 0-70℃ |
| 120GCXP-AOC-9-xx | Up to 10.5G | 9m | Fiber | AOC | 0-70℃ |
| 120GCXP-AOC-10-xx | Up to 10.5G | 10m | Fiber | AOC | 0-70℃ |
Notes
This new version 120G CXP Active Optical Cable opens EEPROM for customer re-coding for different applications.Custom 120G CXP Active Optical Cable are available in various lengths and other options.
This new version 120G CXP Active Optical Cable opens EEPROM for customer re-coding for different applications.Custom 120G CXP Active Optical Cable are available in various lengths and other options.
Packaging
Packed with antistatic bag in a box(Default Customer Options) Specific Labels as Request
Impo ant Notice
OEM and ODM
Combining our extensive design and engineering capability in optical transceiver industry, with our competitive advantages from integrated manufacturing capability, internal supply chain, and cost competitive and scalable operation infrastructure, Fiberinthebox provides OEM, ODM, and contract manufacturing service to world leading customers with our manufacturing facilities in China.We are also mainly engaged in providing complete sets of optoelectronic device solutions to gain more brand extensions and influence for Fiberinthebox in the world. OEM/ODM order is availableWe can supply 120GCXP-AOC-10-xx according to your requirements, and design 120GCXP-AOC-10-xx label and packaging for your company.We welcome any inquiry for customized 120G CXP AOC.
Order Procedure
Please contact us with any special requirements you may have, we can help you create a custom solution to meet almost any application. Our engineer will review the project and provide a quotation within 1-2 business days.
a. Email ( sales@fiberinthebox.com ) a rough sketch to a detailed drawing.
b. Our engineer will review the project and provide a quotation within 24 hours.
c. We can arrange production as low as 1 piece and as high as 1,000 pieces in 1~4 business days once an order is placed.
a. Email ( sales@fiberinthebox.com ) a rough sketch to a detailed drawing.
b. Our engineer will review the project and provide a quotation within 24 hours.
c. We can arrange production as low as 1 piece and as high as 1,000 pieces in 1~4 business days once an order is placed.
Details
Shipment
International Express: Fedex, DHL, UPS, TNT and EMS.If you have another preferred carrier, please notify us in advance.
FedEx Overnight: It will take 1-3 business days (weekends and holidays excepted) for delivery.
DHL: It will take 2-4 business days (weekends and holidays excepted) for delivery. For Spain, Italy, Brazil and some other countries, items will take longer time to arrive due to customs clearance period.
FedEx Overnight: It will take 1-3 business days (weekends and holidays excepted) for delivery.
DHL: It will take 2-4 business days (weekends and holidays excepted) for delivery. For Spain, Italy, Brazil and some other countries, items will take longer time to arrive due to customs clearance period.
Save Cost By Buying 120G CXP AOC From Original Manufacturer Fiberinthebox Directly.
Fiberinthebox is a professional manufacturer & supplier of 120G CXP AOC. All of our 10G SFP+ cable are tested in-house prior to shipping to guarantee that they will arrive in perfect physical and working condition. We guarantee 120G CXP AOC to work in your system and all of our 120G CXP AOC comes with a lifetime advance replacement warranty. If you have questions about 120G CXP AOC, please feel free to contact us at sales@fiberinthebox.com .
