8 channel Simplex,DWDM OADM Optical Add/Drop Multiplexer, East-and-West, 1RU Rack Mount Chassis

Simplex DWDM OADM for East-and-West Traffic

The Simplex DWDM/AD modules add (multiplex) and drop (demultiplex) selected wavelengths over dual fiber Simplex DWDM MUX & DEMUX link for East-and-West Traffic.

Fiberinthebox DWDM OADM ( DWDM/AD) modules are Course Wave Division Multiplexing (CWDM) Optical Add and Drop Multiplexers (OADM). "Add" and "drop" here refer to the capability of the device to add one or more new wavelength channels to an existing multi-wavelength WDM signal, and to drop (remove) one or more channels, passing those signals to another network path.

Using high performance filter technology, the DWDM/AD is a passive optical add/drop multiplexer designed to optically add/drop one or multiple DWDM channels into one or two fibers. It is an ideal solution for Metro-Core, Metro-Access and Enterprises, comprise a family of flexible, cost-effective solutions that expand the bandwidth capacity of existing fiber in point-to-point, ring, or bus configurations' applications.

Add/drop channels are interfaced to any of Fiberinthebox DWDM transceivers on the equipment side, and we also provide optional po configurations such as: Monitor Po , 1310nm passband po and Express po according to customer request. Available in 100GHz or 200GHz (0.8/1.6nm), 19" Rack Mount, LGX module or Pigtailed ABS box packaging.

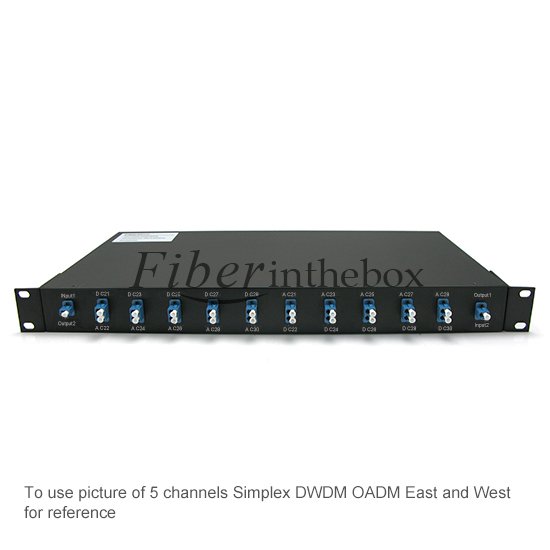

Front Panel Details

NOTE:
Actual layout depends on the chosen connector type as well as other factors. However, the principal scheme stays the same We also provide optional po configurations such as: Monitor Po , 1310nm passband po and Express Po for these multiplexers according to customer choice, need more details, please contact at sales@Fiberinthebox.com

Item Details

8 channels DWDM OADM, Add + Drop in one packaging 2 x Common po s for West and East traffic: Simplex Connector All Add/Drop Channels for West and East traffic: Duplex Connector; 100GHz Grid (0.8 nm). 200 GHz Grid (16nm) are also available on request. 1U 19 inch Rack Mount Housing OADM complement to the express DWDM product line Compliant to ITU-T G.694.1 DWDM standard Protocol and rate transparent for applications up to 10Gbp Metro distance, up to 80 km Entirely passive device, no power supply needed It is equipped with configuration po s like Monitor, Express po according to customer choice (see options) Front panel is equipped with adapters according to customer choice (see options) ISO 9001 manufacturing facility

Mechanical Details for Housing

Please note that the drawings shown here only show the dimensions and do not the specific configuration of the module.
