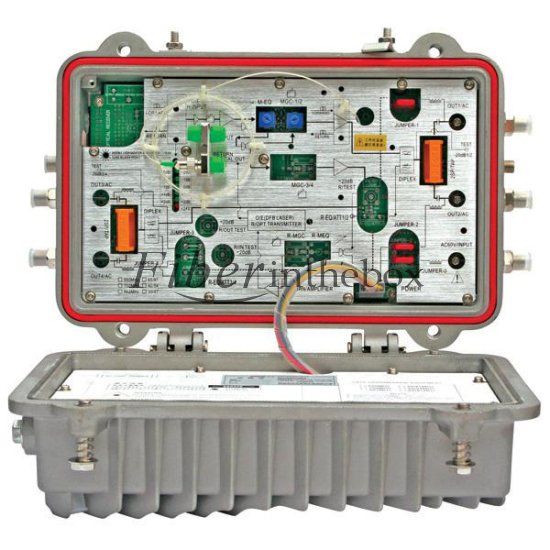

4 Channels Standard Outdoor Single mode CATV optical receiver with original moudle

4 Channels Standard Outdoor Single mode CATV optical receiver with original moudle

CATV Receiver is bidirectional design, HFC transmitting products. Modulization, plug-in design, collocate according to customers requirements. Add return path can update as bidirectional Optical Workstation. Use PIN diode and receiving mould, GaAs amplifier module(front-positioned) give super low noise and low Optic power receiving;RF signal amplify, impulse power, one way individual output or two output. Maximum Output level is 114dBμV(0 dBm input power), every output can be used as reverse path.

Key Features

Use PIN diode or optical receiving module Receiving Optical Wavelength:1290mn~1600nm 1000MHz design, (750/862MHz) Plug-in bidirectional filter:30/47MHz~42/54MHz~65/87MHz Optional Plug-in Circuit improve non-linear disto ion 1 way coupler output or 2 splitter output Ruturn path can use at any time and update Network.(optionVRT-200X/P Return transmitter) With optical power monitor Power supply:60V/AC and 220V/AC optional SMPS and with wide range of voltage

Specification

Electonic Parameter:
Frequency range	45~750/862MHz
Flatness in band	± 0.75dB
Return loss	≥ 16dB(45~750MHz)
	≥ 14dB(750~862MHz)
Nominal output level	112dBμV
Max. Output Level	112dBμV0dBm
CNR	≥ 51dB
C/CSO	≥ 60dB
C/CTB	≥ 65dB
Gain Adjustment Range	0~20dB
Slope Adjustment Range	0~12dB
Test Level	-20dB±1dB
Amplify Gain	18dB~28dB Optional
Frequency Range	5~200MHz
Reverse OT. Flatness	± 0.75dB
Output Impedance	75Ω
Connector Type	F-connector or 5/824 connector
Power Supply	60V /AC or 220V / DC48V
Current	10A (60V/AC Power Supply)
Power Consumption	30W Max
Optical Parameter:
IN Optical Wavelength	1290nm~1600nm
Return loss	45dB
Current	0.85A / W(1310nm)
Optical Power Range	-4 ~+2dBm
Max. Input Power	2mW(+3dBm)
Fibre Type	SM9 / 125μm)
Connector Type	FC / APC or SC /APC
Output Power	≥ -3dBm
Optical Wavelength	1310nm or 1550nm
Environment Parameter:
Storage Temperature	-40~+70 temp
Storage Humidity	Rh80%,Non-acidity
Operating Temperature	-25~+55 temp
Operating Humidity	40~80%,Non-acidity
Size	L300×B210×H130mm

Applications:

CATV Networks
FTTH networks
receiver-ONU Side
Transmission of video and sound through Hybrid Fiber Coaxial (HFC) networks

Ordering Information

Pa No.	Channels	Bandwidth	Power	RX	wavelength(nm)	configuration
SOR-860C4	4	860MHz	-4 ~+2dBm	PIN	1310/1550	Inner signal Moudle (Original)
SOR-860C4-FS	4	860MHz	-4 ~+2dBm	PIN	1310/1550	Inner signal Moudle
SOR-860C2	2	860MHz	-4 ~+2dBm	PIN	1310/1550	Inner signal Moudle (Original)
SOR-860C2-FS	2	860MHz	-4 ~+2dBm	PIN	1310/1550	Inner signal Moudle
