The optical filter is an instrument that is used for wavelength selection, which can select required wavelengths from a large number of wavelengths and reject the addition wavelengths. It can used in wavelength selection, the noise filter of the optical amplifier, gain equalization, optical multiplexing / demultiplexing.

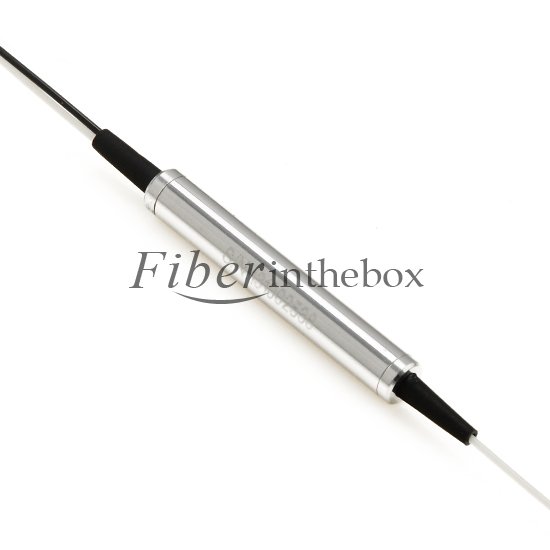

Optical Fiber Filter WDM FTTX 1625nm FS-FWDM-1625 is made by special optical components and advanced technology, it can deeply let 1600-1670nm wavelength pass but efficiently stop 1250-1590nm wavelength. This product is mainly used in optical fiber on-line testing. It is ideal component of 1625/1650nm optical fiber filtering.
|
Parameters |
Value |
Unit |
|
Passed Wavelength Range |
1600-1670 |
nm |
|
1625nm Transmittance |
80-90 |
% |
|
1650nm Transmittance |
75-85 |
% |
|
Stopped Wavelength Range |
1250-1590 |
nm |
|
1310nm Isolation |
≥50 |
dB |
|
1490nm Isolation |
≥45 |
dB |
|
1550nm Isolation |
≥38 |
dB |
|
PDL |
≤0.3 |
dB |
|
Temperature Shift Factor |
≤2 |
% |
|
Max. Power Handle |
300 |
mW |
|
Operation Temperature |
-25～＋70 |
℃ |
|
Storage Temperature |
-40～＋85 |
℃ |
|
Optical Fiber Type |
SM Φ0.9 |
/ |
|
Connector |
FC/APC or FC/PC |
/ |
|
Material Of Shell |
SUS304 |
/ |
|
Parameters |
Value |
Unit |
|
Passed Wavelength Range |
1600-1670 |
nm |
|
1625nm Transmittance |
80-90 |
% |
|
1650nm Transmittance |
75-85 |
% |
|
Stopped Wavelength Range |
1250-1590 |
nm |
|
1310nm Isolation |
≥50 |
dB |
|
1490nm Isolation |
≥45 |
dB |
|
1550nm Isolation |
≥38 |
dB |
|
PDL |
≤0.3 |
dB |
|
Temperature Shift Factor |
≤2 |
% |
|
Max. Power Handle |
300 |
mW |
|
Operation Temperature |
-25～＋70 |
℃ |
|
Storage Temperature |
-40～＋85 |
℃ |
|
Optical Fiber Type |
SM Φ0.9 |
/ |
|
Connector |
FC/APC or FC/PC |
/ |
|
Material Of Shell |
SUS304 |
/ |
