Curl Fiber patch cord is retractable and usable in household wiring and wiring for movable pa s of machines.The curl length(cm) and total length can be customed according to the customer’s requirements in Fiberinthebox.
The meters is point to the length of the cable after straightening. Bending diameter, Bending laps could be customized according to the total length you required.
Specifications
|
Cable OD(mm) |
2 or 3 |
|
Curl OD(mm) |
18-22 |
|
Curl Length(cm) |
According to the customer’s requirements |
|
Total Length(cm) |
According to the customer’s requirements |
|
Faber Type |
Bendsafe G657B |
|
Cable Material |
TPU（white） |
|
Connector Type |
LC/UPC、LC/APC |
|
Inse ion Loss(dB) |
<1dB for 100 turns |
|
Reture Loss(dB) |
UPC>=50,APC>=60 |
|
Operating Temperature(℃) |
-40℃~+80℃ |
|
Storage Temperature(℃) |
-45℃~+85℃ |
|
Fireproof standard |
IEC 60332-3 |
|
RoHs 2002/95/EC directive |
|

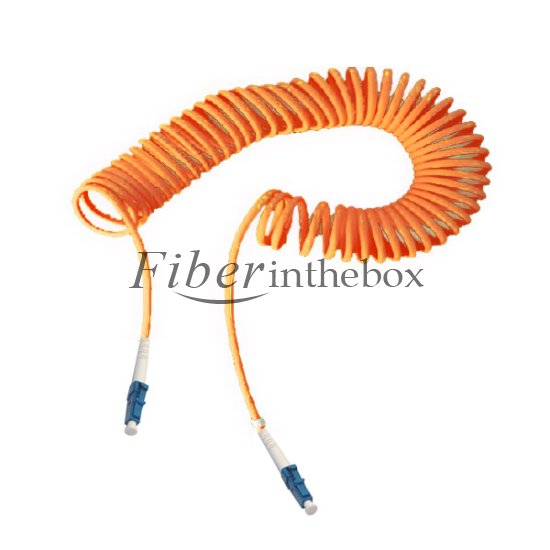

Sample Picture
Application Drawing
Mechanical Drawing
Fiberinthebox is an professional manufacturer & supplier of Curl Fiber Patch , it could be customized in any length. If you have any question about it,please feel free contact us at sales@fiberinthebox.com
