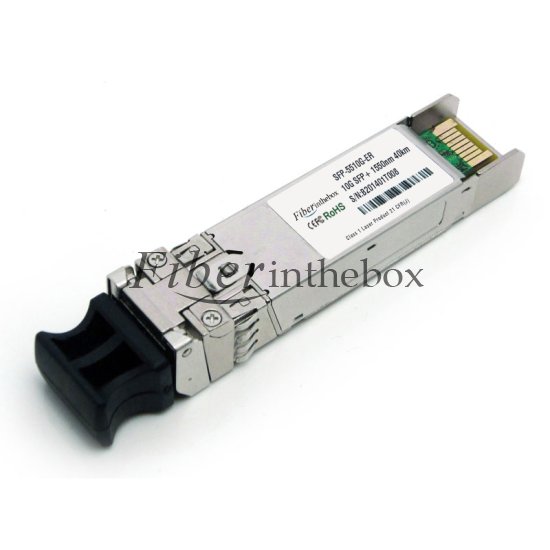

SSFP-10G55-40-xx
Fiberinthebox SDH SFP+ transceiver is a high performance, cost effective modulse for serial optical data communications applications specified for signal rates of 9.95 Gb/s to 11.3 Gb/s. The modules are designed for single mode fiber and operates at a nominal wavelength of 850/1310/1550 nm. The transmitter section incorporates uncooled directly modulated 1310 nm distributed feedback laser (DFB) or EML colled laser 1550nm. The receiver section uses PIN photodetector for low dark current and excellent responsivity or APD high sensetivity receiver. CDR chipset is integrated both to transmitter TX and receiver RX side.
Key Features
Suppo s 9.95Gb/s to 11.3Gb/s bit rates Average Output Power:4.7~4dBmReceiver Sensitivity:-15.8dBmSFP 10G with CDR both at TX and RX side IEC 60825-1 Class 1/CDRH Class 1 laser eye safety. Hot-pluggable SFP+ footprint 40km at 1550nm EML/PIN Transmitter Duplex LC connector Low Power dissipation Superior Thermal and EMI integrity performance to suppo high po densities LC Duplex optical connector interface conforming to ANSI TIA/EIA604-10 (FOCIS 10) Built-in digital diagnostic functions, DDMI RoHS-6, CE, FDA, FCC, TUV, UL ce ifactes
Applications
1000BASE-SX 1G Ethernet 1000BASE-LX 1G Ethernet 10GBASE-SR/SW 10G Ethernet 10GBASE-LR 10G Ethernet
Ordering Information
| Pa No. | Data Rate (Gbps) | Wavelength (nm) | TX Power (dBm) | Re Sens. (dBm) | Transmission Distance | Fiber Type | Connector Type | Temp. Range | Digital Diagnostics |
| SSFP-10G85-3M-xx | 9.95~10.3G | 850 | -6~-1 | ﹤-11.1 | 300m | MMF | LC | Com./Ex./Ind. | Yes |
| SSFP-10G31-2M-xx | 9.95~10.3G | 1310 | -6.5~-0.5 | ﹤-10 | 220m | MMF | LC | Com./Ex./Ind. | Yes |
| SSFP-10G31-2-xx | 9.95~10.3G | 1310 | -6~-1 | ﹤-14.4 | 2km | MMF | LC | Com./Ex./Ind. | Yes |
| SSFP-10G31-10-xx | 9.95~11.1G | 1310 | -6~-0 | ﹤-14.4 | 10km | SMF | LC | 0~70℃ | Yes |
| SSFP-10G31-20-xx | 9.95~11.1G | 1310 | -3~-1 | ﹤-14.4 | 20km | SMF | LC | 0~70℃ | Yes |
| SSFP-10G31-40-xx | 9.95~11.1G | 1310 | -1~4 | ﹤-15 | 40km | SMF | LC | 0~70℃ | Yes |
| SSFP-10G31-70-xx | 9.95~11.1G | 1310 | 2~5 | ﹤-20 | 70km | SMF | LC | 0~70℃ | Yes |
| SSFP-10G55-40-xx | 9.95~11.1G | 1550 | -4.7~4 | ﹤-15.8 | 40km | SMF | LC | 0~70℃ | Yes |
| SSFP-10G55-80-xx | 9.95~11.1G | 1550 | 0~5 | ﹤-23 | 80km | SMF | LC | 0~70℃ | Yes |
Notesxx means compatible brand. (For example: CO= Cisco, JU=Juniper, FD=Foundry, EX=Extreme, NE=Netgear,etc. The two characters are sho for compatible brand.)
Packaging
Antistatic bag Packed on pallets in a box(Default Customer Options) Specific Labels as Request Seperate white Box for each transceiver
OEM and ODM
Combining our extensive design and engineering capability in optical transceiver industry, with our competitive advantages from integrated manufacturing capability, internal supply chain, and cost competitive and scalable operation infrastructure, Fiberinthebox provides OEM, ODM, and contract manufacturing service to world leading customers with our manufacturing facilities in China.We are also mainly engaged in providing complete sets of optoelectronic device solutions to gain more brand extensions and influence for Fiberinthebox in the world. OEM/ODM order is available We can supply SSFP-10G55-40-xx according to your requirements, and design SSFP-10G55-40-xx label and packaging for your company. We welcome any inquiry for customized SDH SONET SFP+ optical transceiver.
Order Procedure
Please contact us with any special requirements you may have, we can help you create a custom solution to meet almost any application. Our engineer will review the project and provide a quotation within 1-2 business days.
a. Email ( sales@fiberinthebox.com ) a rough sketch to a detailed drawing.
b. Our engineer will review the project and provide a quotation within 24 hours.
c. We can arrange production as low as 1 piece and as high as 1,000 pieces in 1~4 business days once an order is placed.
a. Email ( sales@fiberinthebox.com ) a rough sketch to a detailed drawing.
b. Our engineer will review the project and provide a quotation within 24 hours.
c. We can arrange production as low as 1 piece and as high as 1,000 pieces in 1~4 business days once an order is placed.
Details
Shipment
International Express: Fedex, DHL, UPS, TNT and EMS.If you have another preferred carrier, please notify us in advance.
FedEx Overnight: It will take 1-3 business days (weekends and holidays excepted) for delivery.
DHL: It will take 2-4 business days (weekends and holidays excepted) for delivery. For Spain, Italy, Brazil and some other countries, items will take longer time to arrive due to customs clearance period.
FedEx Overnight: It will take 1-3 business days (weekends and holidays excepted) for delivery.
DHL: It will take 2-4 business days (weekends and holidays excepted) for delivery. For Spain, Italy, Brazil and some other countries, items will take longer time to arrive due to customs clearance period.
Save Cost By Buying SDH SONET SFP+ From Original Manufacturer Fiberinthebox Directly.
Fiberinthebox is an professional manufacturer supplier of SDH SONET SFP+ transceivers. All of our SDH SONET SFP+ transceivers are tested in-house prior to shipping to guarantee that they will arrive in perfect physical and working condition. We guarantee SDH SONET SFP+ transceivers to work in your system and all of our SDH SONET SFP+ transceivers come with a lifetime advance replacement warranty. If you have questions about SDH SONET SFP+ optics, please feel free to contact us at sales@fiberinthebox.com .
