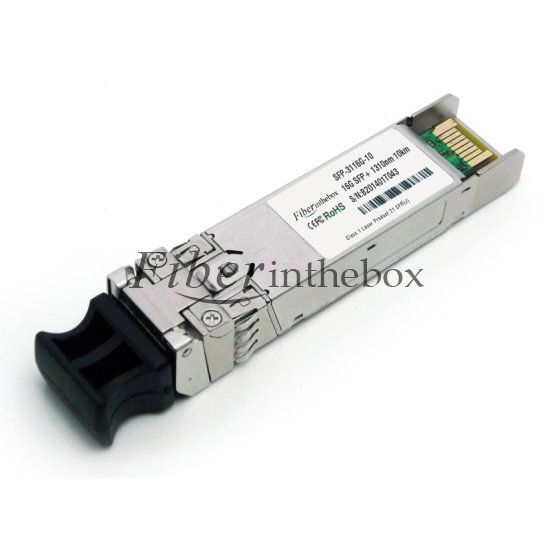

SFP-16G31-10-xx
Fiberinthebox offers SFP+ 16G, SFP 16G fibre channel transceivers that are SFP compliant. This fibre channel transceiver solution suppo s high-speed serial links over multimode optical fiber at signaling rates up to 14.025 GB. Using the 2-wire serial interface defined in the SFF-8472 MSA, these 16G fibre channel transceivers provide real-time temperature, supply voltage, laser bias current, laser average output power and received input power.
Key Features
Distance up to 10km at 1310nm DFB TransmitterCompliant to Restriction on Hazardous Substances (RoHS) directive Diagnostic features per SFF-8472 “Diagnostic Monitoring Interface for Optical Transceivers” Real time monitoring of: Transmitted optical power; Received optical power; Laser bias current; Temperature; Supply voltage SFP Plus Mechanical forfactor Wide temperature and supply voltage operation (-0°C to 70°C) (3.3 V ± 5%) Transceiver specifications per SFP (SFF-8074i) Multi-Source Agreement and SFF-8472 (revision 10.0) 14.025GB Fibre Channel operation for FC-PI-5 1600 M5E-SN-I, FC-PI-5 1600-M5E-SN-I, FC-PI-5 1600 M5F-SN-I 8.5 GB Fibre Channel operation for FC-PI-4 800-M5-SN-S, 800-M6-SN-S and 800-M5E-SN-I 4.25 GB Fibre Channel operation for FC-PI400-M5-SN-I , 400-M6-SN-I and 400 M5E-SN-I Link lengths at 14.025 GB: 125m with 50µm OM4, 100M with 50µm OM3, 35m with 50µm OM2, 15m with 62.5µm OM1 Link lengths at 8.5 GB: 21m with 62.5µm OM1, 50m with 50µm OM2, 150m with 50µm OM3 Link lengths at 4.25 GB: 70m with 62.5µm OM1, 150m with 50µm OM2, 380m with 50µm OM3 Link lengths at 2.125 GB: 150m with 62.5µm OM1, 300m with 50µm OM2, 500m with 50µm OM3 LC Duplex optical connector interface conforming to ANSI TIA/EIA604-10 (FOCIS 10A) IEC 60825-1 Class 1/CDRH Class 1 laser eye safe Enhanced EMI performance for high po density applications
Applications
Compliant with Small Form Pluggable (SFP) Multi Source Agreement (MSA) mechanical and electrical specifications for LC Duplex transceiversANSI Fibre Channel transceiver for FC-PI-5 and FC-PI-2 gigabit.
Ordering Information
| Pa No. | Data Rate (Gbps) | Wavelength (nm) | Transmission Distance | Fiber Type | Connector Type | Temp. Range | Digital Diagnostics |
| SFP-16G85-1M-xx | 16 / 8 / 4G | 850 | 35/100/125m | MMF | LC | 0~70℃ | Yes |
| SFP-16G31-10-xx | 16 / 8 / 4G | 1310 | 10km | SMF | LC | 0~70℃ | Yes |
| SFP-16G31-20-xx | 16 / 8 / 4G | 1310 | 20km | SMF | LC | 0~70℃ | Yes |
Notesxx means compatible brand. (For example: CO= Cisco, JU=Juniper, FD=Foundry, EX=Extreme, NE=Netgear,etc. The two characters are sho for compatible brand.)
Packaging
Antistatic bag Packed on pallets in a box(Default Customer Options) Specific Labels as Request Seperate white Box for each transceiver
OEM and ODM
Combining our extensive design and engineering capability in optical transceiver industry, with our competitive advantages from integrated manufacturing capability, internal supply chain, and cost competitive and scalable operation infrastructure, Fiberinthebox provides OEM, ODM, and contract manufacturing service to world leading customers with our manufacturing facilities in China.We are also mainly engaged in providing complete sets of optoelectronic device solutions to gain more brand extensions and influence for Fiberinthebox in the world. OEM/ODM order is available We can supply SFP-16G31-10-xx according to your requirements, and design SFP-16G31-10-xx label and packaging for your company. We welcome any inquiry for customized 16G SFP+ optical transceiver.
Order Procedure
Please contact us with any special requirements you may have, we can help you create a custom solution to meet almost any application. Our engineer will review the project and provide a quotation within 1-2 business days.
a. Email ( sales@fiberinthebox.com ) a rough sketch to a detailed drawing.
b. Our engineer will review the project and provide a quotation within 24 hours.
c. We can arrange production as low as 1 piece and as high as 1,000 pieces in 1~4 business days once an order is placed.
a. Email ( sales@fiberinthebox.com ) a rough sketch to a detailed drawing.
b. Our engineer will review the project and provide a quotation within 24 hours.
c. We can arrange production as low as 1 piece and as high as 1,000 pieces in 1~4 business days once an order is placed.
Details
Shipment
International Express: Fedex, DHL, UPS, TNT and EMS.If you have another preferred carrier, please notify us in advance.
FedEx Overnight: It will take 1-3 business days (weekends and holidays excepted) for delivery.
DHL: It will take 2-4 business days (weekends and holidays excepted) for delivery. For Spain, Italy, Brazil and some other countries, items will take longer time to arrive due to customs clearance period.
FedEx Overnight: It will take 1-3 business days (weekends and holidays excepted) for delivery.
DHL: It will take 2-4 business days (weekends and holidays excepted) for delivery. For Spain, Italy, Brazil and some other countries, items will take longer time to arrive due to customs clearance period.
Save Cost By Buying 16G SFP+ From Original Manufacturer Fiberinthebox Directly.
Fiberinthebox is an professional manufacturer & supplier of 16G SFP+ transceivers. All of our 16G SFP+ transceivers are tested in-house prior to shipping to guarantee that they will arrive in perfect physical and working condition. We guarantee 16G SFP+ transceivers to work in your system and all of our 16G SFP+ transceivers come with a lifetime advance replacement warranty. If you have questions about 16G SFP+ optics, please feel free to contact us at sales@fiberinthebox.com .
