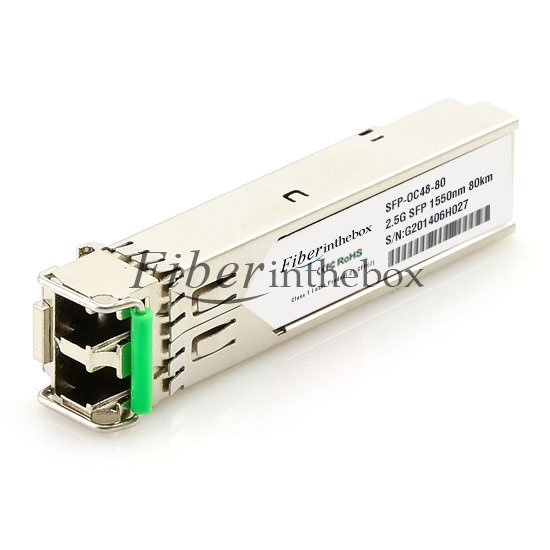

OSFP-2G55-80-xx
The Fiberinthebox’s Multi-rate Series 2.67Gb/s transceiver module integrates optics and electronics in a Small Form Factor Pluggable (SFP) package. It is Multisource Agreement (MSA) compatible and designed for operation at 1310 nm and 1550 nm. Although optimized for OC-48/STM-16, it provides multi-rate capabilities and can be used from OC-3/STM-1(155 Mb/s) up to 2.7 Gb/s. MultiRate SFP transceiver provides a fully OC-48 SONET compliant interface between the SONET/SDH photonic layer and the electrical layer. Its microprocessor - based modular design implements all features specified in the SFP MSA compatible 2-wire Serial Digital Diagnostic Monitoring Interface for Optical Transceivers. OC-48 / STM-16 is a network line with transmission speeds of up to 2488.32 Mbit/s (payload: 2405.376 Mbit/s; overhead: 82.944 Mbit/s).
Key Features
Data-rate of 2.5Gbps operation 80km with 9/125 µm SMF 1550nm DFB Laser Transmitter Hot-pluggable SFP footprint duplex LC connector Interface Class 1 FDA and IEC60825-1 Laser Safety Compliant Compliant with SFP MSA Compliant with SFF-8472 Single 3.3V Power Supply and TTL Control Logic Interface Average Output Power:-2~ 3dBm Receiver Sensitivity:-28dBm
Applications
SONET / SDH Switch Infrastructure STM16 Optical Interface ATM Switches and Routers Switch to Switch Interface Other Optical Links
Ordering Information
| Pa No. | Data Rate (Mbps) | Wavelength (nm) | TX Power (dBm) | Re Sens. (dBm) | Transmission Distance | Fiber Type | Connector Type | Temp. Range | Digital Diagnostics |
| OSFP-2G85-5M-xx | ≤ 2.5 | 850 | 500m | MMF | LC | Com./Ex./Ind. | Yes/NO | ||
| OSFP-2G31-2-xx | ≤ 2.5 | 1310 | -10~ -3 | ﹤-18 | 2km | MMF | LC | Com./Ex./Ind. | Yes/NO |
| OSFP-2G31-5-xx | ≤ 2.5 | 1310 | 5km | SMF | LC | Com./Ex./Ind. | Yes/NO | ||
| OSFP-2G31-10-xx | ≤ 2.5 | 1310 | -11.7~ -3 | ﹤-18 | 10km | SMF | LC | Com./Ex./Ind. | Yes/NO |
| OSFP-2G31-15-xx | ≤ 2.5 | 1310 | -5~ 0 | ﹤-18 | 15km | SMF | LC | Com./Ex./Ind. | Yes/NO |
| OSFP-2G31-40-xx | ≤ 2.5 | 1310 | -2-3 | ﹤-27 | 40km | SMF | LC | Com./Ex./Ind. | Yes/NO |
| OSFP-2G55-40-xx | ≤ 2.5 | 1550 | -2~3 | ﹤-20 | 40km | SMF | LC | Com./Ex./Ind. | Yes/NO |
| OSFP-2G55-80-xx | ≤ 2.5 | 1550 | -2~3 | ﹤-28 | 80km | SMF | LC | Com./Ex./Ind. | Yes/NO |
| OSFP-2G55-100-xx | ≤ 2.5 | 1550 | 0~5 | ﹤-29 | 100km | SMF | LC | Com./Ex./Ind. | Yes/NO |
| OSFP-2G55-120-xx | ≤ 2.5 | 1550 | 2~7 | ﹤-30 | 120km | SMF | LC | Com./Ex./Ind. | Yes/NO |
Notes xx means compatible brand. (For example: CO= Cisco, JU=Juniper, FD=Foundry, EX=Extreme, NE=Netgear,etc. The two characters are sho for compatible brand.)
Packaging
Antistatic bag Packed on pallets in a box(Default Customer Options) Specific Labels as Request Seperate white Box for each transceiver
OEM and ODM
Combining our extensive design and engineering capability in optical transceiver industry, with our competitive advantages from integrated manufacturing capability, internal supply chain, and cost competitive and scalable operation infrastructure, Fiberinthebox provides OEM, ODM, and contract manufacturing service to world leading customers with our manufacturing facilities in China.We are also mainly engaged in providing complete sets of optoelectronic device solutions to gain more brand extensions and influence for Fiberinthebox in the world. OEM/ODM order is available We can supply OSFP-2G55-80-xx according to your requirements, and design OSFP-2G55-80-xx label and packaging for your company. We welcome any inquiry for customized SFP optical transceiver.
Order Procedure
Please contact us with any special requirements you may have, we can help you create a custom solution to meet almost any application. Our engineer will review the project and provide a quotation within 1-2 business days.
a. Email ( sales@fiberinthebox.com ) us a rough sketch to a detailed drawing.
b. Our engineer will review the project and provide a quotation within 24 hours.
c. We can arrange production as low as 1 piece and as high as 1,000 pieces in 1~4 business days once an order is placed.
a. Email ( sales@fiberinthebox.com ) us a rough sketch to a detailed drawing.
b. Our engineer will review the project and provide a quotation within 24 hours.
c. We can arrange production as low as 1 piece and as high as 1,000 pieces in 1~4 business days once an order is placed.
