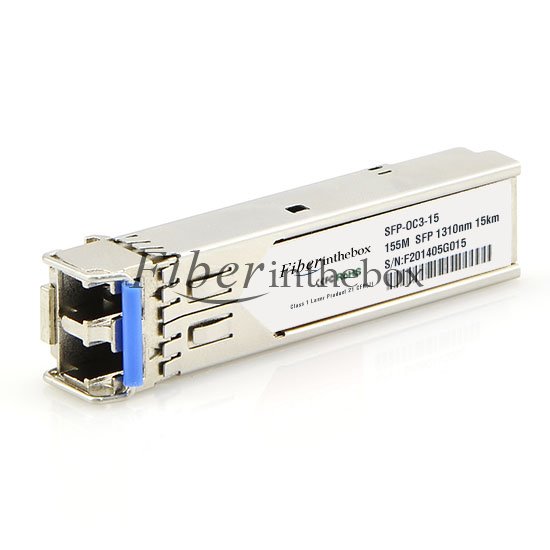

OSFP-1M55-15-xx
OC-3/STM-1 is a network line with transmission speeds of up to 155.52 Mbit/s (payload: 148.608 Mbit/s; overhead: 6.912 Mbit/s, including path overhead) using optical fibers. Depending on the system OC-3 is also known as STS-3 (electrical level) and STM-1 (SDH). These modules are also used for Fast Ethernet application.
Key Features
Data-rate of 155Mbps operation 15km with 9/125 µm SMF Hot-pluggable SFP footprint duplex LC connector Interface Class 1 FDA and IEC60825-1 Laser Safety Compliant Digital Diagnostic Monitoring Compatible with SFP MSA Compatible with SFF-8472Average Output Power:-15～-8dBm Receiver Sensitivity:-28dBm +3.3V single power supply
Applications
Fast Ethernet SDH/SONET ATM Switches and Routers Other Optical Links
Ordering Information
| Pa No. | Data Rate (Mbps) | Wavelength (nm) | TX Power (dBm) | Re Sens. (dBm) | Transmission Distance | Fiber Type | Connector Type | Temp. Range | Digital Diagnostics |
| OSFP-1M31-2-xx | ≤ 155 | 1310 | -19~ -14 | ﹤-30 | 2km | MMF | LC | Com./Ex./Ind. | Yes/NO |
| OSFP-1M31-15-xx | ≤ 155 | 1310 | -15~ -8 | ﹤-28 | 15km | SMF | LC | Com./Ex./Ind. | Yes/NO |
| OSFP-1M31-40-xx | ≤ 155 | 1310 | -5~0 | ﹤-34 | 40km | SMF | LC | Com./Ex./Ind. | Yes/NO |
| OSFP-1M31-80-xx | ≤ 155 | 1310 | 0~5 | ﹤-34 | 80km | SMF | LC | Com./Ex./Ind. | Yes/NO |
| OSFP-1M55-15-xx | ≤ 155 | 1550 | -15~ -8 | ﹤-28 | 15km | SMF | LC | Com./Ex./Ind. | Yes/NO |
| OSFP-1M55-40-xx | ≤ 155 | 1550 | 40km | SMF | LC | Com./Ex./Ind. | Yes/NO | ||
| OSFP-1M55-80-xx | ≤ 155 | 1550 | -5~0 | ﹤-34 | 80km | SMF | LC | Com./Ex./Ind. | Yes/NO |
| OSFP-1M55-100-xx | ≤ 155 | 1550 | -3~2 | ﹤-34 | 100km | SMF | LC | Com./Ex./Ind. | Yes/NO |
| OSFP-1M55-120-xx | ≤ 155 | 1550 | 0~5 | ﹤-34 | 120km | SMF | LC | Com./Ex./Ind. | Yes/NO |
| OSFP-1M55-160-xx | ≤ 155 | 1550 | 2~7 | ﹤-35 | 160km | SMF | LC | Com./Ex./Ind. | Yes/NO |
| OSFP-1M55-200-xx | ≤ 155 | 1550 | 2~7 | ﹤-45 | 200km | SMF | LC | Com./Ex./Ind. | Yes/NO |
Notes xx means compatible brand. (For example: CO= Cisco, JU=Juniper, FD=Foundry, EX=Extreme, NE=Netgear,etc. The two characters are sho for compatible brand.)
Packaging
Antistatic bag Packed on pallets in a box(Default Customer Options) Specific Labels as Request Seperate white Box for each transceiver
OEM and ODM
Combining our extensive design and engineering capability in optical transceiver industry, with our competitive advantages from integrated manufacturing capability, internal supply chain, and cost competitive and scalable operation infrastructure, Fiberinthebox provides OEM, ODM, and contract manufacturing service to world leading customers with our manufacturing facilities in China.We are also mainly engaged in providing complete sets of optoelectronic device solutions to gain more brand extensions and influence for Fiberinthebox in the world. OEM/ODM order is available We can supply OSFP-1M55-15-xx according to your requirements, and design OSFP-1M55-15-xx label and packaging for your company. We welcome any inquiry for customized SFP optical transceiver.
Order Procedure
Please contact us with any special requirements you may have, we can help you create a custom solution to meet almost any application. Our engineer will review the project and provide a quotation within 1-2 business days.
a. Email ( sales@fiberinthebox.com ) us a rough sketch to a detailed drawing.
b. Our engineer will review the project and provide a quotation within 24 hours.
c. We can arrange production as low as 1 piece and as high as 1,000 pieces in 1~4 business days once an order is placed.
a. Email ( sales@fiberinthebox.com ) us a rough sketch to a detailed drawing.
b. Our engineer will review the project and provide a quotation within 24 hours.
c. We can arrange production as low as 1 piece and as high as 1,000 pieces in 1~4 business days once an order is placed.
Details
Shipment
International Express: Fedex, DHL, UPS, TNT and EMS.If you have another preferred carrier, please notify us in advance.
FedEx Overnight: It will take 1-3 business days (weekends and holidays excepted) for delivery.
DHL: It will take 2-4 business days (weekends and holidays excepted) for delivery. For Spain, Italy, Brazil and some other countries, items will take longer time to arrive due to customs clearance period.
FedEx Overnight: It will take 1-3 business days (weekends and holidays excepted) for delivery.
DHL: It will take 2-4 business days (weekends and holidays excepted) for delivery. For Spain, Italy, Brazil and some other countries, items will take longer time to arrive due to customs clearance period.
Save Cost By Buying SFP From Original Manufacturer Fiberinthebox Directly.
Fiberinthebox is an professional manufacturer & supplier of SFP transceivers. All of our SFP transceivers are tested in-house prior to shipping to guarantee that they will arrive in perfect physical and working condition. We guarantee SFP transceivers to work in your system and all of our SFP transceivers come with a lifetime advance replacement warranty. If you have questions about SFP optics, please feel free to contact us at sales@fiberinthebox.com .
