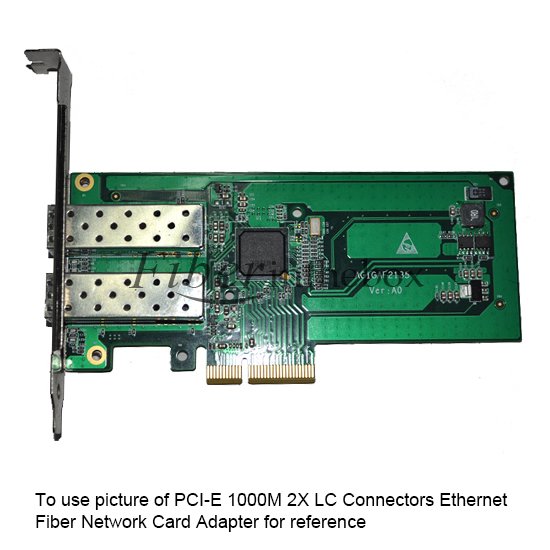

PCI-E 1000M 1* LC Connectors Fiber Optic Network Card Adapter
Description:
FIBERINTHEBOX’s Single Po SFP Gigabit Ethernet PCI Express Server adapter is PCI-Express X4 SFP
Gigabit Ethernet network interface card that is based on a single chip, non-Bridged single po GBE controller.
FIBERINTHEBOX’s Single Po SFP Gigabit Ethernet PCI Express Server adapter is designed for Servers and high-end appliances. The performance is optimized so that system I/O is not the bottleneck in high- performance networking applications.
FIBERINTHEBOX’s Single Po SFP Gigabit Ethernet server adapter is based on Intel 82572EI Single po Gigabit Ethernet MAC+PHY of Intel Controller. It suppo PCI-SIG Single-Root I/O vi ualization and sharing specification (SR-IOV).
FIBERINTHEBOX’s Single Po SFP Gigabit Ethernet PCI Express Server adapter enable fault-tolerant via teaming. Traffic from the failed po is routed through other members of the team.
FIBERINTHEBOX’s Single Po SFP Gigabit Ethernet PCI Express Server adapter has an integrated hardware acceleration that performs TCP/UDP/IP checksum offload and TCP segmentation.
The host processing offloads accelerators frees CPU for application processing.
FIBERINTHEBOX’s Single Po SFP Gigabit Ethernet PCI Express Server adapter is the ideal solution for implementing multiple network segments, mission-critical high-powered networking applications and environments within high performance servers.
Key Features:
Performance Features:
• 8 Transmit and 8 Receive queues per po
• Up to 8 queues of Receive Side Scaling (RSS) minimize CPU utilization across multiple processor systems
• Suppo PCI-SIG Single-Root I/O vi ualization Rev 1.1.
• Suppo for up to 8 vi ual function ( VFs)
• Pa ial replication of PCI Configuration space
• Suppo for 8 pools (single queue) of vi ual machine Device Queues (VMDq) per po
• Suppo Direct Cache Access (DCA)
• TSO interleaving for reduced latency
• Minimized device I/O interrupts using MSI and MSI-X
• UDP, TCP and IP checksum offload
• UDP and TCP transmit segmentation offload (TSO). machine
• SCTP receive and transmit checksum offload
• Packet interrupt coalescing timers (packet timers) and absolute-delay interrupt timers for both transmit and receive operation
SFP Gigabit Ethernet:
Gigabit Ethernet Adapters with SFP cage suppo :
• 1000Base-LX Fiber Gigabit Ethernet with 1000Base-LX SFP transceiver.
• 1000Base-SX Fiber Gigabit Ethernet with 1000Base-SX SFP transceiver
• SFP (1000Mb/s) Copper Gigabit Ethernet with SFP transceiver
• Small Form Factor Pluggable (SFP) Cage for SFP LC connectors
• 1 Po Link synchronization
• Optional SGMII mode (future suppo )
Common Key features:
• Suppo 10, 100, and 1000 Mbps Speed Rate
• High performance, reliability, and low power use in Intel 82572EI Single integrated MAC + PHY and SERDES chip Controllers.
• Ultra deep, packet buffer per channel lowers CPU utilization.
• Hardware acceleration that can offload tasks from the host processor. The Controllers can offload TCP/UDP/IP checksum calculations and TCP segmentation.
• Priority queuing – 802.1p layer 2 priority encoding.
•Vi ual LANs –802.1q VLAN tagging.
• Jumbo Frame (9.5KB)
• 802.x flow control
• Multicast/ broadcast Packet replication
• Suppo s Vital Product Data (VPD)
• LEDs indicators for link/Activity status
Specifications
Technical :
|
SFP Gigabit Ethernet Technical - (SFP) Adapters:
|
|
SFP (Small Form Factor
Pluggable) supports:
|
1Gb SERDES interfaces supports 1000Base-X in order to connect with SFP to 1000Base-SX /1000Base-LX / 1000Base-T SFP transceivers.
|
|
IEEE Standard /Network Topology :
with 1000Base-T SFP
|
Gigabit Ethernet (1000Mb/s only), 1000Base-T,
|
|
IEEE Standard/Network topology:
with 1000Base-SX SFP
|
Fiber Gigabit Ethernet, 1000Base-SX (850nM)
|
|
IEEE Standard/Network topology: with 1000Base-LX SFP
|
Fiber Gigabit Ethernet, 1000Base-LX (1310nM)
|
|
SFP Gigabit Ethernet Technical (SFP 1000Base-SX) Adapters:
|
|
IEEE Standard/Network topology: with 1000Base-SX SFP
|
Fiber Gigabit Ethernet, 1000Base-SX (850nM)
|
|
Cables and Operating distance:
|
Multimode fiber:
220m at 62.5 um
550m at 50 um
|
|
Optical Output Power:
|
Typical: -5.97 dBm
Maximum: -17 dBm
|
|
Optical Receive Sensitivity:
|
Typical: -19.69 dBm
Maximum: -17 dBm
|
|
SFP Gigabit Ethernet Technical (SFP 1000Base-LX) Adapters:
|
|
IEEE Standard/Network topology: with 1000Base-LX SFP
|
Fiber Gigabit Ethernet, 1000Base-LX (1310nM)
|
|
Cables and Operating distance:
|
Single-Mode: 5000m at 9um
Multimode fiber: 550m at 50 um 550m at 62.5 um
|
|
Cables and Operating distance:
Up to:
|
Single-Mode: 10000m at 9um
|
|
Optical Output Power:
|
Typical: -5.87 dBm
Minimum: -3 dBm
|
|
Optical Receive Sensitivity:
|
Typical: -25.35 dBm
Maximum: -19 dBm
|
|
Operating Systems Support
|
|
Operating system support:
|
Windows 2003
Windows 2000
Windows XP
Windows NT
Netware
Linux
FreeBSD
Unix:
SCO Open Server
UnixWare / OpenUnix 8
Solaris X86
|
|
General Technical
|
|
Interface Standard:
|
PCI-Express Base Revision 2.1 ( 5 GTs)
|
|
Board Size:
|
16 7 .15mm x 68.91mm (6. 6 0”X2.713”)
|
|
PCI Express Card Type:
|
X4 Lane
|
|
PCI Express Voltage:
|
+3.3V +-9%,
+12V +- 8%
|
|
PCI Connector:
|
Gold Finger: X4
|
|
Controller:
|
INTEL 82572EI
|
|
I/O:
|
1 x SFP located on edge of the board
|
|
Weight:
|
150 gram ( 5.29 oz)
|
|
Power Consumption:
|
5.64W, 0.47 A at 12V: Typical all ports operate at 1000 BASE-LX
5.28 W, 0.44 A at 12V: No links in all ports operate with LX transceivers 4.8 W, 0.4A at 12V: Typical all ports operate at 1000 BASE-SX
4.56 W, 0.38 A at 12V: No links in all ports operate with SX transceivers
7.44 W, 0.62A at 12V: Typical all ports operate at 1000 BASE-T
3.6 W,0.3 A at 12V: No links in all ports operate at 1000 BASE-T
2.76 W,0.23A at 12V: Without transceivers
|
|
Holder:
|
Metal Bracket
|
|
Operating Humidity:
|
0%–90%, non-condensing
|
|
Operating Temperature:
|
0°C – 45°C (32°F - 113°F)
|
|
Storage:
|
-40°C–65°C (-40°F–149°F)
|
|
EMC Certifications:
|
FCC Part 15, Subpart B Class A
Conducted Emissions
Radiated Emissions
CE EN 55022: 1998 Class A Amendments A1: 2000; A2: 2003 Conducted Emissions
Radiated Emissions
CE EN 55024: 1998 Amendments A1: 2000; A2:2003
Immunity for ITE Amendment A1: 2001
CE EN 61000-3-2 2000, Class A
Harmonic Current Emissions
CE EN 61000 3-3 1995, Amendment A1: 2001
Voltage Fluctuations and Flicker
CE IEC 6100-4-2: 1995
ESD Air Discharge 8kV. Contact Discharge 4kV.
CE IEC 6100-4-3:1995
Radiated Immunity (80-1000Mhz), 3V/m 80% A.M.by 1kHz
CE IEC 6100-4-4:1995
EFT/B: Immunity to electrical fast transients 1kV Power
Leads, 0.5Kv Signals Leads
CE IEC 6100-4-5:1995
Immunity to conductive surges COM Mode; 2kV,
Dif. Mode 1kV
CE IEC 6100-4-6:1996
Conducted immunity (0.15-80 MHz) 3VRMS 80% A.M. By 1kHz
CE IEC 6100-4-11:1994
Voltage Dips and Short Interruptions
V reduc >95%, 30% >95% Duration 0.5per,25per, 250per
|
|
MTBF:
|
66 (Years)
* According to Telcordia SR332. Environmental condition – GB (Ground, Fixed,
and Controlled). Ambient temperature 40°C
|
|
LEDs
|
|
LEDs:
|
1 LEDs per port
Left LED : Link:
Turns on Yellow Any Speed Link .
Right LED : Link/Act :
Turns on link (Green),
Blinks on activity (Green)
|
|
LEDs location:
|
LEDs are located on the PCB, visible via holes in the metal bracket. Each Green Link/Act and Link Speed LEDs is located
above their own SFP connector port by light pipes.
|
|
Connectors:
|
LC Small Form Factor Pluggable (SFP) Cage (4X1)
|
Order Information:
|
P/N
|
Description
|
Notes
|
|
FS1GF82572
|
Single Port SFP Gigabit Ethernet PCI Express Server Adapter
|
X4, Based on INTEL 82572EI, RoHS compliant
|
|
FS1GF82572-SX
|
Single Port SFP(SX) Gigabit Ethernet PCI Express Server Adapter
|
X4, Based on INTEL 82572EI, RoHS compliant
|
|
FS1GF82572-LX
|
Single Port SFP(LX)Gigabit Ethernet PCI Express Server Adapter
|
X4, Based on INTEL 82572EI, RoHS compliant
|
