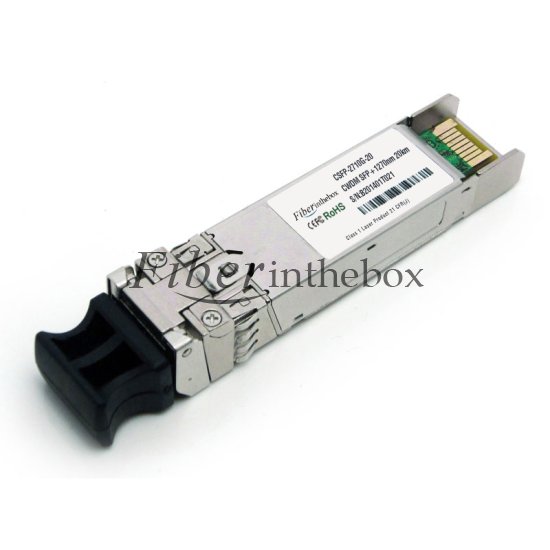

CSFP-10GXX-20-xx
The CSFP-10GXX-20-xx series optical transceiver is designed for fiber communications application such as 10G Ethernet (10GBASE-LR), which fully compliant with the specification of SFP+ MSA SFF-8431.This module is designed for single mode fiber and operates at a nominal wavelength of CWDM wavelength. There are four center wavelengths available from 1270nm to 1330nm, with each step 20nm. A guaranteed minimum optical link budget of 10 dB is offered.The module is with the SFP+ connector to allow hot plug capability. Single 3.3V power supply is needed. The optical output can be disabled by LVTTL logic high-level input of TX_DIS. Loss of signal (RX_LOS) output is provided to indicate the loss of an input optical signal of receiver.This module provides digital diagnostic functions via a 2-wire serial interface as defined by the SFF-8472.
Key Features
Suppo s 9.95Gb/s to 11.1Gb/s bit rates Hot-Pluggable SFP+ footprint Average Output Power:-5~0dBmReceiver Sensitivity:-15dBm4-Wavelength CWDM DFB Transmitter from 1270nm to 1330nm, with step 20nm 10dB Power Budget at Least Duplex LC connector Power Dissipation < 1.2W Compliant with SFP+ MSA Specification SFF-8431Build-in digital diagnostic functionsCompliant with SFF-8472 MSACase operation temperature range 0℃ to 70℃
Applications
10GBASE-LR/LW 10G Ethernet10GBASE-LR at 10.31Gbps 10GBASE-LW at 9.95GbpsOther Optical Link
Ordering Information
| Pa No. | Data Rate (Gbps) | Wavelength (nm) | TX Power (dBm) | Re Sens. (dBm) | Transmission Distance | Fiber Type | Connector Type | Temp. Range | Digital Diagnostics |
| CSFP-10GXX-10-xx | 9.95~11.1G | 1270 ~1330 | -5~0 | ﹤-15 | 10km | SMF | LC | 0~70℃ | Yes |
| CSFP-10GXX-10-xx | 9.95~11.1G | 1350 ~1610 | -5~0 | ﹤-15 | 10km | SMF | LC | 0~70℃ | Yes |
| CSFP-10GXX-20-xx | 9.95~11.1G | 1270 ~1330 | -5~0 | ﹤-15 | 20km | SMF | LC | 0~70℃ | Yes |
| CSFP-10GXX-20-xx | 9.95~11.1G | 1350 ~1450 | -5~0 | ﹤-15 | 20km | SMF | LC | 0~70℃ | Yes |
| CSFP-10GXX-40-xx | 9.95~11.1G | 1270 ~1450 | -2~3 | ﹤-16 | 40km | SMF | LC | 0~70℃ | Yes |
| CSFP-10GXX-40-xx | 9.95~11.1G | 1470 ~1610 | -1~4 | ﹤-15.8 | 40km | SMF | LC | 0~70℃ | Yes |
| CSFP-10GXX-60-xx | 9.95~11.1G | 1270 ~1450 | 60km | SMF | LC | 0~70℃ | Yes | ||
| CSFP-10GXX-80-xx | 9.95~11.1G | 1470 ~1610 | 0~4 | ﹤-23 | 80km | SMF | LC | 0~70℃ | Yes |
Notes XX means CWDM wavelength (27 = 1270nm, 29 =1290nm, 31 = 1310nm, 61 = 1610nm, etc., with step 20nm) xx means compatible brand. (For example: CO= Cisco, JU=Juniper, FD=Foundry, EX=Extreme, NE=Netgear,etc. The two characters are sho for compatible brand.)
