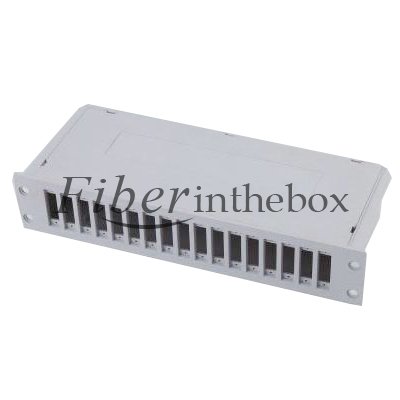

1x32 Inse Casette PLC Splitter Module
Note: Fiberinthebox's PLC splitter casette is designed to Blade Package Type, we offer the product just a empty box, not including Mini-Splitter and Adapte. Specified without connectors. Add an additional 0.15dB loss per connector.
Features
Low PDL Compact Design, and using PC meterial Low Inse ion loss High Reliability and Stability Good channel-to-channel uniformity Operating Temperature: -40℃ to 85℃ Operating Wavelength: 1260nm to 1650nm
Applications
Compliance
Performance Index
| Parameters |
1×2
|
1×4
|
1×8
|
1×16
|
1×32
|
1×64
|
1×128
|
|
Operating Wavelength (nm)
|
1260～1650
|
||||||
| Materials |
PC
|
||||||
|
Fiber Type
|
G657A1 or customer specify
|
||||||
|
Inse ion Loss (dB)（P/S Grade）
|
3.8/4.0
|
7.1/7.3
|
10.2/10.5
|
13.5/13.7
|
16.5/16.9
|
20.5/21.0
|
23.8/24.2
|
| Loss Uniformity (dB) |
0.4
|
0.6
|
0.8
|
1.2
|
1.5
|
2
|
2.5
|
| Polarization Dependent Loss(dB) |
0.2
|
0.2
|
0.2
|
0.25
|
0.3
|
0.35
|
0.4
|
| Return Loss (dB)（P/S Grade） |
55/50
|
55/50
|
55/50
|
55/50
|
55/50
|
55/50
|
55/50
|
| Directivity (dB) |
55
|
55
|
55
|
55
|
55
|
55
|
55
|
| Wavelength Dependent Loss(dB) |
0.5
|
0.5
|
0.5
|
0.5
|
0.5
|
0.5
|
0.5
|
| Temperature Stability (dB) |
0.5
|
0.5
|
0.5
|
0.5
|
0.5
|
0.5
|
0.5
|
| Operating Temperature (℃) |
-40～85
|
||||||
| Storage Temperature (℃) |
-40～85
|
||||||
| Inse packaging size (mm) |
130×100×25
|
130×100×25
|
130×100×25
|
130×100×25
|
267×100×50
|
N/A
|
N/A
|
