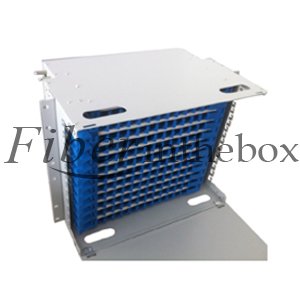

144 Fibers ODF 19'' Rack Mount Distribution Box FITB-ODF-144-A

Description

Fiberinthebox 19'' ODF rack mount can be installed on standard 19'' racks and currently being widely used in optical fiber distribution frames. Customer's special requirements are welcomed.

Functions

Optical cable fixation and protection Optical cable termination Patching Protection of optical fiber and pigtail

Key Features

For standard 19'' racks use (other rack width options available on request) Fully stable patch panel, no risk of movement Protected patch panel offers secure environment for adapters, patch cords and pigtails Top quality steel with cover by electrostatic painted ensures the strong body and pleasing appearance Inlet the fiber is more convenient than the B type, fiber splice also do the upgrade Height: depends on capacity, one Integrated Splice & Distribution unit which has the capacity of 12 core within 1U height ROHS compliant

Kind Reminder

The price is for 144 cores ODF does not come with adapters and pigtails, if you need adapters or pigtails, please contact us at sales@fiberinthebox.com . Thank you!

Specifications

Dimension (mm): 480*300*340 Capacity: 144 fibers Fusion Tray: 12C X 12 Relative humidity: ≤ 85% (30°) Air pressure: 70KPa~106Kpa Working temperature: -10℃~+60℃ Storage temperature: -25℃~+85℃

Picture Details
