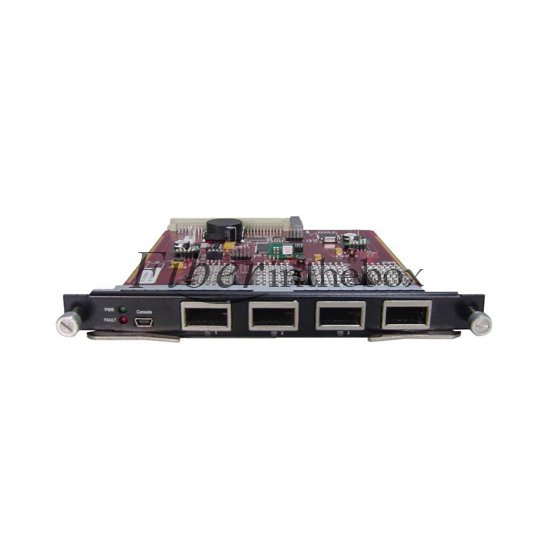

4 Slots 10G XFP FITB-OEO800-10G Optical Fiber Link Wavelength Converter

SKU#:FITB83928QNQ
Model#: FITB-OEO800-10G
Price: US$ 2,318.00
Sold: 2071
Availability: In Stock
Qty:
Direct Factory Price Contact Us: Sales@fiberinthebox.com
QtyPrice QtyPrice QtyPrice QtyPrice QtyPrice
1-9US$ 2,318.00 10-19US$ 2,271.64 20-49US$ 2,225.28 50-99 Sign in to view 100+ Sign in to view
fiberinthebox-bbb-a-plus-certification fiberinthebox-product-certification
FITB-OEO800-10G Board Overview
FITB-OEO800-10G is an optical fiber link wavelength conve er (fiber amplifier). It regenerates optical signals in the principle of optical-electrical-optical to realize the amplification and wavelength conversion of optical signals. Wavelength division multiplexing can be realized by using C/DWDM multiplexer/de-multiplexer, which especially applies to optical transpo systems such as 125M/155M/622M/1G/2G5/s SDH/SONET, Ethernet etc. It provides rapid and cost-efficient solutions to regeneration of optical signals as well as transmission of rare fiber resources.

Key Features
It suppo s a maximum po rate of 10Gb/s The wavelength of the transmitter is at C-Band,which suppo s DWDM wavelengths in compliance with ITU-T standards It can be operated and controlled independently It suppo s automatic loopback test It suppo s CDR function, which can optimize outputIt suppo s 3R function. For neighboring po s, the way for data transmission can be set
Front Panel Appearance
Valid Slots
The FITB-OEO800-10G board occupies one slot.
Valid Slots in the Sub-racks
a. In the OEO802 chassis, valid slots of the board are SLOT1 and SLOT2.
b. In the FITB-OEO800-I chassis, valid slots of the board are SLOT2 to SLOT4.
c. In the FITB-OEO800-II chassis, valid slots of the board are SLOT2 to SLOT8.
d. In the FITB-OEO800-V chassis, valid slots of the board are SLOT1 to SLOT15.
Application
The FITB-OEO800-10G board is mainly used to access four channels of signals at 10Gbit/s, and conve the signals into DWDM standard wavelength compliant with ITU-T G.694.1. Moreover, the conversion in the reverse direction can be achieved. The optical po s on the WDM side provide the dual fed and selective receiving function.


Working Principle and Signal Flow
Flow of Transparent Transmission of Two Channels of Signals at Any Rate


Flow of Regeneration of Four Channels of OTU Signals


For the signal flow of the FITB-OEO800-10G, the transmitting and the receiving directions are defined. The transmitting direction is defined as the direction from the client side to the WDM side, and the receiving direction is defined as the reverse direction.
include electrical specifications, optical specifications, laser level, mechanical specifications and power consumption.

Parameter

Module Type:10Gbps

Transimission Distance (km)

~ 0.3

~10

~40

~80

Laser Type

VCSEL

DML

EML

EML

Center Wavelength (nm)

840~860

1290~1330

1530~1565

1530 ~ 1565

Maximum Spectral Width (nm)

1

1

1

1

Side Mode Suppression Ratio (dB)

-

30

30

30

Average Output Power (dBm)

-7 ~ -1

-6 ~ -1

-1 ~ 2

0 ~ 4

Extinction Ratio (dB)

> 3

> 6

> 8.2

> 9

Receive Type

PIN

PIN

PIN

APD

Minimum Load (dBm)

-3

0

-9

-9

Receive Sensitivity (dBm)

< -10

< -11

< -14

<-24

Maximum Dispersion Tolerance (ps/nm)

n.a.

35

800

1600

Optical Path Penalty (dB)

1

1

1

2

Maximum Return Loss (dB)

-27

-27

-27

-27



CWDM application and PIN receipt, target to reach a transmission distance of 40KM

Parameter

Unit

Index





Minimum Value

Typical Value

Maximum Value

Operating Rate

Gb/s



10.3G



Receiver Part

Center Wavelength

nm

C Band 40 tunnels 1530~1565

Sensitivity

dBm





-14

Overload Point

dBm

-9





Return Loss

dB

27





Transmitter part

Wavelength Range

nm

-0.11



+0.11

Spectral Width (-20dB)

nm





1

Side Mode Suppression Ratio (dB)

dB

30





Average Optical Power

dBm

-2



1

Extinction Ratio

dB

9





Optical Path Penalty

dB





2

Eye Diagram

In line with IEEE802.3


CWDM application and APD receipt, target to reach a transmission distance of 80KM

Parameter

Unit

Index





Minimum Value

Typical value

Maximum

Value

Operating Rate

Gb/s



10.3



Receiver Part

Center Wavelength

Nm

C Band 40 tunnels 1525~1625

Sensitivity

dBm





-24

Overload Point

dBm

-9





Return Loss

dB

27





Transmitter Part

Wavelength Range

nm

-0.11



+0.11

Spectral Width (-20dB)

nm





1

Side Mode Suppression Ratio

dB

30





Average Optical Power

dBm

0



4

Extinction Ratio

dB

9





Optical Path Penalty

dB





2.5

Eye Diagram

In line with IEEE802.3
