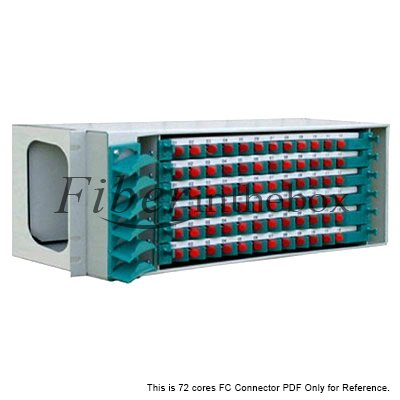

72 Fibers FC 4U Rack Mount Optic Distribution Frame with pigtails and adapters FS-ODF-A-72
Fiberinthebox offers different types of ODF Rack Mount Distribution Box, rack-mount optical fiber distribution frame is modulated design with draw able trays inside and cold-rolled steel box.The optical distribution frame is with standard 19 inch size and it is properly designed to control the bend radius of the cable inside the enclosure to avoid extra optical loss.
FS-ODF-A-72 could be pre-installed with various kinds of optical fiber adapters and pigtails.It is available for ribbon & common cable, it can protect the connection & pigtail,install adapter respectively.We offer the optical fiberal distribution frame with 1U 12 po s type, 2U 24 po s, 3U 36po s and 48 po s, 4U 72 po s and 6U 96 po s types.
Note: Our default Rack Mount ODF with Simplex UPC connector, singlemode 1.5m ribbon fiber pigtails and adapters corresponding number of fibers. If you have special demands, just email us: sales@fiberinthebox.com
FS-ODF-A-72 could be pre-installed with various kinds of optical fiber adapters and pigtails.It is available for ribbon & common cable, it can protect the connection & pigtail,install adapter respectively.We offer the optical fiberal distribution frame with 1U 12 po s type, 2U 24 po s, 3U 36po s and 48 po s, 4U 72 po s and 6U 96 po s types.
Detail Parameters
Dimension(mm):480*210*4U Max fiber capacity 72 fibers Available for 12 fibers FC adapters (Optional SM, MM or APC/SM) Pigtails: 1.5m 12 fibers pigtailsFusion Tray: 12C X 6Relative humidity: ≤ 85% (30°) Air pressure: 70KPa~106Kpa Working temperature: -10℃~+60℃ Storage temperature: -25℃~+85℃ Installation Method:rack mount Several adapters can be installed: FC, SC, ST, LC Meterial: Metal
Application
Fiber to the home (FTTH) Telecommunications subscriber loop LAN/WAN CATV
Package
72 fiber ODF+6x(12 fiber pigtails+12 fiber FC adapters)
