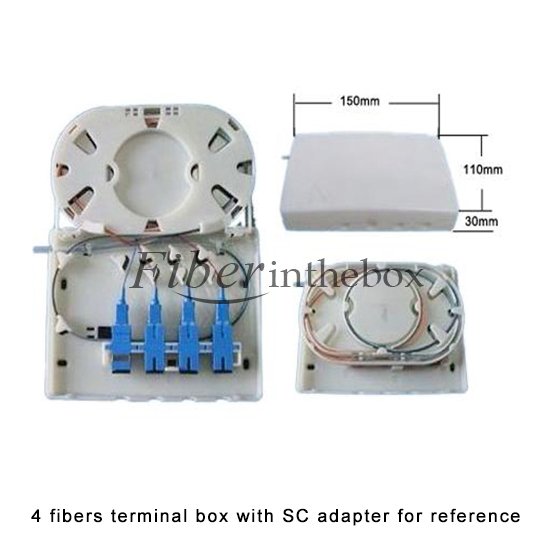

4 Fibers FC Wall Mounted Fiber Terminal Box as Distribution Box with Pigtails and Adapters

4 Fibers FTB-0104 FC Full set of Wall Mounted Plastic Fiber Terminal Box as Distribution Box with Pigtails and Adapters

FTB Series FTTH customer terminal box is used in the end termination of residential buildings and villas, to fix and splice with pigtails. We offer the full set of plastic terminal box as distribution box, including 0.9mm pigtail and related adapter.

Features

Small size, light weight, pleasing in appearance Wall mounted with mechanical protection function Max fiber capacity 4 fibers Available for 4 fibers FC adapers (Optional SM, MM or APC/SM)Meterial: Plastic Hinge and convenient press-pull button lock design

Applications

Widely used in FTTH access network. Telecommunication Networks CATV Networks Data Communications Networks Local Area Networks

Make To Order

Fiber Mode	Fiber Count	Connector Type
Singlemode: 9/125	4 Fibers (Plastic) 8 Fibers (Plastic) 12 Fibers (Metal) 24 Fibers (Metal)	FC/SC/ST/LC - UPC FC/SC/ST/LC - APC (APC only applicable to SM)
Multimode: 62.5/125
Multimode:50/125
Multimode: 10G 50/125

Packaging

1xPlastic Terminal Box + 1x(0.9mm 4 Fibers Pigtails + 4 Fibers FC Adapters)
