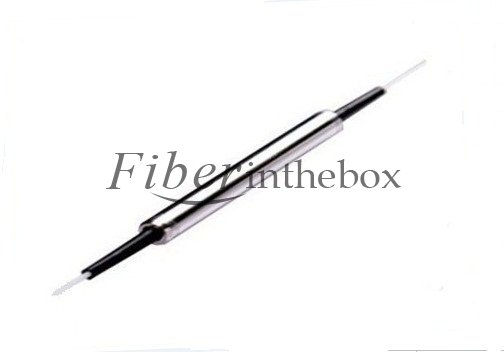

The High Power Isolator series products include high power isolator and high power collimator.The high power isolator series includes in-line type, beam expanded isolator, fiber in and free space out isolator and free space isolator etc.1310/1480/1550nm High Power Polarization Maintaining Isolator is one of in-line type isolator.They’re characterized with low inse ion loss, high isolation, high power handling, high return loss, excellent environmental stability and reliability. They are ideal for fiber laser and instrumentation applications.
|
Parameter |
Value |
|
Center wavelength λc (nm) |
980 |
|
Bandwidth(nm) |
±10 |
|
Peak isolation (dB) |
32 |
|
Isolation at λc 23℃(dB) |
≥25 |
|
Type Inse ion Loss at 23℃(dB) |
0.8 |
|
Inse ion Loss at 23℃(dB) |
≤1.0 |
|
Extinction Ratio (dB) |
≥20 |
|
Return loss (Input/output) (dB) |
≥50/50 |
|
Power handling (mW) |
≤300 |
|
Fiber Type |
Panda fiber |
|
Operating temperature (℃) |
-5~+50 |
|
Storage temperature (℃) |
-20 ~ +75 |
|
Package(mm) |
118*32*32 |
|
Above specifications are for devices without the connectors. |
|
Dimension
.jpg)
Order Information
|
PMIS |
Wavelength |
Axis Alignment |
Pigtail Type |
Fiber Type |
Length |
Connector |
Package size |
|
PMIS |
980nm |
F=Fast Axis blocked |
250=250um bare fiber |
5=Panda fiber |
0.8=0.8 |
NE=None |
118x32x32 |
