24 Fibers FS (05) A-24A SC Outdoor Wall Mountable Fiber Terminal Box as Distribution Box with Pigtails and Adapters

24 Fibers FS(05) A-24 SC Full set of Wall Mounted Metal Fiber Terminal Box as Distribution Box with Pigtails and Adapters

FTB Series FTTH customer terminal box is used in the end termination of residential buildings and villas, to fix and splice with pigtails. We offer the full set of plastic terminal box as distribution box, including 0.9mm pigtail and related adapter.

Features

Small size, pleasing in appearance Wall mounted with mechanical protection function Max fiber capacity 24 fibers Available for 12 fibers SC adapers (Optional SM, MM or APC/SM)Pigtails: 1.5m 12 fibers pigtailsMeterial: Metal Hinge and convenient press-pull button lock design

Applications

Widely used in FTTH access network. Telecommunication Networks CATV Networks Data Communications Networks Local Area Networks

Make To Order

Fiber Mode	Fiber Count	Connector Type
Singlemode	4 Fibers (Plastic) 8 Fibers (Plastic) 12 Fibers (Metal) 24 Fibers (Metal)	FC/SC/ST/LC - UPC FC/SC/ST/LC - APC (APC only applicable to SM)
Multimode

Packaging

1xMetal Terminal Box + 2x(0.9mm 12 Fiber Pigtails + 12 Fibers SC Adapters)

Kindly Remind

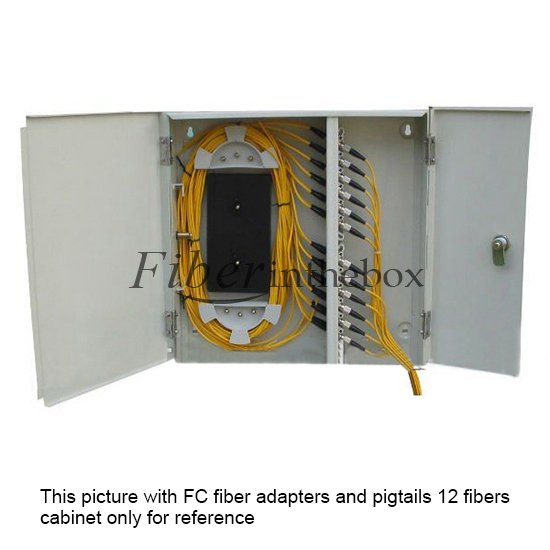

As the box is big, it defaults to the 12 fiber bunch pigtails. The metal distribution box also matches the pigtails with 12 different colors, if you need, please specify when ordering.
