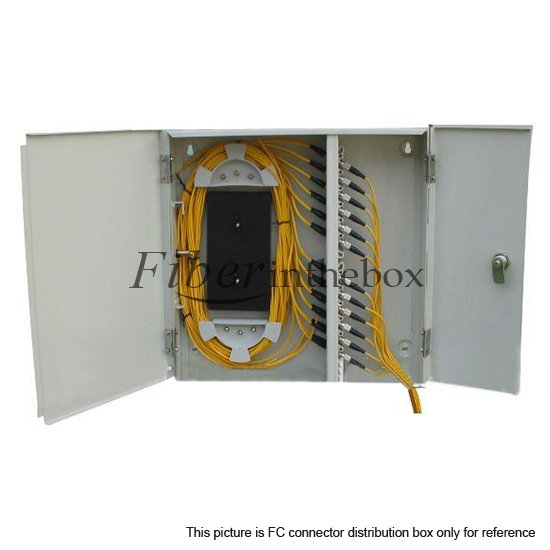

24 Ports Fiber Terminal Box As distribution box Indoor Wall Mountable

24 Po s Modular Fiber Termination Box Indoor Wall Mountable available FC/SC/ST/LC Adapter

Indoor Wall Mount Fiber Enclosures can be supplied empty or fully loaded with adapters and pigtails.They provide efficient cable connections between outside plant cables and equipment inside the buildings and communications facilities.

Features

Suitable for ribbon and bunchy fiber cables Fiber splice trays can be installed and changed easily Small dimension and exquisite and easy for operation Standard cell structure size, wall mounted patch panel Capacity: 24 po s Suitable for SC, FC, ST Simplex & LC Duplex

Specifications

Technology: Electrostatic spraying Material: SPCC or AL or customized Color: Milk White Compliant with ISO: 9001, RoHS, UL, Bellcore ce ification Atmosphere pressure: 70KPa~106KPa Type: Dual door open Po Number: 24 Po Max. Capacity of Fiber: 24 Fibers Dimensions: 350x350x80 mm

Standard Package

FS-05A24A-24C

Metal Box Metal Rack Fusion Module Fiber heat shrinkable tube and accessories etc (not contains adapter and pigtail)
