8 Slots 2.5G SFP FITB-OEO800-TMUX-2G5 Optical Muxponder Service Board

FITB-OEO800-TMUX-2G5 Optical Muxponder Service Board

FITB-OEO800-TMUX-2G5 is a kind of Muxponder service board developed by Fiberinthebox. It can transparently gather 2*1.25G data to 1*2.5G data, as well as provide 1+1 data backup for 2*2.5G po s, which can tremendously save room for WDM modules and fiber resources, strengthen stability, as well as save cost.

Key Features

It provides 8 standard SFP slots, including 4 GE po s at the client side and 4 2.5G po s at the line side GE po s at the client side are isolated from each other It suppo s 1+1 backup protection for 2.5G po s at the line side It suppo s cross mapping of the data of all po s It suppo s statistics on error packet of each po It suppo s loopback setting of the client side and the line side It suppo s SNMP network management

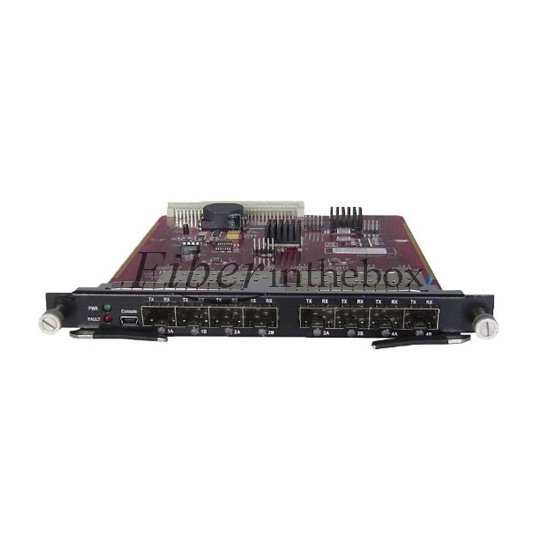

Front Panel Appearance

Valid Slots

The FITB-OEO800-MUX(2G5) board occupies one slot.
Valid Slots in the Sub-racks
a. In the OEO802 chassis, valid slots of the board are SLOT1 and SLOT2.
b. In the FITB-OEO800-I chassis, valid slots of the board are SLOT2 to SLOT4.
c. In the FITB-OEO800-II chassis, valid slots of the board are SLOT2 to SLOT8.
d. In the FITB-OEO800-V chassis, valid slots of the board are SLOT1 to SLOT15.

Application

　MUX (2G5) achieves multiplexing of four Gigabit Ethernet service to two 2.5G link, thereby reduces wavelength requirements of the WDM system. There are 4 pluggable SFP po s at the client side and 4 pluggable XFP po s at the line side.

Working Principle and Signal Flow

include electrical specifications, optical specifications, laser level, mechanical specifications and power consumption.

Transmission Rate
Client Side	1000BaseFX、1000BaseTX
Line Side	2.5G
Transmission Interface
Client Side	4 pluggable SFP
Line Side	4 pluggable SFP
Operating Environment
Temperature	-10 to 50 °C
Humidity	5 to 95%
Power Consumption
Power Consumption of Boards	<15W
