New 14dB SDH EDFA Single Wavelength BA Erbium-Doped Optical Fiber Amplifier

Payment & Guarantee Support

New 14dB SDH EDFA Single Wavelength BA Erbium-Doped Optical Fiber Amplifier

Name: New 14dB SDH EDFA Single Wavelength BA Erbium-Doped Optical Fiber Amplifier
Brand: Fiberinthebox
Price: 1,810.70 USD
Availability: In Stock
Rating: 5.0 (59 reviews)

SKU#:FITB85313RDR

Model#: FITB-OEO800-EDFA-BS-14

Evaluate: (No review) Write a Review

Price: US$ 1,810.70

Sold: 618

Availability: In Stock

Lifetime Warranty Processing Time

Direct Factory Price Contact Us: Sales@fiberinthebox.com
Qty	Price	Qty	Price	Qty	Price	Qty	Price	Qty	Price
1-9	US$ 1,810.70	10-19	US$ 1,774.49	20-49	US$ 1,738.27	50-99	Sign in to view	100+	Sign in to view

Description

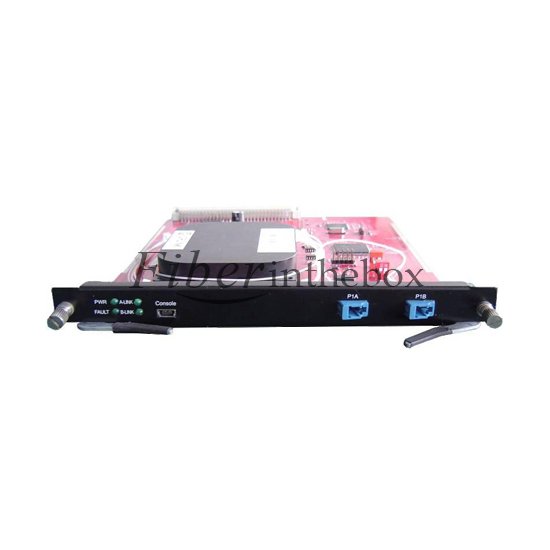

FITB-OEO800-EDFA Single Wavelength BA Series

FITB-OEO800-EDFA is a kind of erbium-doped optical fiber amplifier. It can regenerate optical signals of multiple wavelengths without conversion from optical to electrical to optical, which prolongs the transmission distance. Wavelength division multiplexing can be realized by using C/DWDM multiplexer or de-multiplexer, which specially applies to long-haul backbone network, metropolitan area network, access network as well as various SDH/PDH transmission systems.

Key Features

The gain can be adjusted if required It is with high gain, low noise and good gain flatness ACC, APC and AGC are optional It suppo s amplifcation on the two stages, OADM or DCM modules can be accessed in the middle It is with small-size and modular design and suppo s hot swapParameters of graphical interfaces can be set and viewedBA: Power Amplifier PA: Preamplifier

Specification

Parameter		Minimum Value	Typical Value	Maximum Value	Unit
Operating Wavelength		1530	1550	1565	nm
Input Power	2.5G or lower	-6		4	dBm
Input Power	10G	-10		4	dBm
Output Power				19	dBm
Adjustment Range of Output Power				6	dB
Noise Index			5		dB
Input/Output Isolation		30			dB
Input/Output Return Loss		45			dB

Typical Application Cases of FITB-OEO800 Series

Site-to-Site Standard Transmission

Site-to-Site Ultra-Long-Haul Transmission With Repeater

Ultra-Long-Haul Repeaterless Transmission

Unidirectional WDM Transmission

Specifications

Parameter		Minimum Value	Typical Value	Maximum Value	Unit
Operating Wavelength		1530	1550	1565	nm
Input Power	2.5G or lower	-6		4	dBm
Input Power	10G	-10		4	dBm
Output Power				19	dBm
Adjustment Range of Output Power				6	dB
Noise Index			5		dB
Input/Output Isolation		30			dB
Input/Output Return Loss		45			dB
