FITB-OEO800-2G5 Board Overview
FITB-OEO800-2G5 is an optical fiber link wavelength conve er (fiber amplifier). It regenerates optical signals in the principle of optical-electrical-optical to realize the amplification and wavelength conversion of optical signals. Wavelength division multiplexing can be realized by using C/DWDM multiplexer/de-multiplexer, which especially applies to optical transpo systems such as 125M/155M/622M/1G/2G5/s SDH/SONET, Ethernet etc. It provides rapid and cost-efficient solutions to regeneration of optical signals and transmission of rare fiber resources.
Key Features
It suppo s a maximum po rate of 2.5Gb/s, and is compatible with 125M/155M/622M/1.25G The wavelengths of the transmitter is at C-Band, which suppo s DWDM wavelengths in compliance with ITU-T standards It can be operated and controlled independently It suppo s automatic loopback test It suppo s CDR function, which can optimize outputIt suppo s shut-down when there is no optical signal

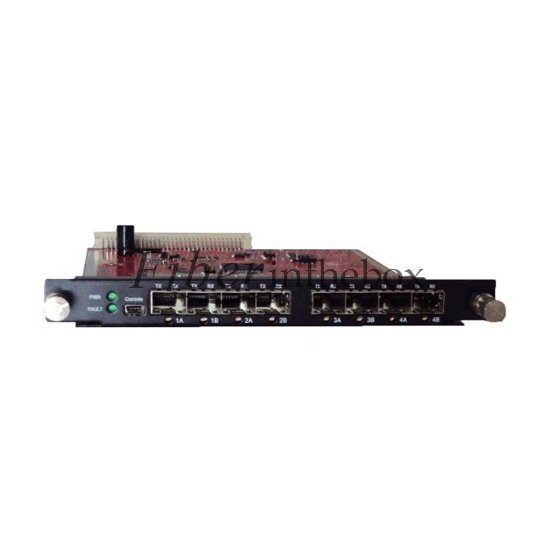

Front Panel Appearance
Valid Slots
The FITB-OEO800-2G5 board occupies one slot.
Valid Slots in the Sub-racks
a. In the OEO802 chassis, valid slots of the board are SLOT1 and SLOT2.
b. In the FITB-OEO800-I chassis, valid slots of the board are SLOT2 to SLOT4.
c. In the FITB-OEO800-II chassis, valid slots of the board are SLOT2 to SLOT8.
d. In the FITB-OEO800-V chassis, valid slots of the board are SLOT1 to SLOT15.
Valid Slots in the Sub-racks
a. In the OEO802 chassis, valid slots of the board are SLOT1 and SLOT2.
b. In the FITB-OEO800-I chassis, valid slots of the board are SLOT2 to SLOT4.
c. In the FITB-OEO800-II chassis, valid slots of the board are SLOT2 to SLOT8.
d. In the FITB-OEO800-V chassis, valid slots of the board are SLOT1 to SLOT15.
Application
Working Principle and Signal Flow
Flow of Transparent Transmission of Four Channels of Signals at Any Rate
Flow of Regeneration of Eight Channels of OTU Signals
For the signal flow of the FITB-OEO800-2G5, the transmitting and the receiving directions are defined. The transmitting direction is defined as the direction from the client side to the WDM side, and the receiving direction is defined as the reverse direction.
Flow of Regeneration of Eight Channels of OTU Signals
For the signal flow of the FITB-OEO800-2G5, the transmitting and the receiving directions are defined. The transmitting direction is defined as the direction from the client side to the WDM side, and the receiving direction is defined as the reverse direction.
include electrical specifications, optical specifications, laser level, mechanical specifications and power consumption.
| Parameter | Module Type:155Mbps~2.5Gbps | |||
| Transmission Distance (km) | ~2 | ~15 | ~40 | ~80 |
| Laser Type | MLM | SLM | SLM | SLM |
| Center Wavelength (nm) | 1261 | 1261 | 1280 | 1480 |
| ~1360 | ~1360 | ~1335 | ~1580 | |
| Maximum Spectral Width (nm) | σ RMS＜4 | σ-20dB＜1 | σ-20dB＜1 | σ-20dB＜1 |
| Side Mode Suppression Ratio (dB) | - | 30 | 30 | 30 |
| Average Output Power (dBm) | -3~-10 | -5~0 | -2~3 | -2~3 |
| Extinction Ratio (dB) | 8.2 | 8.2 | 8.2 | 8.2 |
| Receiver Type | PIN | PIN | APD | APD |
| Minimum Load (dBm) | -3 | 0 | -9 | -9 |
| Receiver Sensitivity (dBm) | -18 | -18 | -27 | -28 |
| Optical Path Penalty (dB) | 1 | 1 | 1 | 2 |
| Maximum Return Loss (dB) | -27 | -27 | -27 | -27 |
CWDM application and PIN receipt, target to reach a transmission distance of 40KM
| Parameter | Unit | Index | |||
| Minimum Value | Typical Value | Maximum Value | |||
| Operating Rate | Mb/s | 155 | 2667 | ||
| Receiver Part | |||||
| Center Wavelength | Nm | 16 tunnels | |||
| 1271~1611 | |||||
| Sensitivity | 2.488Gbps | dBm | -18 | ||
| 1.25Gbps | -19 | ||||
| Overload Point | dBm | 0 | |||
| Return Loss | dB | 27 | |||
| Transmitter Part | |||||
| Wavelength Range | nm | -6.5 | 6.5 | ||
| Spectral Width (-20dB) | nm | 1 | |||
| Side Mode Suppression Ratio | dB | 30 | |||
| Average Optical Power | dBm | 0 | 5 | ||
| Extinction Ratio | dB | 8.2 | |||
| Optical Path Penalty | dB | 1.5 | |||
| Eye Diagram | In line with ITU-TG.957 | ||||
CWDM application and APD receipt, target to reach a transmission distance of 80KM
| Parameter | Unit | Index | |||
| Minimum Value | Typical Value | Maximum Value | |||
| Operating Rate | Mb/s | 155 | 2667 | ||
| Receiver Part | |||||
| Center Wavelength | Nm | 16 tunnels | |||
| 1271~1611 | |||||
| Sensitivity | 2.488Gbps | dBm | -28 | ||
| 1.25Gbps | -29 | ||||
| Overload Point | dBm | -9 | |||
| Return Loss | dB | 27 | |||
| Transmitter Part | |||||
| Wavelength Range | nm | -6.5 | 6.5 | ||
| Spectral Width (-20dB) | nm | 1 | |||
| Side Mode Suppression Ratio | dB | 30 | |||
| Average Optical Power | dBm | 0 | 5 | ||
| Extinction Ratio | dB | 8.2 | |||
| Optical Path Penalty | dB | 1.5 | |||
| Eye Diagram | In line with ITU-TG.957 | ||||
DWDM application, APD receipt
| Parameter | Unit | Index | |||
| Minimum Value | Typical Value | Maximum Value | |||
| Operating Rate | Mb/s | 155 | 2667 | ||
| Receiver Part | |||||
| Center Wavelength | Nm | C Band 40 tunnels | |||
| 1525~1625 | |||||
| Sensitivity | 2.488Gbps | dBm | -28 | ||
| Overload Point | dBm | -9 | |||
| Return Loss | dB | 27 | |||
| Transmitter Part | |||||
| Wavelength Range | -0.11 | 0.11 | |||
| Spectral Width (-20dB) | nm | 0.5 | |||
| Side Mode Suppression Ratio | dB | 30 | |||
| Average Optical Power | dBm | 0 | 4 | ||
| Extinction Ratio | dB | 8.2 | |||
| Optical Path Penalty | dB | 2.5 | |||
| Eye Diagram | In line with ITU-TG.957 | ||||
