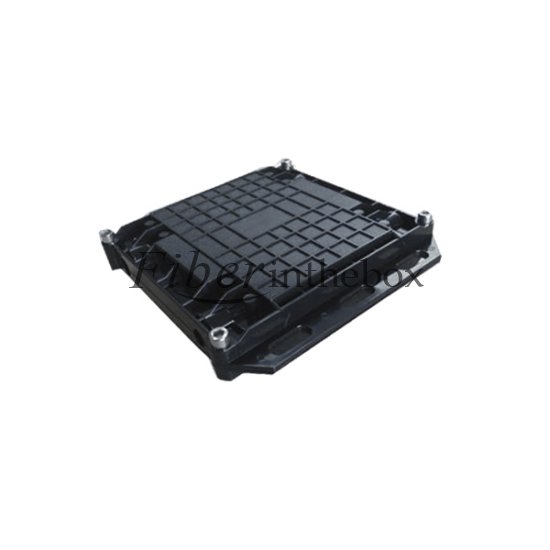

Basic structure and configuration
Dimension and capacity;
|
Outside dimension (LxWxH) |
280x200x90 (mm) |
|
Weight (excluding outside box) |
1200g-1500g |
|
Number of inlet/outlet ports |
max. 4 pieces |
|
Diameter of fiber cable |
Φ8—Φ14 (mm) |
|
Capacity of FOSC |
Bunchy: 16(Cores) |
|
-- |
Main components
|
No. |
Name of components |
Quantity |
Usage |
Remarks |
|
1 |
Housing |
1 set |
Protecting fiber cable splices in whole |
Internal diameter: |
|
|
|
|
|
285x110 (mm) |
|
2 |
Insert plate |
2 pairs |
Fixing the housing |
175x56x30(mm) |
|
3 |
Fiber optic splice tray (FOST) |
Max 4 trays(bunchy) Max 4 trays( ribbon) |
Fixing heat shrinkable protective sleeve and holding fibers |
Suitable for: Bunchy:6,8,12,16,24(cores) Ribbon: 3 (pieces) |
|
4 |
Foundation |
1 set |
Fixing fiber cable, reinforced core and FOST |
|
|
5 |
Seal fitting |
1 set |
Sealing between FOSC cover and FOSC bottom |
|
|
6 |
Port plug |
6 pieces |
Sealing empty ports |
|
|
7 |
Pressure testing valve |
1 set |
After injecting air, it is used for pressure testing and sealing testing |
Configuration as per requirement |
|
8 |
Earthing deriving device |
1 set |
Deriving metallic parts of fiber cable in FOSC for earthing connection |
Configuration as per requirement |
Main accessories and special tools
|
No. |
Name of accessories |
Quantity |
Usage |
Remarks |
|
1 |
Heat shrinkable protective sleeve |
|
Protecting fiber splices |
Configuration as per capacity |
|
2 |
Nylon tie |
|
Fixing fiber with protective coat |
Configuration as per capacity |
|
3 |
Insulation tape |
1 roll |
Enlarging diameter of fiber cable for easy fixing |
|
|
4 |
Seal tape |
1 roll |
Enlarging diameter of fiber cable which fits in with seal fitting |
Configuration as per specification |
|
5 |
Hanging hook |
1 set |
For aerial use |
|
|
6 |
Earthing wire |
1 piece |
Putting through between earthing devices |
To put through as per actual requirement |
|
7 |
Abrasive cloth |
1 piece |
Scratching fiber cable |
|
|
8 |
Labeling paper |
1 piece |
Labeling fiber |
|
|
9 |
Special wrench |
3 pieces |
Fixing bolts, tightening nut of reinforced core |
|
|
10 |
Measuring paper |
1 piece |
To measure perimeter of fiber cable, of which the diameter is enlarged with seal tape |
To measure perimeter with the corresponding measuring paper |
|
11 |
Buffer tube |
To be decided by customers |
Hitched to fibers and fixed with FOST, managing buffer |
Configuration as per requirement |
|
12 |
Desiccant |
1 bag |
Put into FOSC before sealing for desiccating air. |
|
