1M VF45-MTRJ 50/125um OM2 MM Duplex Patch Cables
Volition VF-45 patch cables are manufactured using GGP(Glass/Glass/Polymer) optical fiber cables and industry standard ST, SC, FC, LC, MTRJ and VF-45 optical fiber connectors. GGP fiber cable assemblies are ideal for panel-to-panel cross-connects, equipment back planes, under desk and other applications that require reliability and mechanical strength. Volition VF-45 patch cables are ideal for applications requiring tight bends, durability and depend ability. They're great for exposed optical fiber cable situations, such as under-desk applications where their mechanical strength and tight bend radius makes them more resistant to kicks, pulls and bends.
Characteristics
|
Item |
Specifications |
|
Attenuation: |
< 0.75 dB max |
|
Reflection: |
> 20 dB max |
|
Mating durability: |
500 cycles, <0.75 dB max |
|
Strength of coupling: |
> 33 N, < 0.75 dB max |
|
Plug cable retention: |
Tensile load > 66 N, Side Pull > 6.6 N, < 0.75 dB max |
|
Plug flex: |
100 Cycles, ± 90 degrees, 0.5 kg, < 0.75 dB max |
|
Plug twist: |
10 Cycles, ± 2.5 revolutions, 15 N, < 0.75 dB max |
|
Cold: |
-10°C for 96 hours, < 0.3 dB increase |
|
Heat: |
+60°C for 14 days, < 0.3 dB increase |
|
Thermal cycling: |
-10°C to 60°C, 5 Cycles, < 0.3 dB increase |
|
Vibration: |
10 to 55 Hz, 30 min. each axis, < 0.3 dB increase |
|
Connector Style: |
Crimp, Polish |
|
Connector Type: |
VF45-SC |

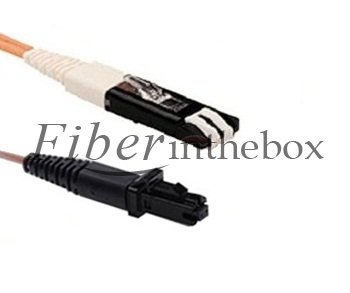

Sample Picture
.jpg)
Details
.jpg)
