As one of the key components for GPON FTTx networks, optical splitters can be placed in the Central Office or in one of the distribution points (outdoor or indoor) because the FBT splitters are highly stable for multipo optical signal splitting with low inse ion loss. FBT couplers are designed for power splitting and tapping in telecommunication equipment, CATV network, and test equipment.
Fiberinthebox Fused Biconic Tapered (FBT) splitters are available with 1x2, 1x3, 1x4, 1x5, 1x6, 1x8, 1x12, 1x16, 1x18, 1x20 and 1x24, 2X2, 2X4, 3X3 configurations with single mode or multimode fiber and we offer all type connectors of pre-connectorized like SC, FC, ST, LC and E2000 etc.

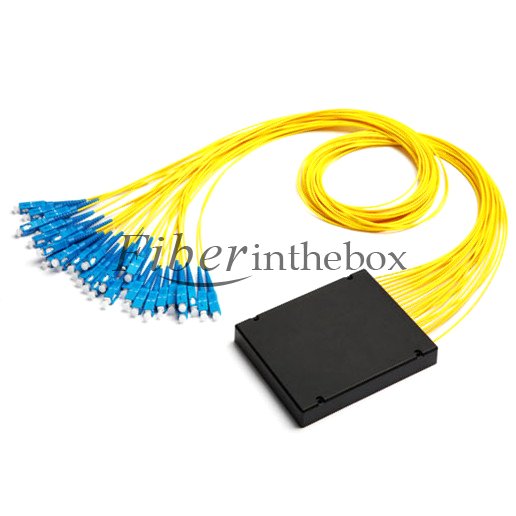

The 1x20 Multimode Single Window Fiber Splitter with ABS Box can splitter the optical signals into 20 pa s, and the coupling ratio can be customized.
Fiberinthebox Fused Biconic Tapered (FBT) splitters are available with 1x2, 1x3, 1x4, 1x5, 1x6, 1x8, 1x12, 1x16, 1x18, 1x20 and 1x24, 2X2, 2X4, 3X3 configurations with single mode or multimode fiber and we offer all type connectors of pre-connectorized like SC, FC, ST, LC and E2000 etc.
The 1x20 Multimode Single Window Fiber Splitter with ABS Box can splitter the optical signals into 20 pa s, and the coupling ratio can be customized.
Key Features
Low inse ion loss Low polarization dependent loss High Return LossCompact for small application areas like in closure or splice trays Wide Operating Temperature and Wavelength Excellent Environmental & Mechanical Stability Qualified Under Telcordia GR-1221 and GR-1209 High Quality Plastic ABS BoxMultimode Type: 62.5um/125 as default
Applications
Order Information
For FBT Splitters, Fiberinthebox provides a whole series of this kind customized for specific applications:
a. Different coupling ratio can be customized according to your requirement.
b. 1310nm, 1490nm and 1550nm operating wavelength can be selected.
c.1x2, 1x3, 1x4, 1x5, 1x6, 1x8, 1x12, 1x16, 1x18, 1x20, 1x24, 2X2, 2X4, 3X3 configurations of splitters are available.
d. 2. 0mm or 3.0mm LSZH fiber cables can be selected.
e. The length of input or output fibers can be also customized; 1m length as default
Welcome to contact us for customized solutions.
a. Different coupling ratio can be customized according to your requirement.
b. 1310nm, 1490nm and 1550nm operating wavelength can be selected.
c.1x2, 1x3, 1x4, 1x5, 1x6, 1x8, 1x12, 1x16, 1x18, 1x20, 1x24, 2X2, 2X4, 3X3 configurations of splitters are available.
d. 2. 0mm or 3.0mm LSZH fiber cables can be selected.
e. The length of input or output fibers can be also customized; 1m length as default
Welcome to contact us for customized solutions.
Mechanical Drawing
Fiberinthebox offers cost-effective standards-based 1x20 FBT Splitter Multimode Single Window Fiber Splitter with ABS Box. As a 3rd pa y OEM manufacturer, our 1x20 FBT Splitter Multimode Single Window Fiber Splitter with ABS Box is delivered to worldwide from our factory directly, and they are all based on thin film filter technology and metal bonding micro optics packaging. What's more, our 1x20 FBT Splitter Multimode Single Window Fiber Splitter with ABS Box are tested in-house prior to shipment to guarantee that they will arrive in perfect physical and working condition. Please contact us at sales@fiberinthebox.com if you want to know more details..
Specifications
| Operating Wavelength(nm) | 850nm or 1310nm |
| Bandwidth(nm) | ±20 |
| Excess Loss (dB) | ≤0.10 |
| Max. Insertion Loss(dB) | ≤3.40 |
| PDL(dB) | ≤0.10 |
| Return Loss(dB) | ≥50 |
| Directivity(dB) | ≥55 |
| Operating temperature(℃) | -25 to +70 |
