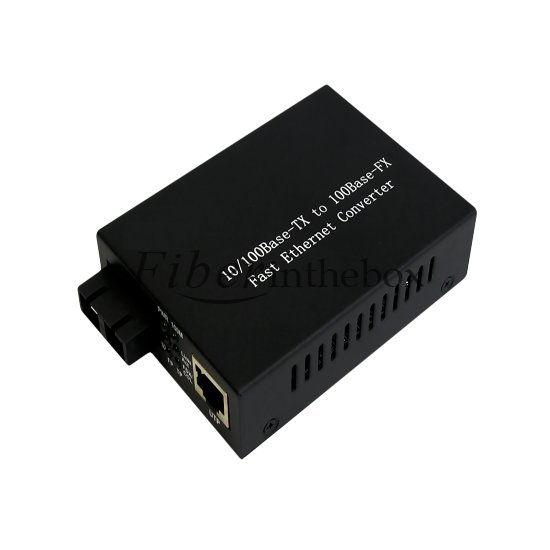

Ethernet optical cat is a special user environment for research and development of high-performance products, which uses a single fiber pair 10/100BaseT point type optical transmission terminal equipment, can be equipped with light cat + E1/10/100BaseT conve E1 E1-based transmission link provides Ethernet transparent transmission, the local network can be used as relay transmission device, especially for a mobile communication network base station transmission equipment and optical terminal equipment rental. The devices are small, light weight and compact structure, convenient installation and maintenance; transmission quality, reliable operation.
Features:
- Provide a way 10/100M Ethernet interface
- Loopback functions: local loop (ANA), to remote loopback (DIG), order remote loop (REM)
- FE1 to achieve a random selection of slots to form N × 64K (N = 1 ~ 32) data channel
- Ethernet Interface 10M/100M, full / half duplex adaptive suppo VLAN protocol
- Ethernet suppo AUTO-MDIX (crossover cable and direct connections adaptive)
- Provide a road management po
- Enables centralized monitoring and remote network management
- Suppo system upgrades
Specifications:
- Fiber type single-mode fiber, multimode fiber optional
- Optical wavelength 1310nm, 1550nm, 850nm etc. optional
- Optical interface SC, FC or ST optional
- Optical pattern 1B1H
- Single optical fiberal module module, dual-fiber module optional
- Output optical power-8dBm ~-15dBm
- Receiver sensitivity ≥-36dBm
- Transmission distance Normal 20Km (up to 100Km)
Ethernet Interface :
- Suppo 10/100M full duplex, half duplex, auto-negotiation function
- Suppo s 802.1p priority function
- Suppo 802.3x flow control function
- Suppo VLAN transparent transmission of Ethernet frames
- Interface Type: RJ45
Power supply :
- voltage: AC180V ~ AC240V
- DC-36V ~-72V
- Power Consumption: <5W
Working environment :
- Operating temperature: -10 ℃ ~ 50 ℃
- Storage temperature: -40 ℃ ~ +70 ℃
- Relative humidity: 5% -95% non-condensing
- Atmospheric pressure: 86 ~ 106Kpa
