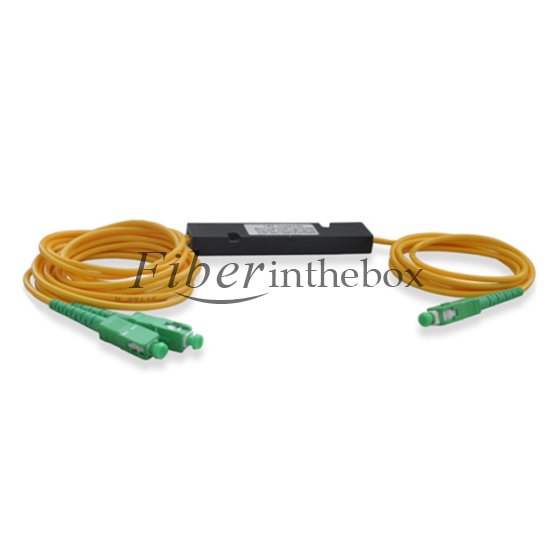

1x2 FBT Multimode Dual Window Fiber Splitter with ABS Box

As one of the key components for GPON FTTx networks, optical splitters can be placed in the Central Office or in one of the distribution points (outdoor or indoor) because the FBT splitters are highly stable for multipo optical signal splitting with low inse ion loss. FBT couplers are designed for power splitting and tapping in telecommunication equipment, CATV network, and test equipment

Fiberinthebox Fused Biconic Tapered (FBT) splitters are available with 1x2, 1x3, 1x4, 1x5, 1x6, 1x8, 1x12, 1x16, 1x18, 1x20 and 1x24, 2X2, 2X4, 3X3 configurations with single mode or multimode fiber and we offer all type connectors of pre-connectorized like SC, FC, ST, LC and E2000 etc.
The 1x2 Multimode Dual Window Fiber Splitter with ABS Box can splitter the optical signals into 2 pa s, and the coupling ratio can be customized

Key Features

Low inse ion loss Low polarization dependent loss High Return Loss Optional Split Ratio (20/80, 40/60...) Compact for small application areas like in closure or splice trays Wide Operating Temperature and Wavelength Excellent Environmental & Mechanical Stability Qualified Under Telcordia GR-1221 and GR-1209 High Quality Plastic ABS BoxMultimode Type: 62.5um/125 as defaultWavelength of Dual Window: 850nm/1310nm as default

Applications

FTTX (FTTP, FTTH, FTTN, FTTC) Passive Optical Networks (PON) Local Area Networks (LAN) CATV Systems Amplifying, Monitoring System Test Equipments

Order Information

For FBT Splitters, Fiberinthebox provides a whole series of this kind customized for specific applications:
a. Different split ratios of the optical power can be selected: 40/60, 30/70, 20/80, 10/90, 5/95, 2/98, 1/99...
b. Two out of the 1310nm, 1490nm and 1550nm operating wavelength can be selected.
c.1x2, 1x3, 1x4, 1x5, 1x6, 1x8, 1x12, 1x16, 1x18, 1x20, 1x24, 2x2, 2x4, 3x3 configurations of splitters are available.
d. 250um bare fiber, 0.9 loose tube, 2. 0mm or 3.0mm LSZH fiber cables can be selected.
e. The length of input or output fibers can be also customized; 1m length as default.
Welcome to contact us for customized solutions.

Mechanical Drawing

Fiberinthebox offers cost-effective standards-based 1x2 FBT Splitter Multimode Dual Window Fiber Splitter with ABS Box. As a 3rd pa y OEM manufacturer, our 1x2 FBT Splitter Multimode Dual Window Fiber Splitter with ABS Box is delivered to worldwide from our factory directly, and they are all based on thin film filter technology and metal bonding micro optics packaging. What's more, our 1x2 FBT Splitter Multimode Dual Window Fiber Splitter with ABS Box are tested in-house prior to shipment to guarantee that they will arrive in perfect physical and working condition. Please contact us at sales@fiberinthebox.com if you want to know more details.

Specifications

Parameter		Premium	Standard
Operating Wavelength(nm)		850 /1310
Operating Bandwidth(nm)		±40 Wideband,±20 Standardband
Typical Excess Loss(dB)		0.1	0.15
Split Ratio(%)		1-50
Insertion Loss Max(dB)
	40/60	4.7/2.7	5.0/2.9
	30/70	6.0/1.9	6.4/2.1
	20/80	7.9/1.2	8.4/1.4
	10/90	11.3/0.5	12.7/0.8
	5/95	15.2/0.4	18.5/0.5
	1/99	22.5/0.3	23.0/0.4
Polarization Sentivity(dB)		0.1	0.15
Uniformity(dB)		0.7	1
Directivity(dB)		55
Fiber Length(m)		1m or Customer Specified
Port Configuration	1x2
Operating Temperature(℃)		-20 to +85
Storage Temperature(℃)		-40 to +85
