Introduction

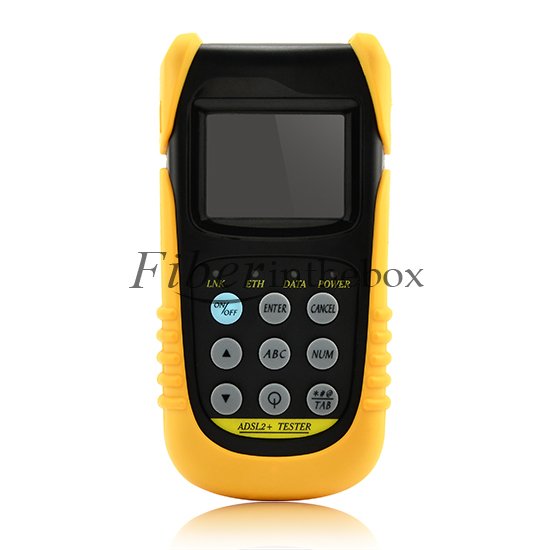

ADSL2+ Tester is an easy-to-use, hand-held advanced telecommunication tester that used for the installation, maintenance and measurement of ADSL2+ service. It suppo s the testing function such as parameter, error, DMM, PING that related to ADSL2+ service, user register authentication on the ADSL2+ user’s line side. It also directly enables the engineers to verify, troubleshoot and evaluate the ADSL2+ service. It is the right tool for the job.
Features
Comply with multi-standards: ITU-T G.992.1 (G.DMT), ITU-T G.992.2 (G.Lite), ADSL2(G.992.3), ADSL2+(G.992.5) Automatically fit for the ADSL line standards, real-time display ADSL line connection status Suppo both WAN PING and LAN PING Suppo replacing MODEM and simulating the whole process of login on Internet High resolution backlight large LCD, Handheld design and easy-to-use Built-in Li rechargeable battery and sma charger circuit. High storages capacity, can store up to 70 groups of test results including settings and results information. Various Voice alarm and LED indications Upgradeable software via an integrated RS-232 interface Test results uploaded, conserved and printed by PCManager Software
Testing data
Basic:Line standard
Frame structure
Line connection
Parameter
--Fast Bit Rates (FAST): Upstream and Downstream-- Interleaved Bit Rate (INTL): Upstream and Downstream
-- Max Bit Rate: Upstream and Downstream
-- Utilize Rate: Upstream and Downstream
---Transmit Power: Upstream and Downstream
-- Line Attenuation: Upstream and Downstream
-- SNR Margin (Signal to Noise Ratio) : Upstream and Downstream
Link:(Near and Far)
Alarm
Downstream Transmit Speed ThresholdDownstream SNR Margin Threshold
Downstream Channel Threshold
Downstream Line Attenuation Threshold
Upstream Line Attenuation Threshold
DMT
SNR and Character bits allocation (graphic format) under 256/512 DMT
PING testing
WAN PING testing:IP or domain ping testing, statistic Percentage of PING packet lossLAN PING testing:IP PING testing, Find out the faultily connected PC and statistic Percentage of PING packet loss
DMM
--AC, DC voltage-- Round resistance
--Line capacitance
-- Estimate line distance
Specifications
| Type | ADSL2+Tester FS801D |
| Power Supply | 2AA1.5V Batteries or (Chargable battery) |
| Operating Temperature | -10°C~60°C |
| Storage Temperature | -20°C~70°C |
| Work Humidity | < 95% |
| APO | 10 min |
| Dimensions | 210*92*36mm |
| Weight(g) | 460g |
