Simplex DWDM MUX
Multiplexer (MUX) work with demultiplexer (DEMUX) on the other side for single directional data transmission over one fiber.
DWDM Mux/Demux modules are pa of a series of high performance products based on silica-on-silicon planar technology. The AWG chips Fiberinthebox used for DWDM Mux/Demux are targeted for Long-Haul, Metro and access applications, where outstanding optical performance and low cost are paramount.
Athermal Arrayed Waveguide Grating (AAWG) DWDM Modules features of athermal packaging design require no electrical power, software or temperature control.
Thermal Arrayed Waveguide Grating (TAWG) DWDM Modules are designed for use within the C-band release of DWDM system. To decrease the power dissipation of the devices in different environmental conditions, the AWG package is special designed with selection of reliable thermal plastic with low thermal conduction, and the AWG operating temperature is controlled by using foil resist heater or Peltier TEC with thermistor temperature sensor.
The channel spacing for DWDM is 1.6/0.8/0.4 nm (200GHz/100 GHz/50 GHz grid). This small channel spacing allows to transmit simultaneously much more information.
Front Panel Details
Note: Actual layout depends on the chosen connector type as well as other factors. However, the principal scheme stays the same.
Item Details

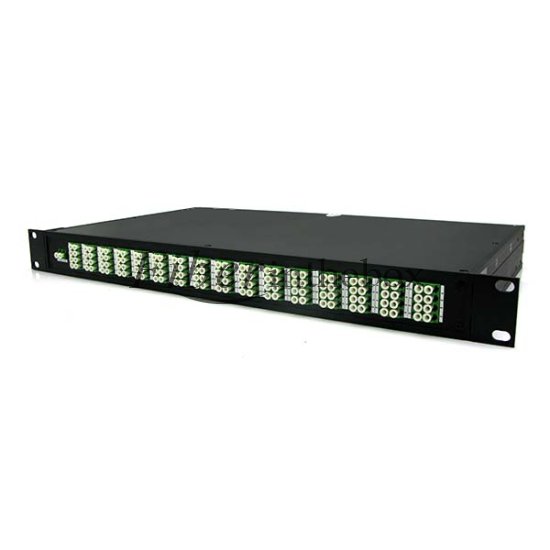

96 channels DWDM MUX in one 1U/2U Rack The channel spacing for DWDM is 0.4 nm (50 GHz grid) Com po is simplex 1U/2U 19inch Rack Mount Housing (LC: 1RU height. SC, ST&FC: 2RU height) Protocol transparent (10 Mbps to 100 Gbps) Distance: Up to 80 km depending on power budget of user equipment Low inse ion loss Excellent channel isolation Epoxy-free optical path Compliant to ITU-T G.694.1, Telcordia GR-1221-CORE and GR-1209 standard. ISO 9001 manufacturing facility
Mechanical Details for Housing
Note: Please, note that the drawings shown here only show the dimensions and do not the specific configuration of the module.
Specifications
50G AAWG DWDM |
Parameter |
Unit |
Min. |
Typ. |
Max. |
Channel Spacing |
GHz |
50 |
Number of Channels |
1 |
48, 64, 80, 88 or customize |
Cha. Center Wavelength |
nm |
C-band |
Clear Channel Passband |
GHz |
(+/-6.25) |
Wavelength Stability |
nm |
(+/-0.05) |
Passband Width (@ -1 dB) |
nm |
0.2 |
|
|
Passband Width (@ -3 dB) |
nm |
0.3 |
|
|
Insertion Loss * dB at ITU grid |
dB |
|
6 |
7 |
Uniformity |
dB |
|
|
2 |
Ripple |
dB |
|
|
1.5 |
Return Loss |
dB |
40 |
|
|
Directivity(Mux Only) |
dB |
40 |
|
|
Adjacent Channels |
dB |
Demux: 25 Mux: 18 |
|
|
Non-adjacent Channels |
|
Demux: 29 Mux: 18 |
|
|
Total Channel Isolation |
|
Demux: 22 Mux: 18 |
|
|
PDL (Polarization Dep. Loss) in Clear |
dB |
|
0.3 |
0.5 |
PMD (Polarization Mode Disp.) |
ps |
|
|
0.5 |
Maximum Optical Power |
dBm |
|
|
23 |
MUX/DEMUX input/output monitoring range |
dBm |
-35 |
|
23 |
Chromatic Dispersion |
ps/nm |
(-20 to +20) |
|
|
Temperature, Operating |
OC |
(-30 to +70) |
|
|
Temperature, Storage |
OC |
(-40 to +85) |
|
|
*Note: Insertion Loss values do not include connector losses. |
DWDM Wavelength Reference Table
ITU Grid Standard DWDM Wavelength Reference Table |
Channel |
Frequency (THz) |
Center Wavelength (nm) |
CH17 |
191.7 |
1563.86 |
CH18 |
191.8 |
1563.05 |
CH19 |
191.9 |
1562.23 |
CH20 |
192 |
1561.42 |
CH21 |
192.1 |
1560.61 |
CH22 |
192.2 |
1559.79 |
CH23 |
192.3 |
1558.98 |
CH24 |
192.4 |
1558.17 |
CH25 |
192.5 |
1557.36 |
CH26 |
192.6 |
1556.55 |
CH27 |
192.7 |
1555.75 |
CH28 |
192.8 |
1554.94 |
CH29 |
192.9 |
1554.13 |
CH30 |
193 |
1553.33 |
CH31 |
193.1 |
1552.52 |
CH32 |
193.2 |
1551.72 |
CH33 |
193.3 |
1550.92 |
CH34 |
193.4 |
1550.12 |
CH35 |
193.5 |
1549.32 |
CH36 |
193.6 |
1548.51 |
CH37 |
193.7 |
1547.72 |
CH38 |
193.8 |
1546.92 |
CH39 |
193.9 |
1546.12 |
CH40 |
194 |
1545.32 |
CH41 |
194.1 |
1544.53 |
CH42 |
194.2 |
1543.73 |
CH43 |
194.3 |
1542.94 |
CH44 |
194.4 |
1542.14 |
CH45 |
194.5 |
1541.35 |
CH46 |
194.6 |
1540.56 |
CH47 |
194.7 |
1539.77 |
CH48 |
194.8 |
1538.98 |
CH49 |
194.9 |
1538.19 |
CH50 |
195 |
1537.4 |
CH51 |
195.1 |
1536.61 |
CH52 |
195.2 |
1535.82 |
CH53 |
195.3 |
1535.04 |
CH54 |
195.4 |
1534.25 |
CH55 |
195.5 |
1533.47 |
CH56 |
195.6 |
1532.68 |
CH57 |
195.7 |
1531.9 |
CH58 |
195.8 |
1531.12 |
CH59 |
195.9 |
1530.33 |
CH60 |
196 |
1529.55 |
CH61 |
196.1 |
1528.77 |
