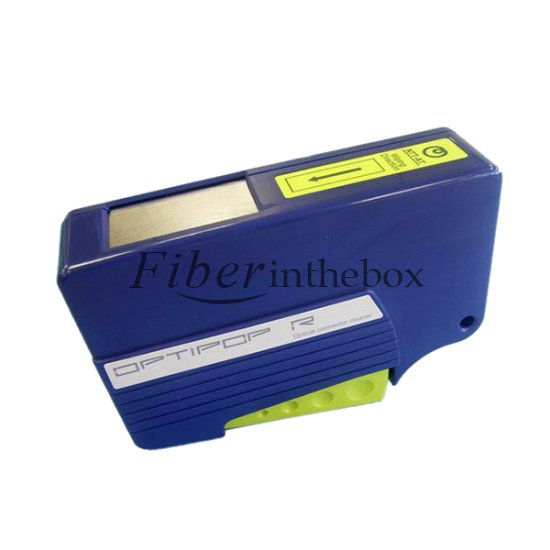

OPTIPOP R Refillable Cassette Cleaning Tools
The OPTIPOP R is a cassette style optical fiber connector cleaner system that can be refilled for reducing cleaning costs. It uses a densely woven micro-fiber cleaning fabric to remove harmful contaminates off of the ferrule end face. The OPTIPOP R cassette cleaning tool will accommodate all single fiber connections. US Conec has versions of the OPTIPOP R cassette cleaning tools that are designed specially for cleaning multi-fiber connector systems including the MTP® Brand Connectors, standard MPO and MTRJ connectors for both singlemode and multimode connectors. The customized OPTIPOP R cassette cleaning tool will accommodate the alignment guide pins on male MT ferrules. US Conec has a version of the OPTIPOP R cassette cleaning tool that is ideal for field use at FTTX work sites. This version accommodates the OptiTap™ connector housing making it ideal for technicians that need to clean OptiTap™ plug connectors on drop cables.
The anti-static cloth material produces a pristine fiber tip and minimizes contaminant attraction. The cleaning fabric is pre-washed and produces less than 70 pcs/CFM of pa icles > 1mm in size, making this system excellent for use in any production environment including clean rooms
Key Features
Replacement reels are easy to install and reduce the cost per cleaning 400+ Cleanings Eliminates electrostatic charge The washed, ultra clean micro-fiber cloth captures debris and other contaminationThe cloth is robust, it does not fray or leave any fibrous materials behind The most cost effective high-end cleaning solution available
Applications
Specifications
| Cord | ATC-RE-01 | ATC-RE-02 | ATC-RE-03 | ATC-RE-04 |
| Window type | 1-slot | 2-slot | 1-slot | 1-slot |
| Cleaning time | 400 times | |||
| Connector | SC, MU, SC2, LC, FC, MT, ST, MPO | SC, MU, SC2, LC, FC, ST | MT with pin, MPO with pin | MT-RJ with pin |
| Size(mm） | W 120 × H 80 × D 37 | |||
| Replacement Reel Code | ATC-RS-01 6 reels/set | |||
