Description

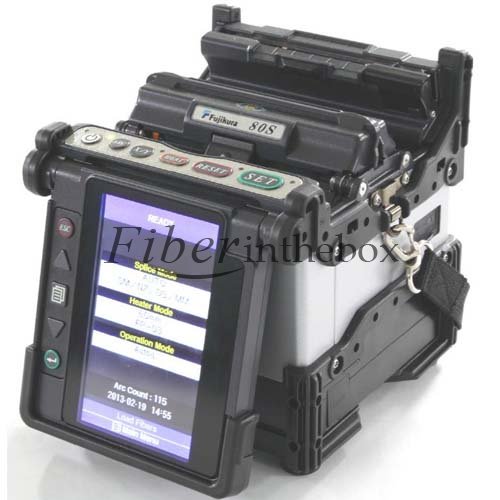

The FSM-80S is core-to-core alignment single fiber splicer,which is designed for splicing single-count optical fiber for telecommunication use.Shock resistance, dust resistance, and rain resistance....
Feature
The FSM-80S is core-to-core alignment single fiber splicer succeeding to FSM-60S. In addition to ruggedized concept, which 60S created, the 80S has a series of new features, such as "Automated wind-protector and tube-heater" for quicker splicing cycle as well as fewer operation steps, "innovative carrying-case design" for
quicker preparation, "powerful Li-ion battey" for longer operation, high resolution bigger LCD monitor, and "built-in operation manuals" in various languages. Market is from backbone network installation to opto-electronics components production for quality splice.
Specifications
Those features maximize productivity and operatability in splicing at the field.
Automated Wind-protector / Tube Heater
Reduced splicing steps, and the world's fastest splicing / heating times.
Innovative Carrying Case Design
A detachable built-in working table is inside for quick sta of splicing
Environmental Resistance
The world's first 6-direction drop proof, dust and water resistant.
Wide Color LCD Monitor
High resolution 4.7 inch monitor with better visibility under daylight.
Powerful Li-ion Battery
200 splice and heating cycles per full charge.
Pre-installed Manual
Manuals including operation, troubleshooting and others are available through
the monitor.
Details
Standard Package
Optional Items
The FSM-80S is core-to-core alignment single fiber splicer,which is designed for splicing single-count optical fiber for telecommunication use.Shock resistance, dust resistance, and rain resistance....
Feature
The FSM-80S is core-to-core alignment single fiber splicer succeeding to FSM-60S. In addition to ruggedized concept, which 60S created, the 80S has a series of new features, such as "Automated wind-protector and tube-heater" for quicker splicing cycle as well as fewer operation steps, "innovative carrying-case design" for
quicker preparation, "powerful Li-ion battey" for longer operation, high resolution bigger LCD monitor, and "built-in operation manuals" in various languages. Market is from backbone network installation to opto-electronics components production for quality splice.
Specifications
Those features maximize productivity and operatability in splicing at the field.
Automated Wind-protector / Tube Heater
Reduced splicing steps, and the world's fastest splicing / heating times.
Innovative Carrying Case Design
A detachable built-in working table is inside for quick sta of splicing
Environmental Resistance
The world's first 6-direction drop proof, dust and water resistant.
Wide Color LCD Monitor
High resolution 4.7 inch monitor with better visibility under daylight.
Powerful Li-ion Battery
200 splice and heating cycles per full charge.
Pre-installed Manual
Manuals including operation, troubleshooting and others are available through
the monitor.
Ordering Information
| Applicable fibres | SM (ITU-T G.652 & G.657), MM (ITU-T G.651),DS (ITU-T G.653), NZDS (ITU-T G.655),Others |
| Fibre Count | Single |
| Cladding diameter | 80 to 150μm |
| Coating diameter | 100 to 1000μm |
| Fibre cleaved length | 5 to 16mm using Sheath Clamp A, B or 5 to13mm using FH-60-250, FH-60-900 |
| Actual average splice loss | 0.02dB with SM, 0.01dB with MM, 0.04dB with DS, 0.04dB with NZDS |
| Splice time | 7sec:SM FAST mode, 12sec :SM AUTO mode, 15sec:AUTO mode |
| Return loss | 60dB or greater |
| Splicing modes | 100 splicer modes are available |
| Splice loss estimate | Several types of core deformations as well as core axis offset are taken into account for accurate loss estimate |
| Attenuation splice function | Intentional high splice loss of 0.1dB to 15dB (0.01dB step) can be made for an inline fixed attenuator |
| Storage of splice result | The last 2000 results to be stored in the internal memory |
| Magnification | X / Y (300X magnification), or both X and Y simultaneously (160X magnification) |
| Viewing method | By two CMOS cameras for intersecting fiber viewing and 4.73 inches TFT colour LCD monitor |
| Tension test | 1.96 to 2.25N |
| Operating condition | 0-5000m above sea level, 0-95% RH and -10 to 50°C respectively |
| Tube heater | Built-in auto-sta tube heater with 10 heating modes and up to 20 for reference |
| Tube heat time | 13-15sec. with FP-03 protection sleeve. Total memory of 30 heating modes are available |
| Applicable protection sleeve length | 60mm, 40mm and a series of micro sleeves |
| No. of splice/heating with battery | 200 times of splicing and heat shrinking under with BTR-09 |
| Power supply | Auto voltage selection from 100 to 240Va.c. or 10 to 15Vd.c. with ADC-18. 14.8Vd.c. with BTR-09 |
| Terminals | USB2.0 ( Mini-B) for data and video signal transfer to PC |
| Wind protection | Up to 15m/s wind velocity |
| Dimensions |
146(W) x 159(D) x 150(H) mm |
| Weight |
2.5 kg, with ADC-18 AC adaptor 2.7 kg, with BTR-09 battery |
| Electrode life | 3000 arc-discharges |
Details
Standard Package
| Item | Description | Model No. | Qty |
| 1 | Fusion Splicer | FSM-80S with CLAMP-S70A | 1 pc |
| 2 | AC adaptor/battery charger | ADC-18 | 1 pc |
| 3 | AC power cord | ACC-XX | 1 pc |
| 4 | Spare Electrodes | ELCT2-20A | 1 pair |
| 5 | Cleaver | CT-30A | 1 pc |
| 6 | Battery Pack | BTR-09 | 1 pc |
| 7 | USB cable | USB-01 | 1 pc |
| 8 | Quick reference guide | M-80S/19S-E | 1 pc |
| 9 | Warning and cautions | W-70-E | 1 pc |
| 10 | Instruction Manual | M-70 | 1 pc |
| 11 | Alcohol Pot | AP-01 | 1 pc |
| 12 | Battery charge cord | DCC-18 | 1 pc |
| 13 | Carrying Case | CC-30 | 1 pc |
| 14 | Screw Driver | SD-01 | 1 pc |
Optional Items
| Description | Model No. | Note |
| Fiber holder | FH-60-250 | For 250um coating |
| FH-60-900 | For 900um coating | |
| FH-60-LT900 | For 900um Loose Tube Fiber | |
| FH-60-DC250 | For Drop Cable | |
| FH-60-IDC250 | For Indoor Cable | |
| FH-FC-20/30 | For 2mm/3mm cord | |
| Sheath clamp | CLAMP-S70A | Coating diameter from 100um to 1000um |
| (5mm to 16mm cleave) | ||
| Included in standard package | ||
| CLAMP-S70B | 900um diameter loose tube fiber (16mm cleave) | |
| DC power cord | DCC-12 | For ADC-11/ADC-13/ADC-18 |
| Cigarette lighter socket type | ||
| DCC-12 | For ADC-11/ADC-13/ADC-18, Alligator clamp type | |
| Primary Coat Stripper | PS-02 | For single 250um fiber |
| Hot Jacket Stripper | HJS-02 | Standard |
