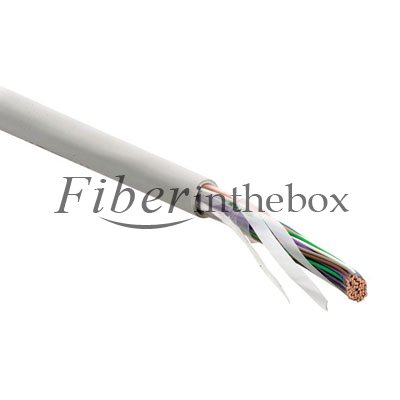

Unshielded Copper cable, 2/25/50/100 pairs, category 3, solid
Cable is used for indoor installation
Cable is used for indoor installation
Specifications:
Meets EIA/TIA 568-B for category 3 requirements Fire protection – IEC60332-1 (CM) The cable meets IEC 60332-1 fire safety standard
Applications
10Base-T 100Base-T4 Telephony Voice Wiring Communications Cable
Materials:
Conductive material: soft annealed electrolytic copper Conductor insulation: HDPE The cable jacket: PVC
Technical characteristics:
Conductor diameter: 0.5 mm (0.019") (24 AWG) Insulated conductor diameter: 0.9 mm (0.035") Outer cable diameter: 11 mm (0.43") Jacket thickness: 1.0 mm (0.039") Maximum strand pitch: 100 mm (3.93") Minimum bend radius: 6 outer cable diameters Conductor elongation: 14% minimum Operating temperature: -10°C – +50°C (+14°F – +122°F) Weight per 1000 ft (304.8 m): 46.6 kg (102.8 lbs) Standard package: 1000 m (3280 ft)
Electrical characteristics:
| Max DC Resistance at 20°C (68°F) | 9.38 Ohm/100 m (2.9 Ohm/100 ft) |
| Max Resistance Unbalance | 3% |
| Max Capacitance unbalance – pair-to-ground at 1kHz | 330 pF/100 m (101 pF/100 ft) |
| Characteristic Impedance at 1-16 MHz | 85-115 Ohm |
|
Min worst pair Structural Return Loss (SRL) Up to 10 MHz At 16 MHz |
12 dB |
|
Max attenuation at 20°C (68°F) and At 772 kHz At 1 MHz At 4 MHz At 8 MHz At 10 MHz At 16 MHz |
2.2 dB/100 m (0.67 dB/100 ft) |
|
Min worst pair to pair NEXT loss at 772 kHz At 772 kHz At 1 MHz At 4 MHz At 8 MHz At 10 MHz At 16 MHz |
43 dB 41 dB 32 dB 27 dB 26 dB 23 dB |
| Min Relative Velocity of Propagation at 10 MHz | 0,585 |
