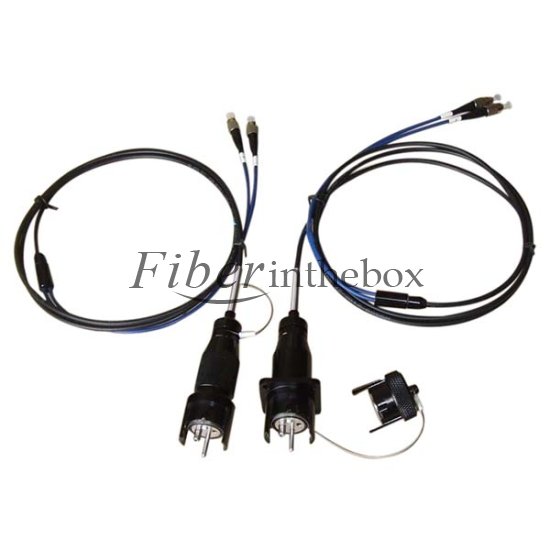

Military Field Optic Cable Connector
Features
Moulded plastic compound body, for long use Cross the panel with seal design, simultaneous connector 2 to 6 fibers Neutral mechanism, connector and receptacle random linking Ceramic ferrule and sleeve: PC,UPC polishingCable length: 1MFiber number: 2 fiberConnector: wall-mount military field cptic cable connector to LC/SC/ST/FC
Applications
Specifications
| Item | Parameter | |||||
| Fiber type | Singlemode | Multimode | ||||
| 2 fibers | 4 fibers | 6 fibers | 2 fibers | 4 fibers | 6 fibers | |
| Inse loss | ≤0.6 | ≤0.8 | ≤1 | ≤0.6 | ≤0.8 | ≤1 |
| Repeatability | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 |
| Vibration | 10Hz～500Hz,98m/s2 | |||||
| Shock | 490m/s2 | |||||
| Durability(per time) | 1000cycles | |||||
| Working temperature | -40℃ up to +85℃ | |||||
| Temperature cycle | -40℃ up to +85℃, three cycles | |||||
| Fibers | 2 fibers | 4 fibers | 6 fibers | |||
| Cable Crush Resist | 1200N(long-term) 1400N(long-term) | 600N(long-term) 800N(sho -term) | ||||
| Cable Outer Diameter | 5.0mm | 6.5mm | 6.5mm | |||
