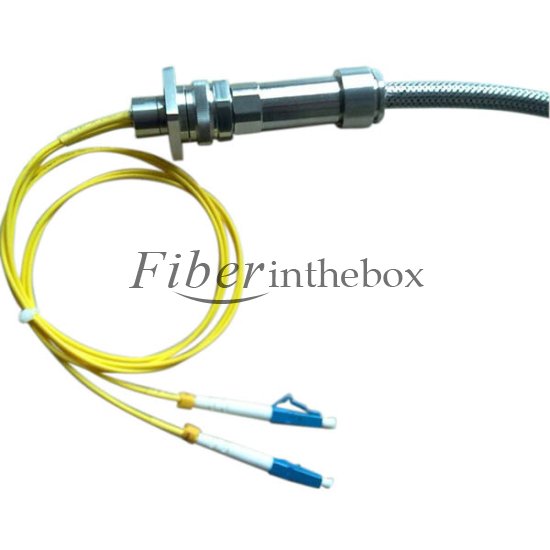

Tactical Fiber Optics Connector
This connector is hermaphroditically designed for use in environmentally harsh conditions. It could be mounted to the wall of shelter, vehicle terminal box and other cabinets.
Features
Hermaphroditic Design for Versatility---Enables multiple identical assemblies to be connected Hermaphroditic Dust Cap---Dust caps connect together to prevent dust and moisture penetration during deployment Orientation Pin Design---Ensures fast blind connection Commercial Ceramic Ferrule Technology---Enables connector to provision multimode and single mode interconnect with a variety of polishes including SPC and UPC Highly-intensified all dielectric compound material shell---Is light and intensified, and EMI free Fixing pa on the head---Ensures that the connector could be mounted to the wall of shelter, vehicle terminal box and other cabinetCable length: 1MConnector: tactical optical fibers connector plug to LC/SC/ST/FC
Applications
Specifications
| Inse ion loss | ≤ 0.7 dB |
| Return loss | ≤ 0.50dB |
| Channel | 2,4 |
| Durability | ≥ 500 cycles |
| Operating Temperature | -40 ～85℃ |
Kind Note:
As plug should work with socket, this product should be ordered together with Tactical Socket to LC/SC/FC/ST Fiber Optics Cable Connector, thus not be order individually
