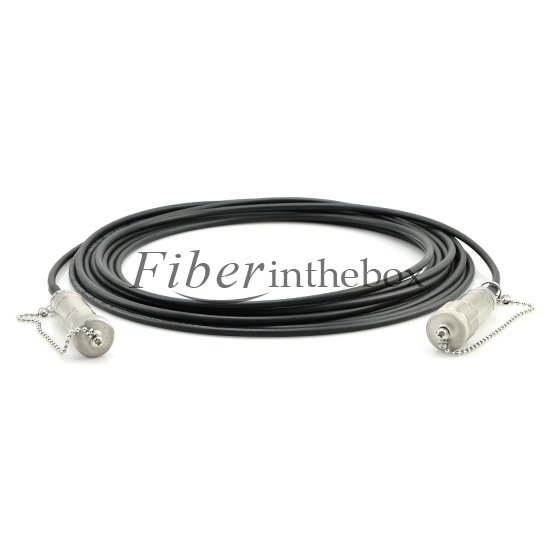

ODC Plug to ODC Socket 4 Fiber Outdoor Cable Connector

ODC-4 Outdoor Connector Plug/Socket

Applications

ODC connector is next generation connectors for wireless base station application (WCDMA/TD-SCDMA/CDMA200/Wi-MAX/GSM) that can meet the requirements of FTTA (fiber to the top of the tower). We developed ODC connector's base on special connectors craft, our ODC connector's interface can be compatible with the mainstream of the current global supplier of ODC connector.

Features

4 fibers，singlemode or multimode Compact design with 2×1.25mm ferrules Built-in socket with square or hexagonal flange Extension connector for cable chaining Screwed locking mechanism Easy and safe intallation Water proof,dust proof and corrosion resistant Water proof protection caps EMI protected RoHs compliant Fulfills performance standard IEC 61753-1 Cat.ECable Length: 1MConnector: ODC plug to ODC socket

Specifications

Technology		Full ceramic ferrule and sleeve
Housing material		Nickel plated brass
Mechanical performance	ODC plug	≤1000 N tensile load≤30 N static side load
	ODC socket	≤30 N tensile load
Installation torque force	min.1Nm	max.2Nm
Operating temperature	IEC 61300 – 2 - 22	-40℃ up to +85℃
Mating durability		1000 cycle
Ingress protection(mate)	IEC60529	Ip 68
Salt mist	IEC61300-2-26	30 days passed
Vibration	IEC61300-2-1	Pass 10-500Hz/10g
Shock	IEC61300-2-9	Pass 100g

Optical Performance

Inse ion loss IEC61300-3-34	Singlemode	Typ. ≤0.30dB	97% ≤0.45dB
	Multimode	Typ. ≤0.30dB	97% ≤0.50dB
Return loss	Singlemode	≥50dB

Kind Note: As plug should work with socket, this product should be ordered together with the following link product, thus not be order individually

Mechanical Drawing
