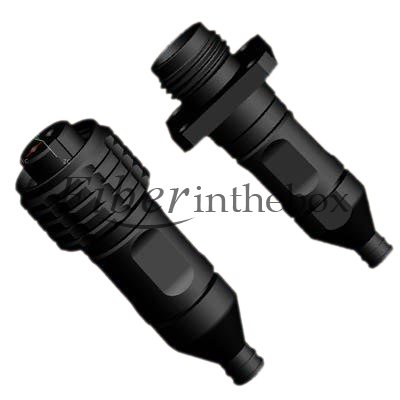

ODC-2 Outdoor Connector Plug/Socket
Applications
ODC connector is next generation connectors for wireless base station application (WCDMA/TD-SCDMA/CDMA200/Wi-MAX/GSM) that can meet the requirements of FTTA (fiber to the top of the tower). We developed ODC connector's base on special connectors craft, our ODC connector's interface can be compatible with the mainstream of the current global supplier of ODC connector.
Features
2 fibers，singlemode or multimode Compact design with 2×1.25mm ferrules Built-in socket with square or hexagonal flange Extension connector for cable chaining Screwed locking mechanism Easy and safe intallation Water proof,dust proof and corrosion resistant Water proof protection caps EMI protected RoHs compliant Fulfills performance standard IEC 61753-1 Cat.ECable Length: 1MConnector: ODC socket to ODC socket
Specifications
| Technology | Full ceramic ferrule and sleeve | |
| Housing material | Nickel plated brass | |
| Mechanical performance | ODC plug | ≤1000 N tensile load≤30 N static side load |
| ODC socket | ≤30 N tensile load | |
| Installation torque force | min.1Nm | max.2Nm |
| Operating temperature | IEC 61300 – 2 - 22 | -40℃ up to +85℃ |
| Mating durability | 1000 cycle | |
| Ingress protection(mate) | IEC60529 | Ip 68 |
| Salt mist | IEC61300-2-26 | 30 days passed |
| Vibration | IEC61300-2-1 | Pass 10-500Hz/10g |
| Shock | IEC61300-2-9 | Pass 100g |
Optical Performance
|
Inse ion loss IEC61300-3-34 |
Singlemode | Typ. ≤0.30dB | 97% ≤0.45dB |
| Multimode | Typ. ≤0.30dB | 97% ≤0.50dB | |
| Return loss | Singlemode | ≥50dB |
