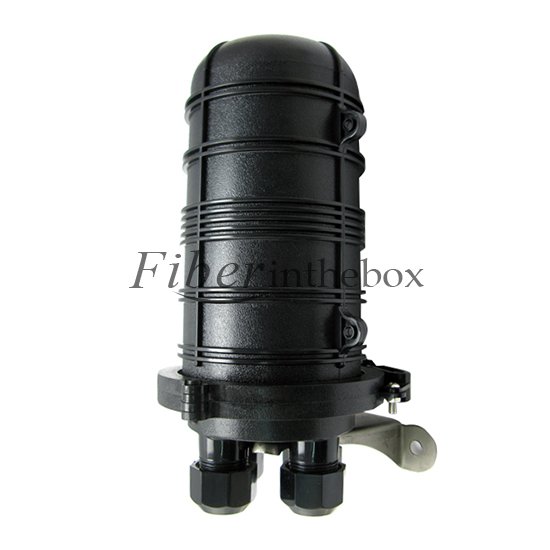

Basic structure and configuration
Dimension and capacity;
| Outside dimension (LxD) |
288mm×178mm |
|
Weight (excluding outside box) |
1800g-1910g |
|
Number of inlet/outlet ports |
4 |
|
Diameter of fiber cable |
Φ8mm - Φ16mm |
|
Capacity of FOSC |
Bunchy: 4—48(fibers) |
|
|
Main components
|
No. |
Name of components |
Quantity |
Usage |
Remarks |
|
1 |
FOSC cover |
1 piece |
Protecting fiber cable splices in whole |
Internal diameter: |
|
|
|
|
|
355 ×150(mm) |
|
2 |
Fiber optic splice tray (FOST) |
Max. 6 trays (bunchy) Max. 4 trays (ribbon) |
Fixing heat shrinkable protective sleeve and holding fibers |
Suitable for: Bunchy:12,24(cores) Ribbon:6 (pieces) |
|
3 |
Fiber holding tray |
1 pcs |
Holding fibers with protective coat |
|
|
4 |
Foundation |
1 set |
Fixing fiber cable, reinforced core and FOST |
|
|
5 |
Base |
1 set |
Fixing internal and external structure |
|
|
6 |
Seal fitting |
1 pieces |
Sealing between FOSC cover and base |
|
|
7 |
Pressure testing valve |
1 set |
After injecting air, it is used for pressure testing and sealing testing |
Configuration as per requirement |
|
8 |
Earthing deriving device |
1 set |
Deriving metallic parts of fiber cable in FOSC for earthing connection |
Configuration as per requirement |
Main accessories and special tools
|
No. |
Name of accessories |
Quantity |
Usage |
Remarks |
|
1 |
Heat shrinkable protective sleeve |
|
Protecting fiber splices |
Configuration as per capacity |
|
2 |
Nylon tie |
|
Fixing fiber with protective coat |
Configuration as per capacity |
|
3 |
Heat shrinkable fixing sleeve (single) |
|
Fixing and sealing single fiber cable |
Configuration as per requirement |
|
4 |
Seal tape |
|
Fixing and sealing mass of fiber cable |
Configuration as per specification |
|
5 |
Branching clip |
|
Branching fiber cables |
Configuration as per requirement |
|
6 |
Earthing wire |
1 piece |
Putting through between earthing devices |
|
|
7 |
Desiccant |
1 bag |
Put into FOSC before sealing for desiccating air |
|
|
8 |
Labeling paper |
1 piece |
Labeling fiber |
|
|
9 |
Special wrench |
1 pieces |
Tightening nut of reinforced core |
|
|
10 |
Metal hoop |
1 set |
For wall mounting and pole hugging |
|
|
11 |
Buffer tube |
To be decided by customers |
Hitched to fibers and fixed with FOST, managing buffer |
Configuration as per requirement |
|
12 |
Aluminum-foil paper |
1 piece |
Protect the bottom of FOS |
|
