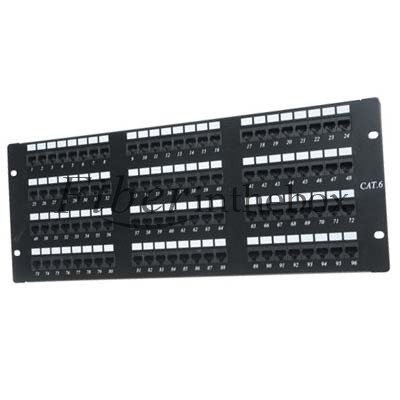

96 Po s Cat6 Patch Panel for Networking 4U
A patch panel is a block which contains numerous RJ45 po s. Patch panels are used for connecting incoming and outgoing lines of a local area network (LAN) or a telecommunication system. In a LAN the patch panel connects the networks computers to each other and any switches or hubs with patch cables. Patch panels also give the benefit of organization for a clean install.The panel itself is 96 po s and made of solid 16 gauge steel with rounded edges. Jack adapter contacts are made of gold plated brass while the termination contacts are steel plated nickel for optimal performance. The jacks also sit flush on the panel face, eliminating cable snags. These are not only ideal for speed & efficiency, but also for organization performance. Primus Cable Patch Panels feature unique cable management clips that make wiring and 110 punchdown termination easier.
Key Features
Installation instructions, cable ties, cable clips, mounting screws included Designed for use with CAT6 Patch Cables TIA/EIA 568a and 568b 110 Style Punch down UL Listed
Specifications
Panel: 1.5mm SPCC, Black Paint RJ45 Housing: ABS, UL 94V-0 RJ45 Contact Material: 50µ" Nickel-plated Phosphor Bronze RJ45 Contact Bracket: PC, UL 94V-2 Transparent Contact Area: Min.3mm 50µ Gold PlatingJack Bracket Set: ABS, UL-94V-0IDC Housing: PC+Glass Fiber, UL 94V-2IDC Terminal Material: Tin-plated Phosphor BronzeIDC Durability: Max. 200 punching timesTool Compatibility:110 & Krone toolSize Compatibility: 22-26AWG Stranded/Solid Inse ion Force: 20N maxRetention Strength: 7.7 kgs between Jack and PlugOperating Temperature : -10°C to 60°C
Applications
Designed for use with CAT6 Patch CablesConnecting incoming and outgoing lines of LAN or a telecommunication system
