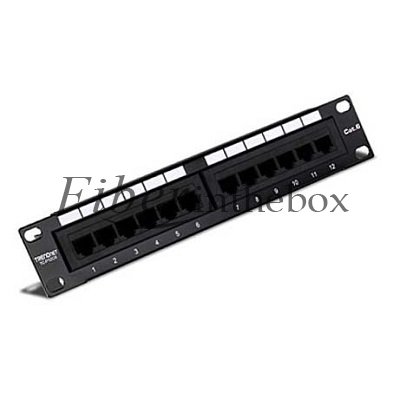

12 Po s Cat6 Patch Panel for Networking 1U
A patch panel is a block which contains numerous RJ45 po s. Patch panels are used for connecting incoming and outgoing lines of a local area network (LAN) or a telecommunication system. In a LAN the patch panel connects the networks computers to each other and any switches or hubs with patch cables. Patch panels also give the benefit of organization for a clean install.The panel itself is made of solid 16 gauge steel with rounded edges, and jack adapter contacts are made of gold plated brass while the termination contacts are steel plated nickel for optimal performance. The jacks also sit flush on the panel face, eliminating cable snags. These are not only ideal for speed & efficiency, but also for organization performance.
Key Features
Designed for use with CAT6 Patch Cables TIA/EIA 568a and 568b 110 Style Punch down UL Listed Cable Ties, Screws included
Specifications
Panel: SECC with Black Paint RJ45 Housing: PBT, UL 94V-0 RJ45 Contact Material: Phosphor Brnz w/Nickel Plating Contact Area: Min.3mm 50µ Gold Plating Jack Bracket Set: ABS, UL-94V-0, BlackIDC Housing: PC, UL 94V-2IDC Terminal Material: Phosphor Bronze w/Tin Lead Plating over NickelIDC Durability: Max. 200 punching timesTool Compatibility:110 & Krone toolSize Compatibility: 22-26AWG Stranded/SolidInse ion Force: 900 gms for 8 conductorsRetention Strength: 7.7 kgs between Jack and PlugOperating Temperature : -40°C to 80°C
Applications
Designed for use with CAT6 Patch CablesConnecting incoming and outgoing lines of LAN or a telecommunication system
